Part Number: SG-SFP-560A2

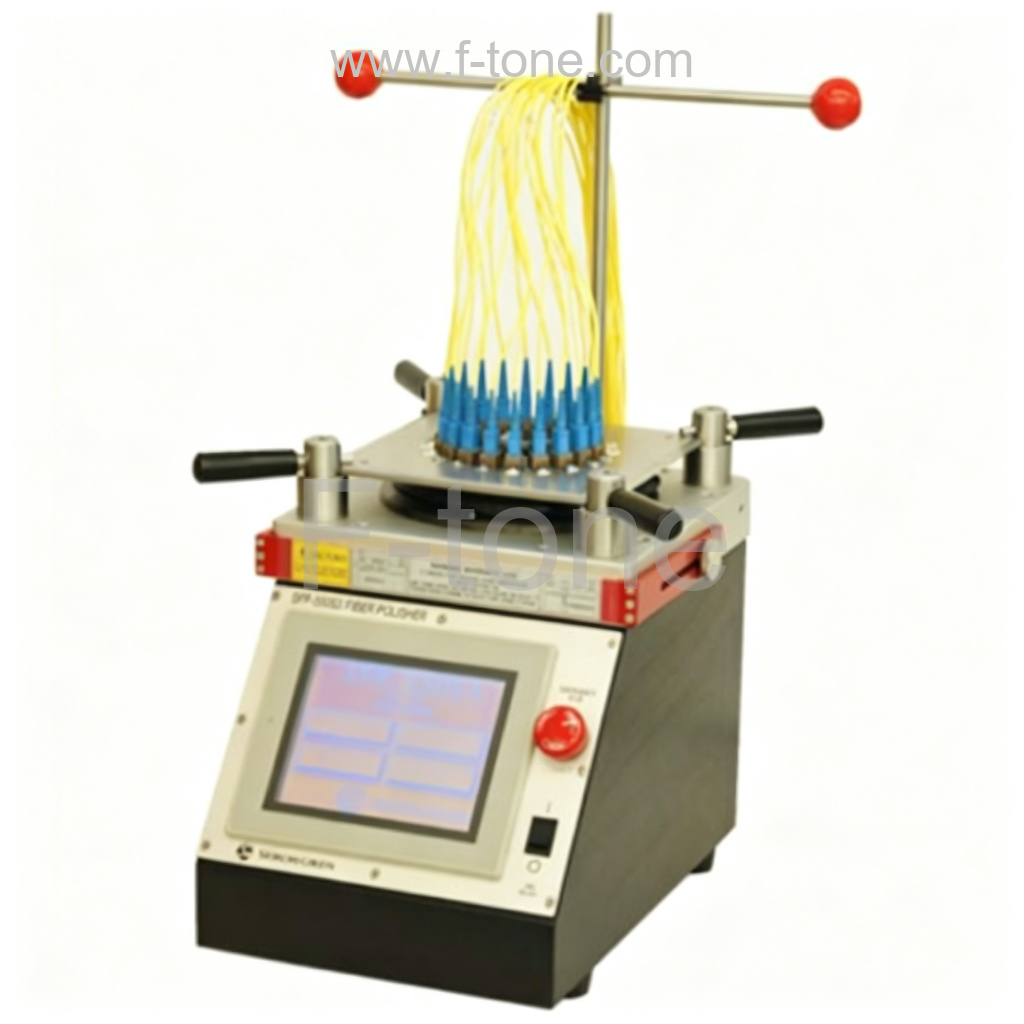

Seikoh Giken SFP-560A2 Fiber Polishing Machine
Seikoh Giken’s SFP-560A2 provides high volume assemblers with an ultraruggedized polisher for 24/7/365 operation. Mechanical durability, low operationalcosts and reduced maintenance requirements offer near zero downtime.
The SFP-560A series fiber polisher is Seikoh Giken’s newest premium production polisher and the first in the marketplace to incorporate our patent pending Dynamic Pressure Control (DPC) pressurization system.
The unique DPC pressure technology offers a mass production platform incorporating highly stable, widely variable precision pressure control to the polishing Turntable. The pressure is applied from the bottom to the top. Moreover, SG’s advanced micro machining design guarantees polishing with perfect parallelism between the polisher's turntable and the rigidly clamped polishing holder by the 4 corners.
Combining proprietary bottom-up pressurization, precision speed & pressure control and rigid fixture parallelism, the SFP-560A series – while in DPC mode - realize epoxy removal of multi-fiber ferrule done by the SFP-560A series polisher and perform multi-fiber polishing similar in simplicity to standard single fiber connector polishing.
Incorporating the 4 Corner Clamp Post locking system from the Legacy SFP-550 series, the SFP-560A series polisher provides a wide range of benefits to the user ; 1) Backwards compatible with the full range of SFP-550 series IPC polishing holders*, 2) Open overhead work space for creative cable handling solutions for multi-fiber, large O.D cables.
Additional features include
1) Programmable polishing process up to 60 processes,
2) Four (4) multi-timers for manual polishing operation,
3) High Contrast, waterproof LCD Display with multi-language programming operation (ENG-CHN-SPN-JPN),
4) Selectable, password protected programming and operations modes for both administrators and users
5) Polishing program loading by optional barcode scanner
6) Operation and Maintenance Data metrics transfer via USB interface.
The following models are available for the SFP-560A series and both models are inclusive of all the above mentioned features.
| SFP-560A2 | having manual clamping levers |
|---|---|
| SFP-560A2C | having auto-clamping for less operator dependency |
* IPC fixture / holders are polished in IPC mode.
| Application | Mass production |
| Pressure Source | Pressurized air |
| Dimensions | W240xD370xH300mm |
| Weight | 22Kg |
| Input Voltage | 100-240 VAC, 50/60Hz |
| Polishing Capacity(maximum) | 54 |
| # of max programmable process | 60 |
| # of max steps in one process | 8 |
| Speed of Turntable | Rotation : 0.7-2rpm (auto) Revolution : 70 - 200rpm |
| Pressure Control | 2N to 200N (Approx. 0.5 to 45lb) in DPC mode |
| Connector Type | φ2.5mm PC, APC φ1.25mm PC, APC MT, mini-MT, Fiber Array |
