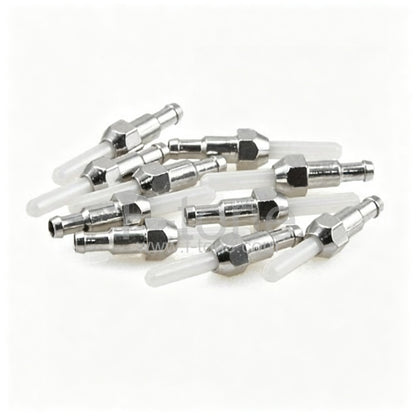

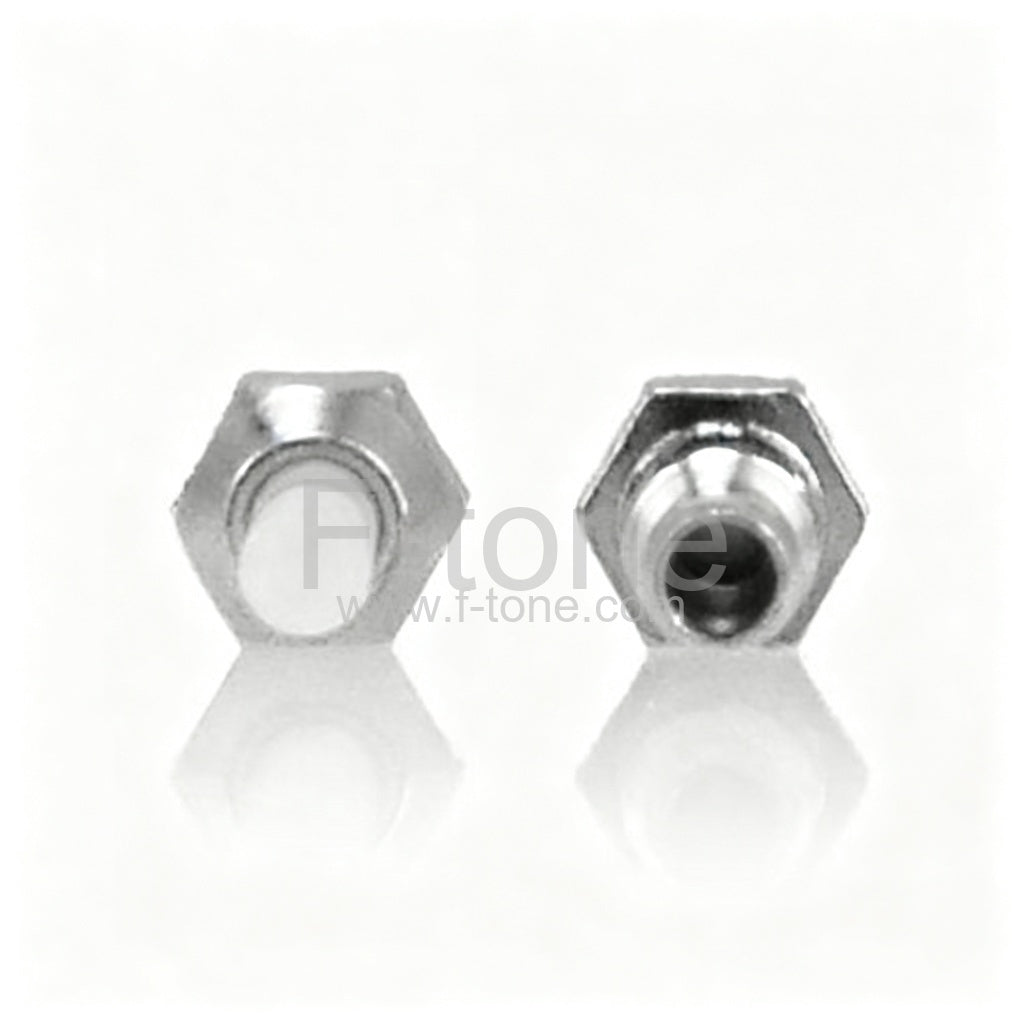

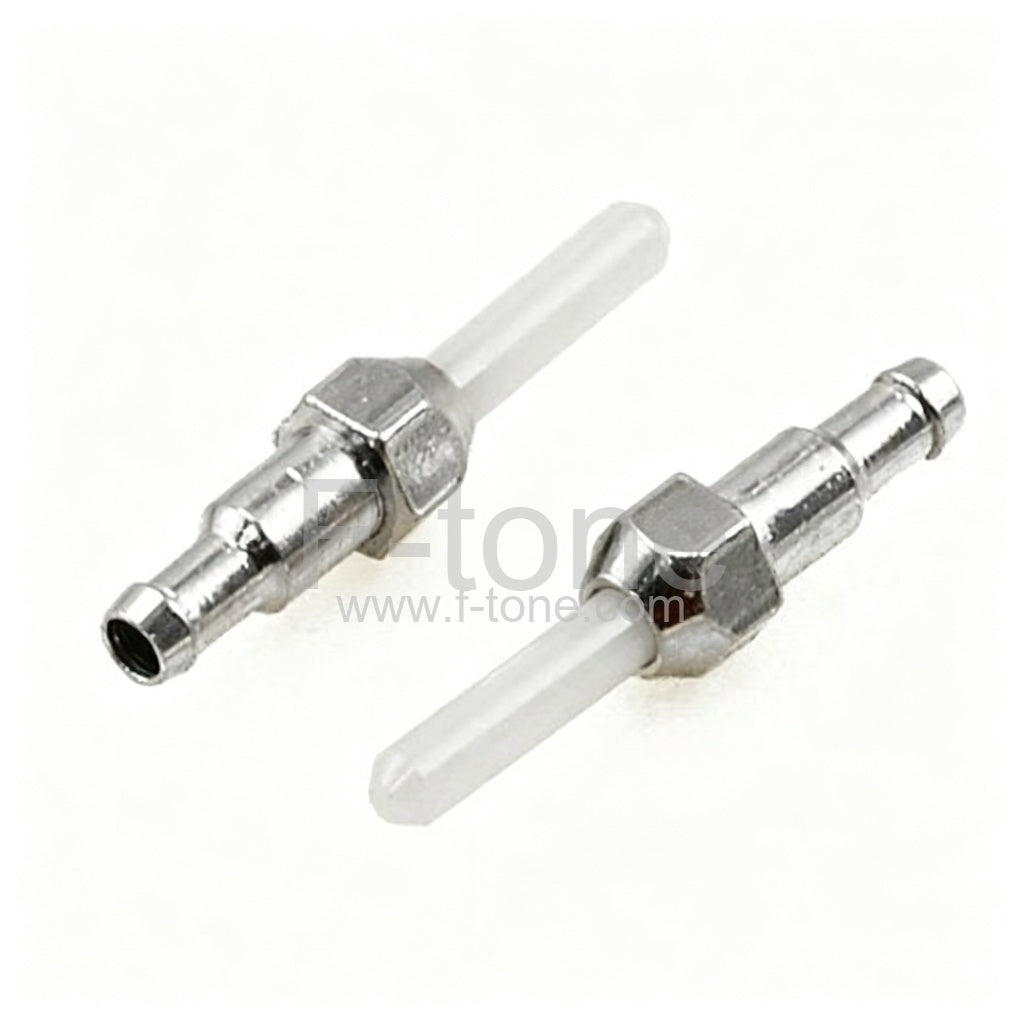

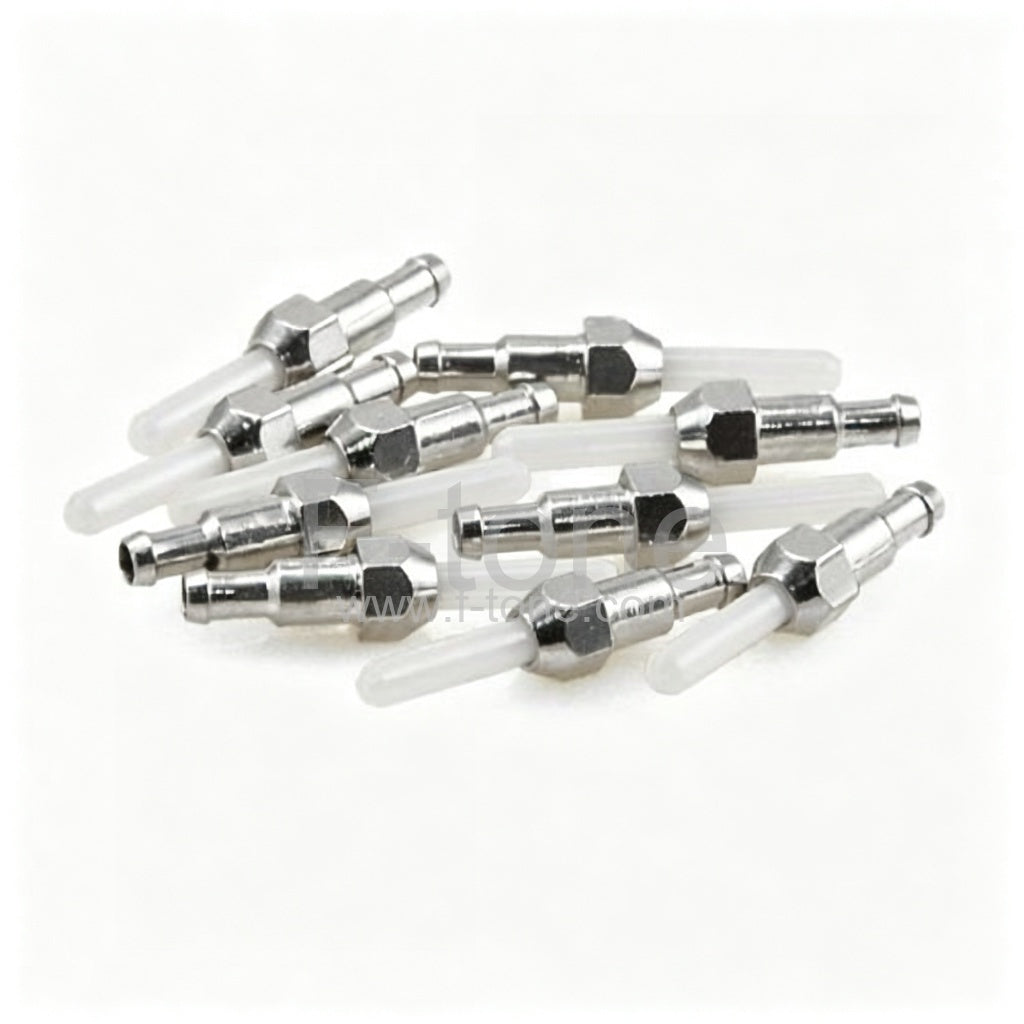

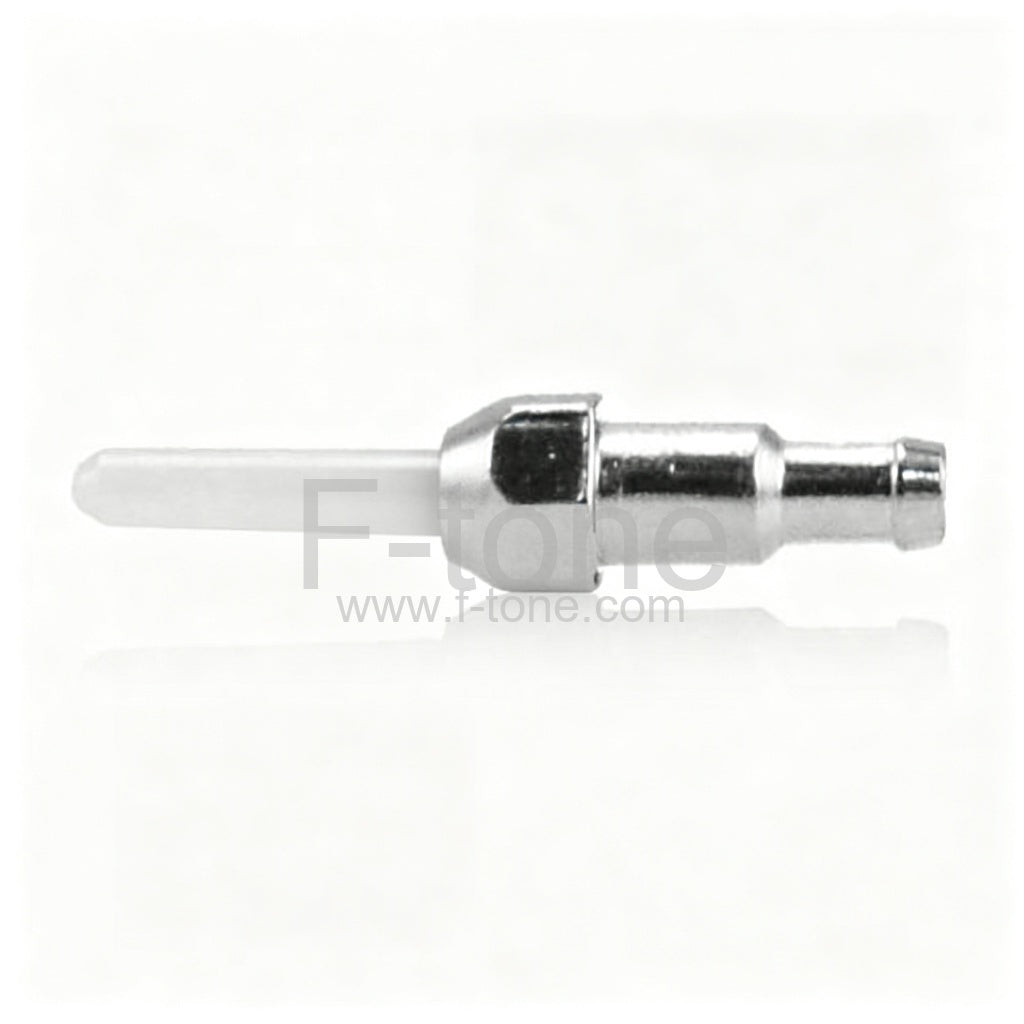

1.25mm OD Single-mode Ceramic Ferrule for LC Fiber Connector 0.3um

1.25mm OD Single-mode Ceramic Ferrule for LC Fiber Connector 0.3um

View full details

Part Number: SM-LC-03-FM

1.25mm OD Singlemode Ceramic Ferrule for LC fiber Connector 0.3um Concentricity

Specification:

  • Outer diameter: （1.2499±0.0005）mm
  • Inner diameter: (0.125+0.001/-0）mm
  • Concentricity: 0.3μm
  • Insertion loss:≤0.2dB
  • return loss:≥60dB
  • length:（6.50±0.05）mm

Features:

  • Good compatibility
  • Accurate mechanical dimensions
  • Good reliability and stability
  • Compliant with RoHS, Bellcore, IEC

Application:

  • Telecommunication
  • CATV
  • LAN (including FTTx)
  • Data network


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
