Part Number: SM-LC-LC-DX-FM

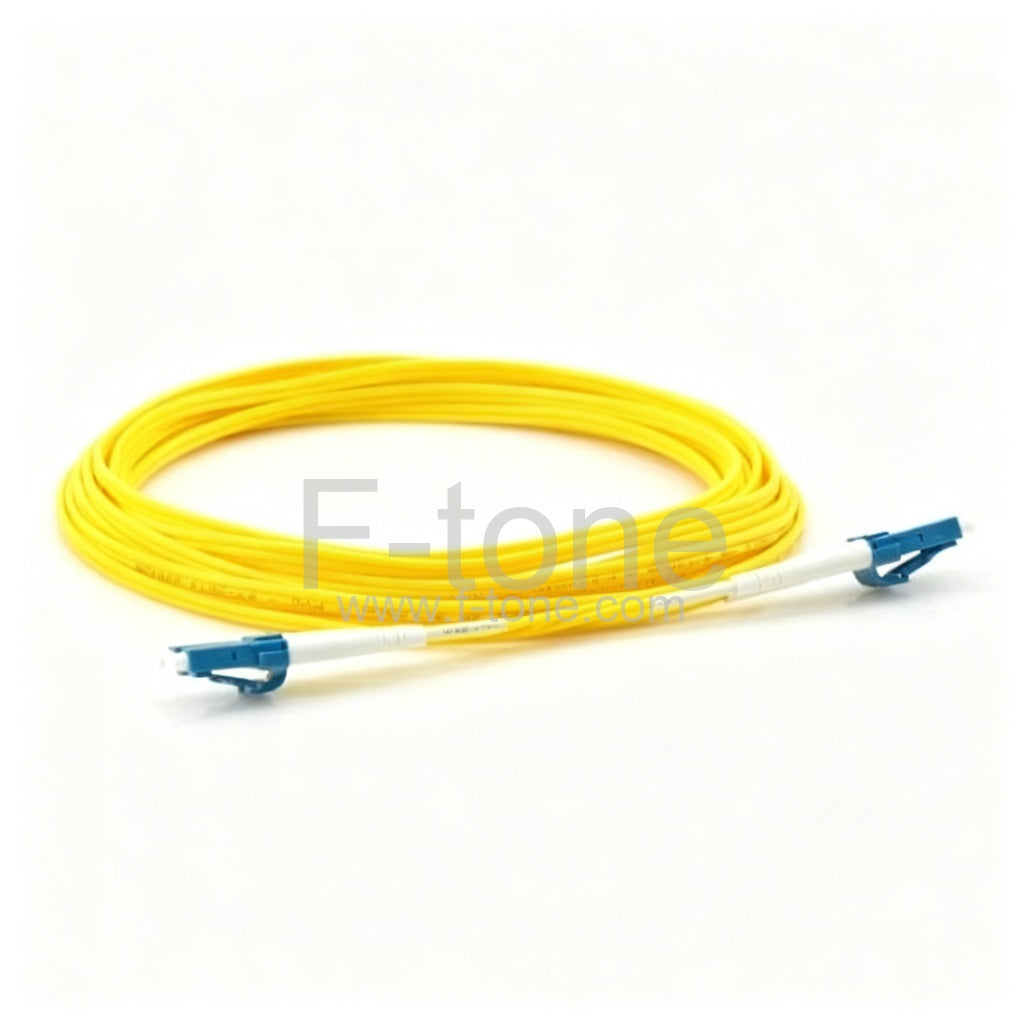

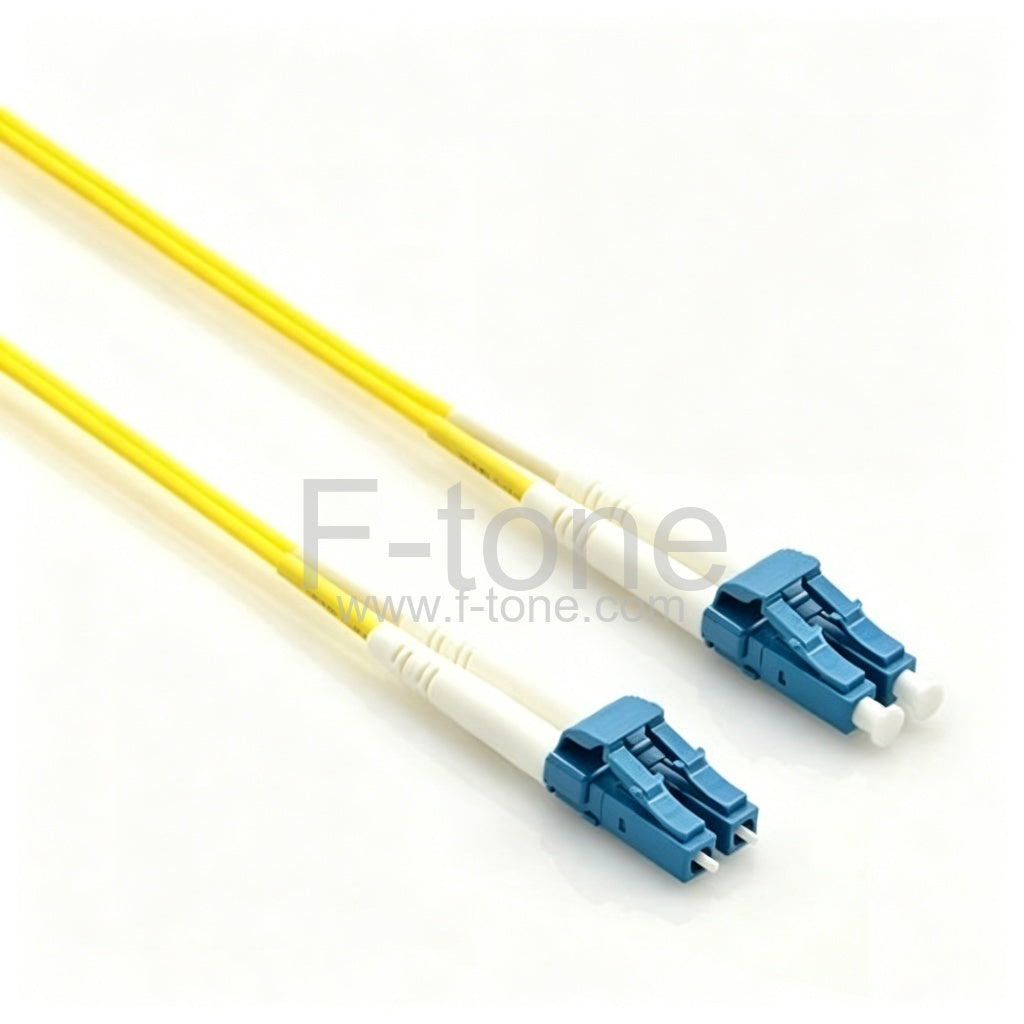

LC UPC to LC UPC Duplex 9/125um Singlemode LC Fiber Cable, Duplex LC Patch Cable
Fiber Patch Cables also known as fiber jumpers or fiber patch cords. Fiber optic LC patch cable is one of most commonly used components in fiber optic network.Buy Duplex LC Fiber Cable, Buy Duplex LC Cable at F-tone.com
The Definition of 'mode' as in multimode refers to the transmitting mode of the fiber optic light in the fiber optic cable core.
Singlemode fiber optic patch cables send one light signal at a time, and can be used for longer runs than multimode because they have more resistance to attenuation. Buy LC Cable at F-tone
The core of a single mode fiber optic cable is 9/125μ (micron).
Single mode fiber optic patch cables can support gigabit ethernet applications for up to 10 kilometers.
Key Features
- LC-LC Connectors
- Singlemode Duplex fiber optic cable
- Micron: 9/125um
- Complete with Lucent Technologies aqua jacket
- Bandwidth transmitting rates up to 10 gigabits
- All of our fiber optic patch cables feature the high degree connectors
- 100% optically tested to ensure high performance
- Color: Yellow
Specifications
| Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Singlemode | Multimode | Singlemode | Multimode | Singlemode | Multimode | Singlemode | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Wavelength | nm | 1310, 1550 | 1310, 1550 | 1310, 1550 | 1310, 1550 | ||||||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Custom & OEM
F-tone is manufacturer and supplier of fiber optic cable, fiber patch cable. If you have any special requirement, Please contact us by email to [email protected]
1. Customize Jacket Materials
| PVC | OFNP | LSZH | OFNR |
2. Customize Cable Color
| Red | Blue | Grey | Purple |
3. Customize Cable Connector
| D4 | SMA905 | VF45 | MU |
4. Customize Cable Length
| 5M | 10M | 50M | 100M |
5. OEM Label, Printing and Boot Color
NOTE: If you need customize others, welcome to contact [email protected]
Fiber Type vs. Speed and Distance - Help you choosing the right Fiber Optic Cable Type
| Designation | Core/Cladding Diameter(um) |
Type | Gigabit Ethernet Distance(meters) |
10 Gigabit Ethernet Distance(meters) |
|---|---|---|---|---|
| OM1 | 62.5/125 | Multimode | 300 Meters at 850 nm 600 Meters at 1310 nm |
33 Meters at 850 nm 300 Meters at 1310 nm |
| OM2 | 50/125 | Multimode | 600 Meters at 850 nm 600 Meters at 1310 nm |
82 Meters at 850 nm 300 Meters at 1310 nm |
| OM3 | 50/125 | Multimode | 1000 Meters at 850 nm 600 Meters at 1310 nm |
300 Meters at 850 nm 300 Meters at 1310 nm |
| OM4 | 50/125 | Multimode | 1040 Meters at 850 nm 600 Meters at 1310 nm |
550 Meters at 850 nm 300 Meters at 1310 nm |
| SM | 9/125 | Singlemode | 5 km at 1310 nm 5 km at 1550 nm |
10 km at 1310 nm 10 km at 1550 nm |
