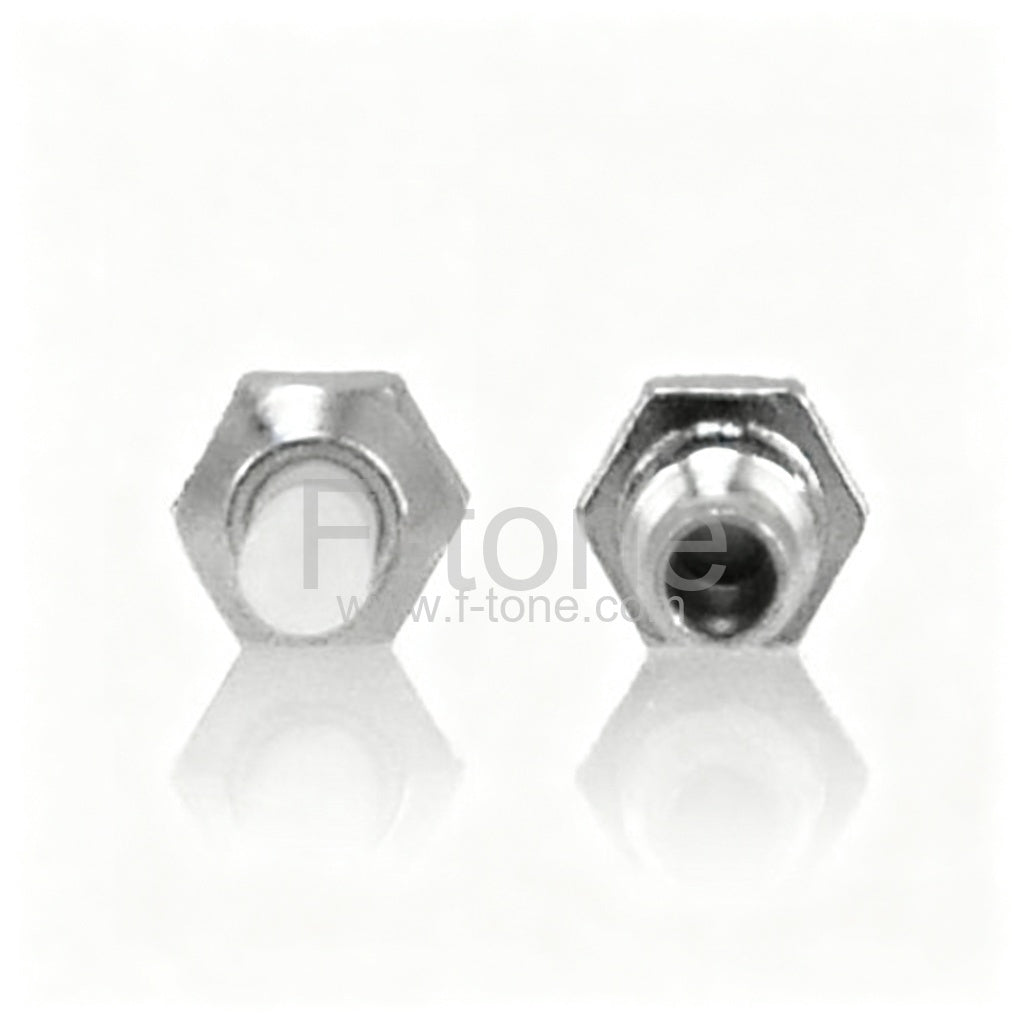

1.25mm OD Singlemode Ceramic Ferrule with flange LC Connector 0.5um Concentricity

1.25mm OD Singlemode Ceramic Ferrule with flange LC Connector 0.5um Concentricity

View full details

Part Number: SM-LCA-CF-05-FM

1.25mm OD Single-mode Ceramic Ferrule with flange for LC Fiber Connector 0.5um Concentricity

Specification of Ceramic Ferrules:

  • Outer diameter: 1.2499±0.001mm
  • Inner diameter: 0.126±0.001mm
  • Concentricity: 0.5 μm
  • length: 6.50±0.01 mm
  • Insertion loss:≤0.2dB
  • return loss:≥60dB

Features:

  • Good compatibility
  • Accurate mechanical dimensions
  • Good reliability and stability
  • Compliant with RoHS, Bellcore, IEC

Application:

  • Telecommunication
  • CATV
  • LAN (including FTTx)
  • Data network

Note:

This product is Ferrule Assembly with Flange


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
