Part Number: SM-LCU-LCU-DX-B-5M-PVC

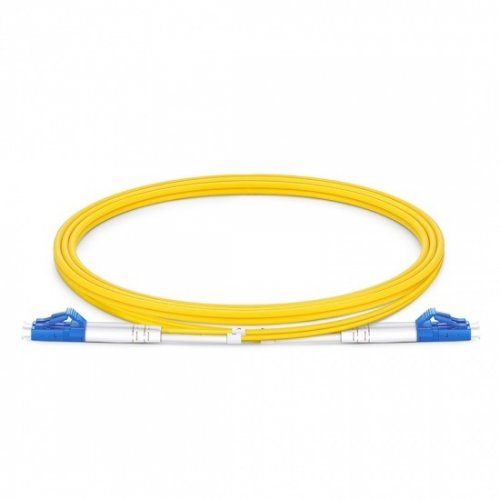

5M LC UPC to LC UPC Duplex 2.0mm PVC(OFNR) 9/125 SingleMode Ultra Low Loss Fiber Patch Cable - Yellow
High Density LC-HD Ultra Low Loss Fiber Optic Patch Cable is a totally unique design which can increase panel density to its highest possible, and the lever design utilizes a flexible "push-pull tab" allowing for the connector to be disengaged easily from densely loaded panels without the need for special tools, allow users easy accessibility in tight areas when deploying in data center applications.
| Connector | LC to LC | Jacket OD | 2.0mm |
|---|---|---|---|
| Fiber Mode | 9/125 um | Jacket Color | Yellow |
| Polish | UPC to UPC | Wavelength | 1310/1550nm |
| Fiber Type | Duplex G657A1 | Jacket Material | PVC |
| Insertion Loss | 0.12dB | Interchangeability | 0.1dB |
| Return Loss | 50dB | Vibration | 0.1dB |
| Operating Temperature | -40~75C | Storage Temperature | -45~85C |
Features and Application
Custom and OEM
1. Customize Jacket Materials
| PVC | OFNP | LSZH | OFNR |
2. Customize Cable Color
| Red | Blue | Grey | Purple |
3. Customize Cable Connector
| D4 | SMA905 | VF45 | MU |
4. Customize Cable Length
| 5M | 10M | 50M | 100M |
5. OEM Label, Printing and Boot Color
NOTE: If you need customize others, welcome to contact [email protected]
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
