1M Military Grade Cable Single mode 9/125 Duplex SC Fiber Optic Patch Cables

1M Military Grade Cable Single mode 9/125 Duplex SC Fiber Optic Patch Cables

View full details

Part Number: SM-SC-DX-MG

1M Military Grade Single mode 9/125 Duplex SC Fiber Optic Patch Cables (MOQ:1KM)

Military Grade fiber optic patch cables are built with specialized Military Tactical fiber cable that features impact and crush resistance characteristics which comply with Military requirements. Additionally, these robust assemblies are rated for operating temperatures of -40º to +75º Celsius. Three versions are available including Duplex ST, SC and LC styles. These assemblies are excellent for use in military vehicles and with field deployed communications equipment.

NOTE:This price on the website is for 1M length,please feel free to enquiry us for the other length standard

Characteristics

  • Used to connect communications equipment that utilize ST, SC or LC OM1 62.5/125 Multimode fiber interfaces
  • Cable meets Military requirements for crush and impact resistance & rugged Polyurethane jacket protects against cuts, abrasions and chemicals
  • Impact Resistance: EIA/TIA-455-25, (Military Req.) Crush Resistance: EIA/TIA-455-41, (Military Req.)
  • Multiple off the shelf lengths provide design flexibility and F-tone's Custom Cable Configurator can be used to create your own lengths and/or connector combinations
  • The connector are stainless steel bodies which resist rust and corrosion

Applications

  • Military networks
  • Industrial Ethernet
  • Harsh environment applications
  • Combat vehicles

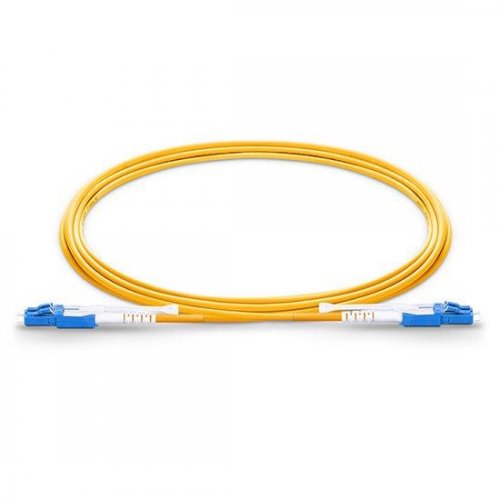

Sample Picture


Mechanical Drawing

Specifications

Technical Parameters
Cable Count Outside
Diameter		 Tight buffer
Diameter		 Weight Minimum allowable
Tensile Strength
(N)		 minimum allowable
Crush Load
（N/100mm)		 Minimum Bending
Radius
(MM)		 Storage
temperature
（MM) （MM) （KG) short term long term short term long term short term long term （℃）
04 4.0 0.9 12.00 600 200 1000 200 20D 10D -20+60


Optical Characteristics
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A、B、C、D） B1.1:Conventional fiber
G.653 B2: Zero dispersion shifted
G.654 B1.2 :Cut-off wavelength shifted
G.655 B4: Main technical data for positive
dispersion shifted single-mode fiber



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
