Part Number: SM-SC-SC-TDX-FM
SC-SC Duplex Single-mode (9/125) Tracer fiber patch cord
Tracer fiber patch cord offers quick and accurate method of identifying the termination point of optical patch cords. Each end of Tracer fiber patch cord features a flashing light allowing technicians to visually trace individual patch cords from one end to another without pulling or affecting the patch cord. We can provide special power sources which is easily attached to the Tracer fiber patch cord. This causes the LED on each end to begin flashing 30s and stay in lit.
Fiber Patch Cord Tracer must be working with the power driving to identify the exactly cable.
Characteristics
- Main function: tracking fiber patch cords
- Fiber Type:Single-mode (9/125)
- Connector Type:FC-FC
- Easy and Quick identification
- Not effect patch cord function
- No need to pre-labeling
- Low insertion loss
- High return loss
- LED light blinks every 2 seconds, and persists after 30 seconds
- Simultaneous visual and acoustic trace
- Economical and User-friendly
- Good repeatability,changeability and temperature stabilization
Applications
- WANs, LANs, CATV
- Telecommunications
- Optical Networks
- Testing /Measurement Instruments
- Fiber to the Home
Specifications
- IL: 0.25dB
- Max Crush Strength: 300N(ψ3.0)
- Conducting Distance: 300 M/3V
- Temperature: -30ºC~80ºC
- RL: ≥50dB
- Insertion times: 500
- Repeatability: ≤0.1dB

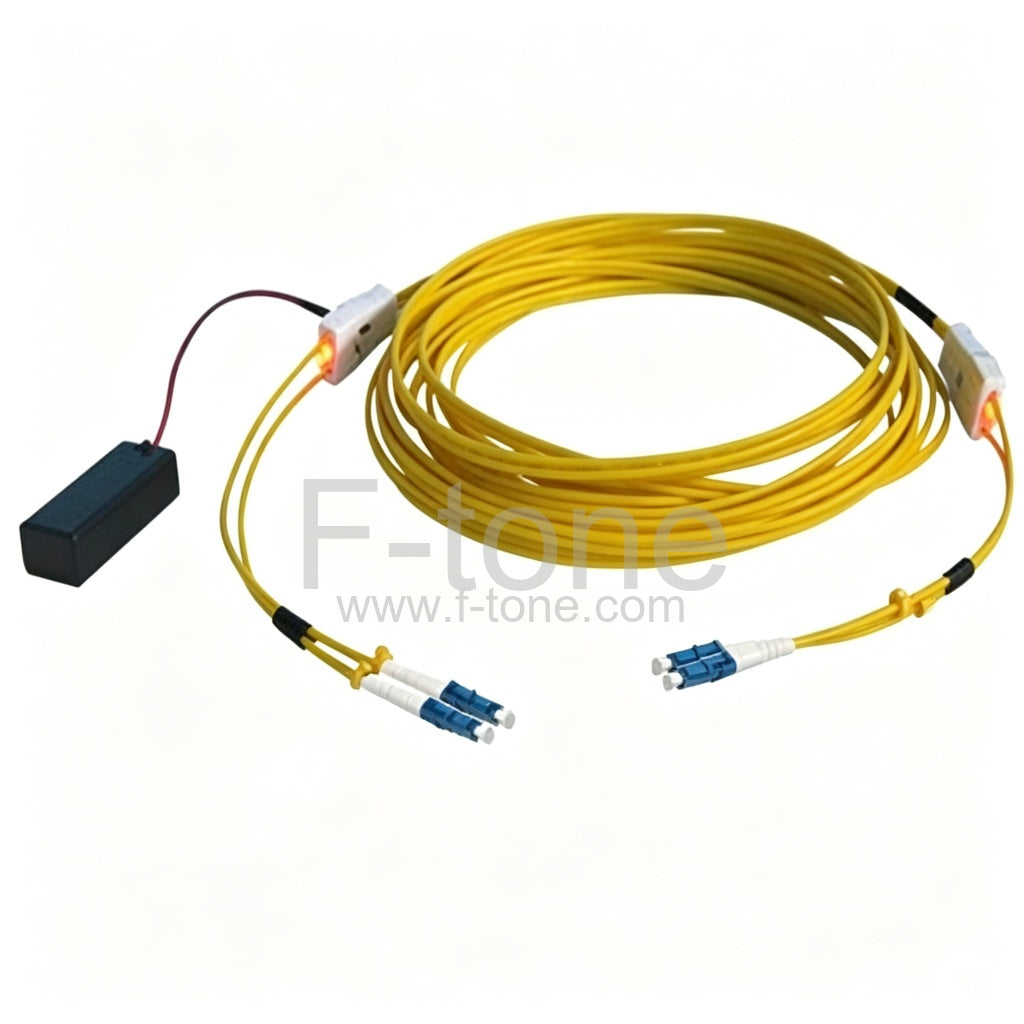

Sample Picture
F-tone is an professional manufacturer & supplier of Fiber Patch Cord Tracer, it could be customized in any length. If you have any question about it,please feel free contact us at [email protected]
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
