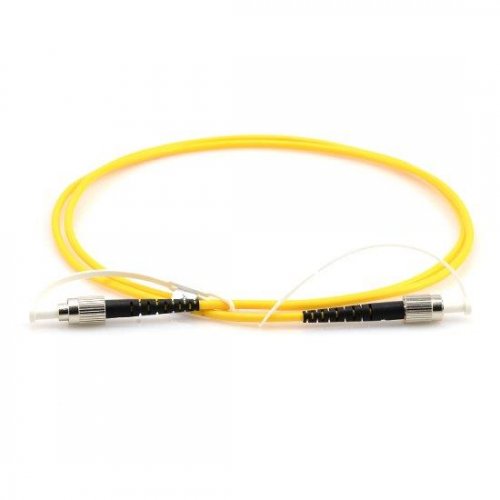

HP780 Fiber Patch Cable Singlemode 780-HP 1M FC APC

HP780 Fiber Patch Cable Singlemode 780-HP 1M FC APC

View full details

Part Number: SM780-HP-FCA-X

780nm SM Fiber Patch Cord FC APC to FC APC SM 780-HP Fiber Patch Cable

780nm optical fiber patch cords are widely used in polarization sensitive fiber optical systems for transmission of light that requires the 780nm wavelength state to be maintained.


F-tone provides 780-HP patch cords at two different wavelengths, including 630nm, 530nm. Our 780-HP patch cord features high extinction ratio, low insertion loss, high return loss and long term reliability.

This price on the website is for 1M length,please feel free to enquiry us for the other length standard

Festures

FC-FC Connectors
Typical Return Loss: UPC type: ≥50 dB; APC type: ≥55 dB
Ceramic 8° Angled Ferrules (APC)
Ø0.9/2.0/3.0mm Protective Outer Jacket
Low insertion loss
Excellent repeatability and changeability
Each patch cable is manufactured and tested to ensure its quality to meet the highest standard.

Applications

Optical fiber communication systems

Optical component test and manufacturing

Optical sensor systems

Specifications

Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 1310,1550 1310,1550 1310,1550 1310,1550
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature ℃ -40~75 -40~75 -40~75 -40~75
Storage temperature ℃ -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
