Part Number: SMC-1110-SS20D

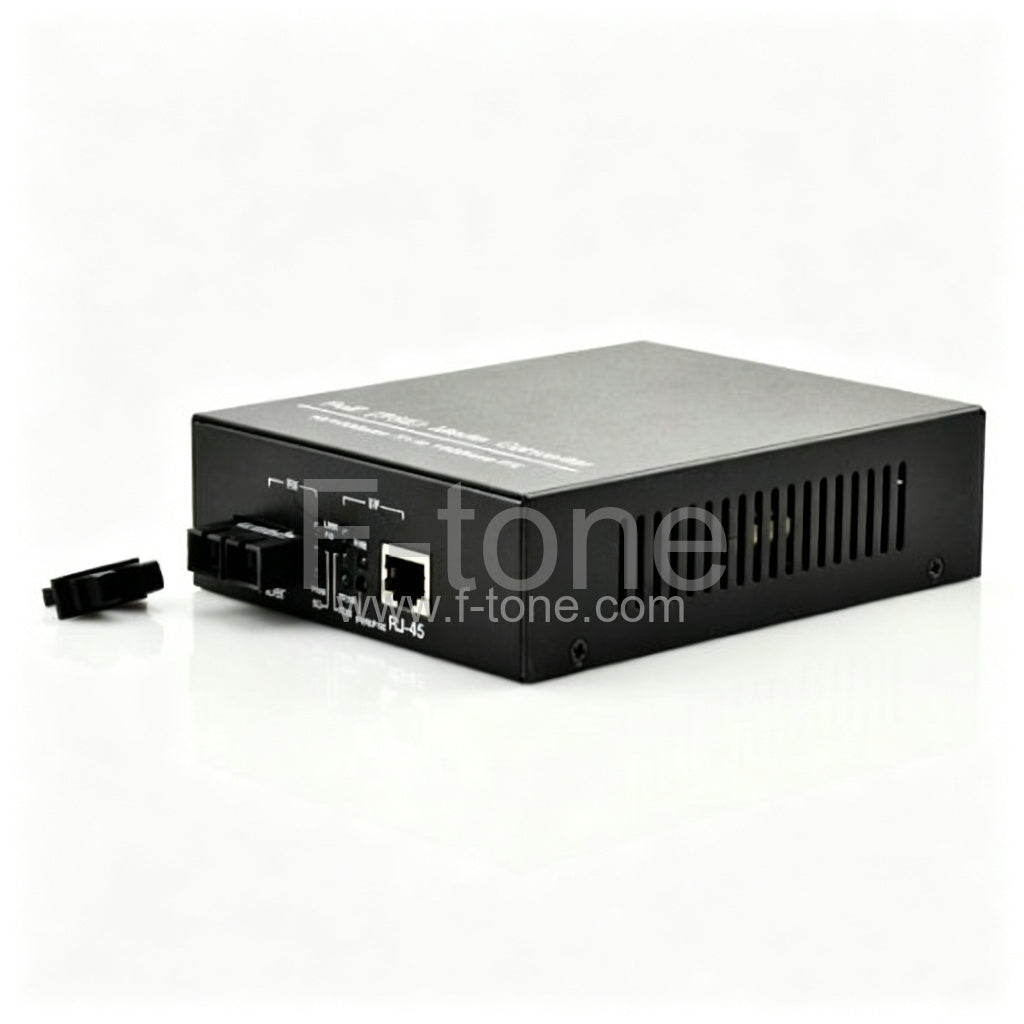

20km 10/100/1000M Single Fiber 1550nmTx/1310nmRx Centralized Management Standalone Media Converter SMC-1110-SS20D
Managed media converter equips with remote Web /SNMP (Simple Network Management Protocol) interface, enables network administrators to easily monitor and setup the converter, the transmission speed and duplex through web/SNMP browsers. Mostly suitable for those environments requiring a medium to large-scale deployment of media converters, a centralized platform that simplifies the configuration, administration, monitoring, and troubleshooting of this gear is recommended. Managed 10/100/1000 Ethernet media converter modules is the smart choice for IT professionals.
F-tone provides kinds of Manged media converters. To make things easy, F-tone offer comprehensive system for this managed media converters which include the card type insert in managed chassis, Standalone unit at customer side and 17 slots Rack Chassis.
If you can’t find what you are looking for, please contact us.
Key Features
Note: Port Base VLAN is optional, please contact [email protected] for more details.
- 10/100/1000Base-T(X) to 1000Base-FX Centralized Converter
- Built-in power supply, without power adapter
- Supports Full/Half Duplex, auto-negotiation, MDI/MDI-X on TX ports
- Configurable through console, Web or SNMP
- Support Vlan and QoS
- Reliable and stable performance
- Free fall, Shock and Vibration Stability
- Standard: Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
Specification
- UTP port: 1-ports RJ45
- UTP Rate: 10/100/1000Mbps
- Fiber Rate: 1000Mbps
- Fiber Port: Simplex SC, ST, FC, SFP available
- Fiber Wavelength: 1550nmTx/1310nmRx
- Fiber Mode: Singlemode
- Distance: 20km

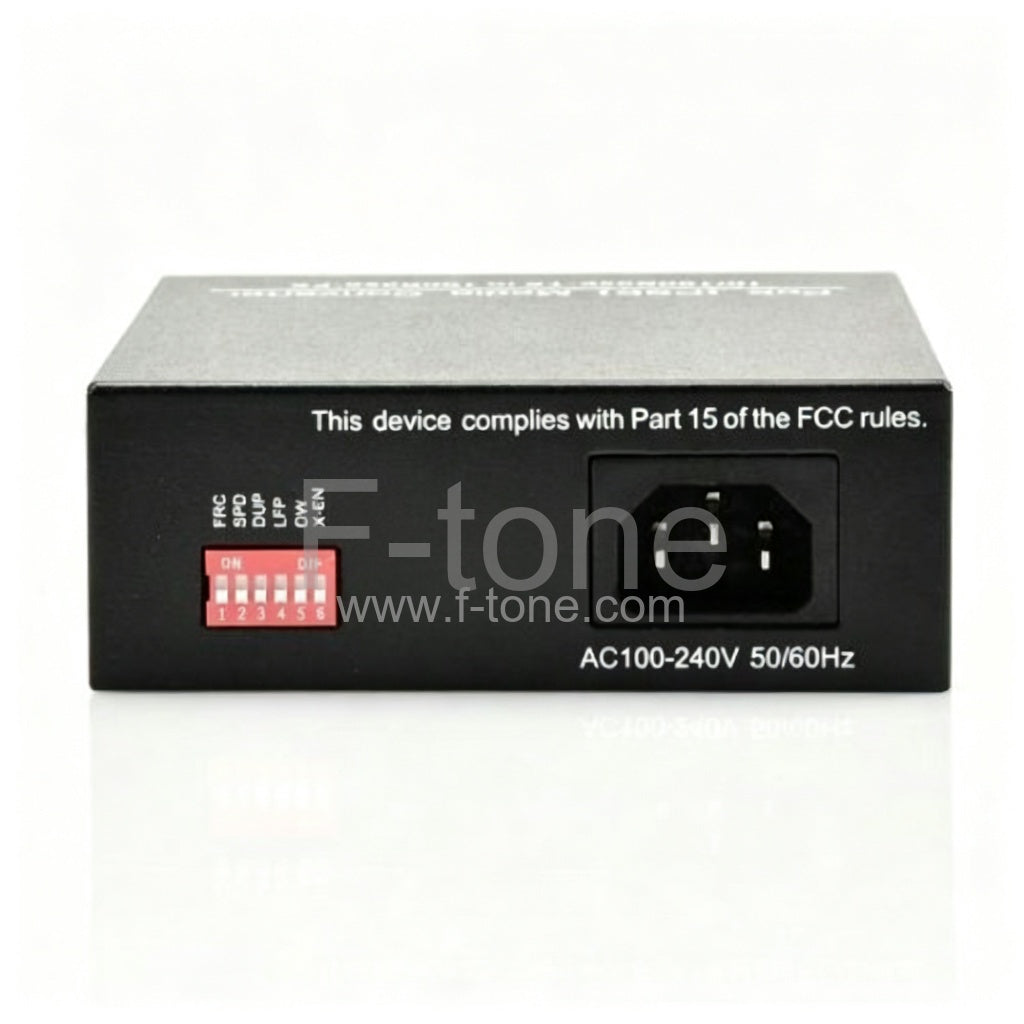

- Power Supply: Built-in
- UTP cable: Cat. 5/5e/6 UTP cable (the max distance up to 100m)

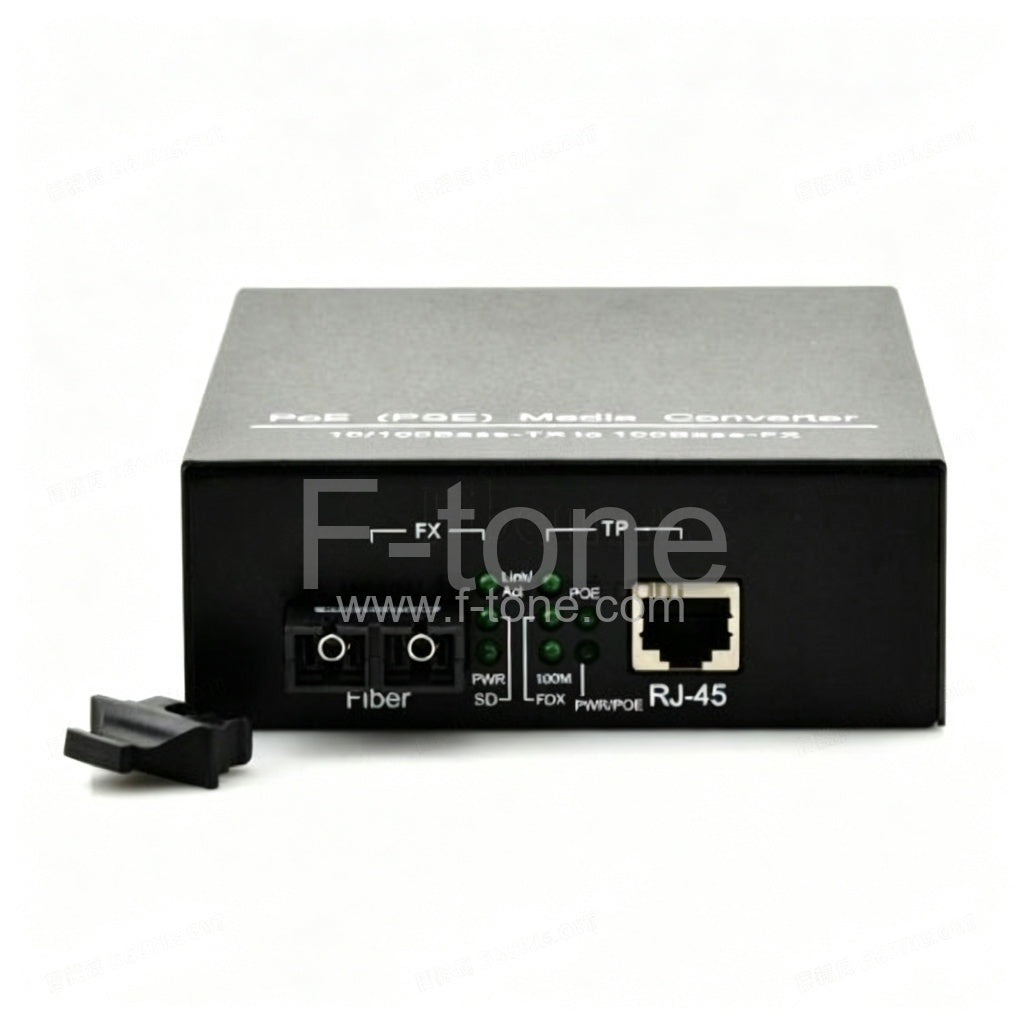

- LED Indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX
- Operation Temperature: 0 ℃~50 ℃(Humidity: 5~90% non-condensing)
- Storage Environment: -25℃~+70℃ (Humidity: 5~90% non-condensing)
Applications
Note: As you can see in the above application picture, this is a comprehensive system. Please buy the whole set.
Our Comprehensive System of media converter include:
| Part No. | Description |
|---|---|
| 1 | Card Type Managed Media Converter: • Multimode 2km dual fiber • Singlemode 20km single fiber or dual fiber • Singlemode 40km single fiber or dual fiber • Singlemode 60km single fiber or dual fiber • Singlemode 80km single fiber or dual fiber • Singlemode 100km single fiber or dual fiber • Singlemode 120km dual fiber |
| 2 | Standalone Managed Media Converter in Customer Side: • Multimode 2km dual fiber • Singlemode 20km single fiber or dual fiber • Singlemode 40km single fiber or dual fiber • Singlemode 60km single fiber or dual fiber • Singlemode 80km single fiber or dual fiber • Singlemode 100km single fiber or dual fiber • Singlemode 120km dual fiber |
| 3 | 17 slot rack chassis (Inserts up to 16 pieces card type converters): • 10/100M • 10/100M or 10/100/1000M |
Label Customized
Note: We can design Fiber Media Converter label for your company according to your requirements. Print any logo in the label is for free. If you need to print your company logo on the equipments, MOQ is 1000pcs.
please contact [email protected] for more details.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
