The wall sealing connection structure can connect 2 or 4 optical fibers at a time
Five-key positioning, blind insertion and anti-error insertion function
Standard ceramic pin and sleeve
The housing is made of stainless steel, strong and corrosion-resistant
Waterproof seal, suitable for outdoor use
It is specialized in the communication application of coal mine, gold mine, iron mine and other mining occasions, as well as the internal communication application of mine.

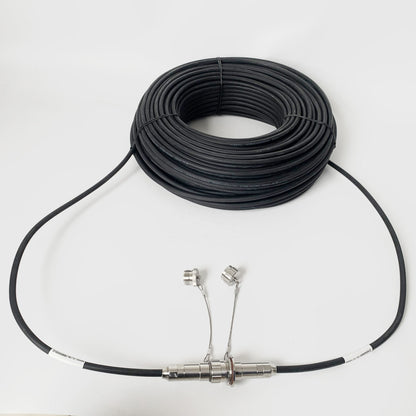

Specialty Mine Using ZLO/ GYD18 Series 4cores Male and Female Fiber Connector ZLO04P ZLO04S /GYD18T4PN GYD18T4SN
Key attributes
| Type | Adaptor |
| Application | Power |
| Gender | Other |
Other attributes
| Place of Origin | Cheng Du, China |
| Brand Name | F-tone Networks |
| Model Number | ZLO04P -ZLO04S |
| Market | Global |
| IP Level | IP67 |
| Contact Material | Copper |
| Shipping by | Express Delivery |
| GYD18 assembly | Fast mining cable connector |
| Certificate |
single mode fiber Connection
|
| mining equipment connector | fast connection |
| ZLO04P-ZLO04S-xxxMeter | Fiber connector |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 10X10X5 cm |
| Single gross weight: |
0.500 kg
|
Product descriptions from the supplier
ZLO/GYD18 Series Fiber optical connectors
ZLO/GYD18 Series PRODUCT PARAMETER
| Parameter | Index Requirement |
| Insertion Loss |
≤0.6dB
|
| Working temperature |
-40℃~+85℃
|
| Waterproof Level |
IP67
|
| Maintenance force of optical cable components |
≥720N
|
ZLO/GYD18 series Products connecting ways

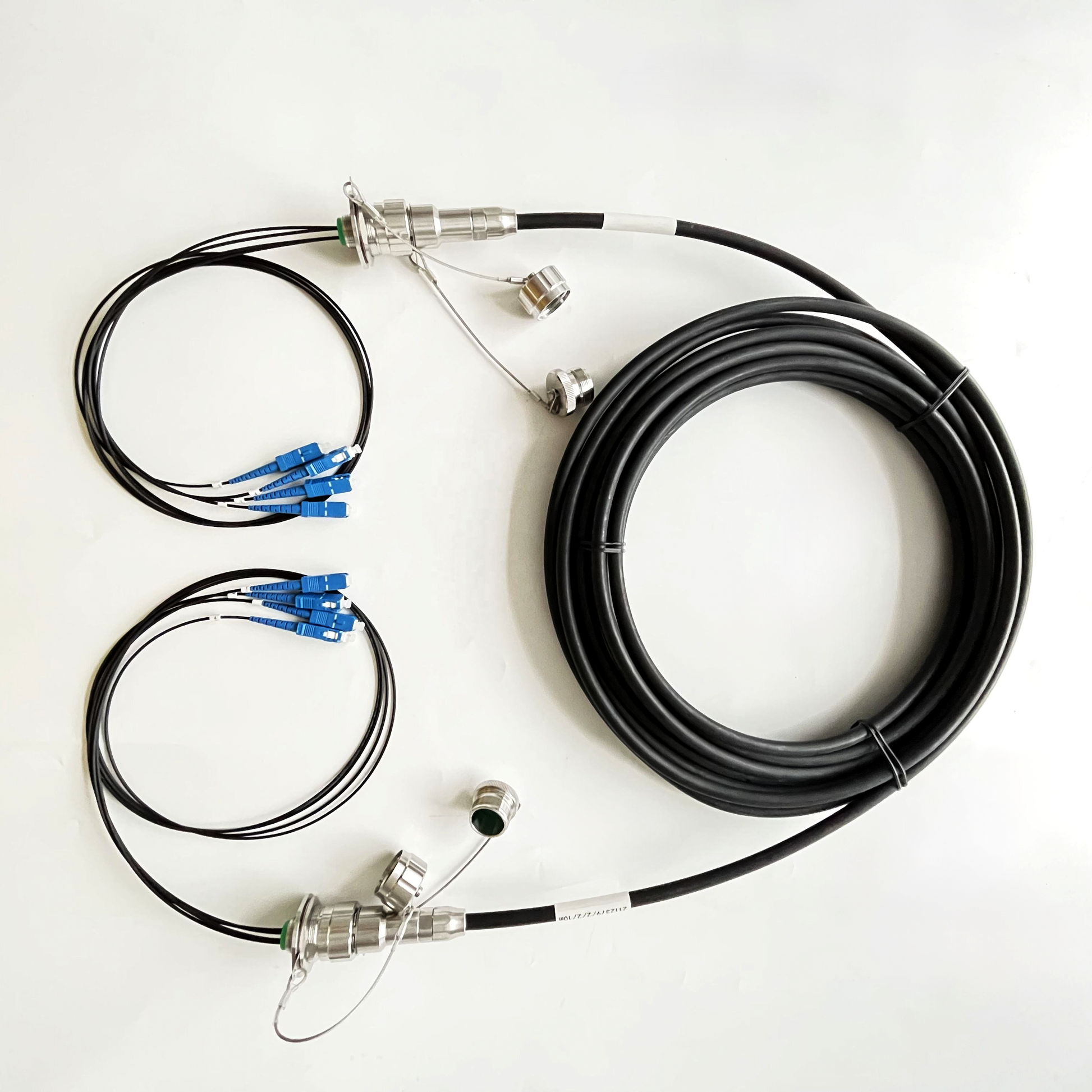

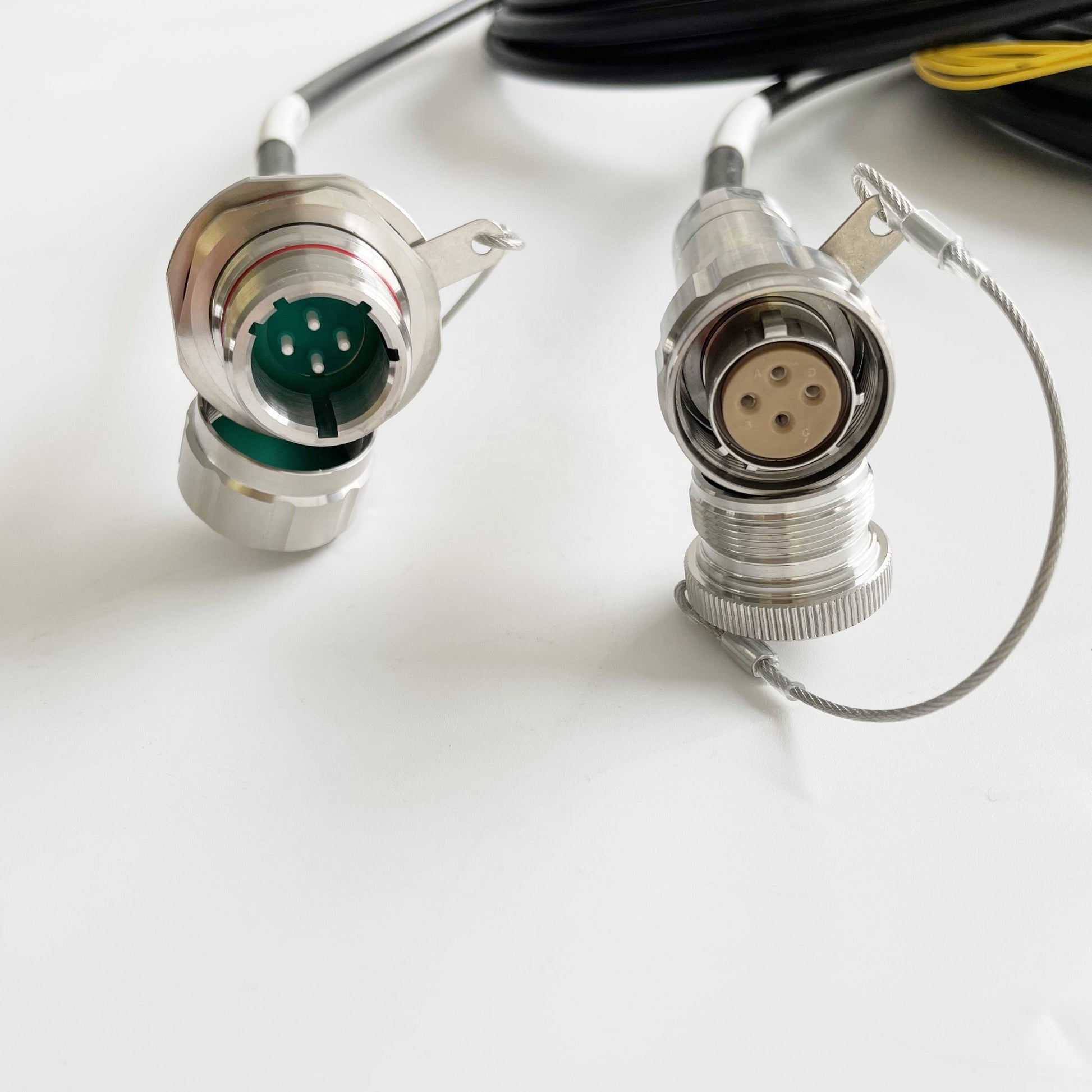

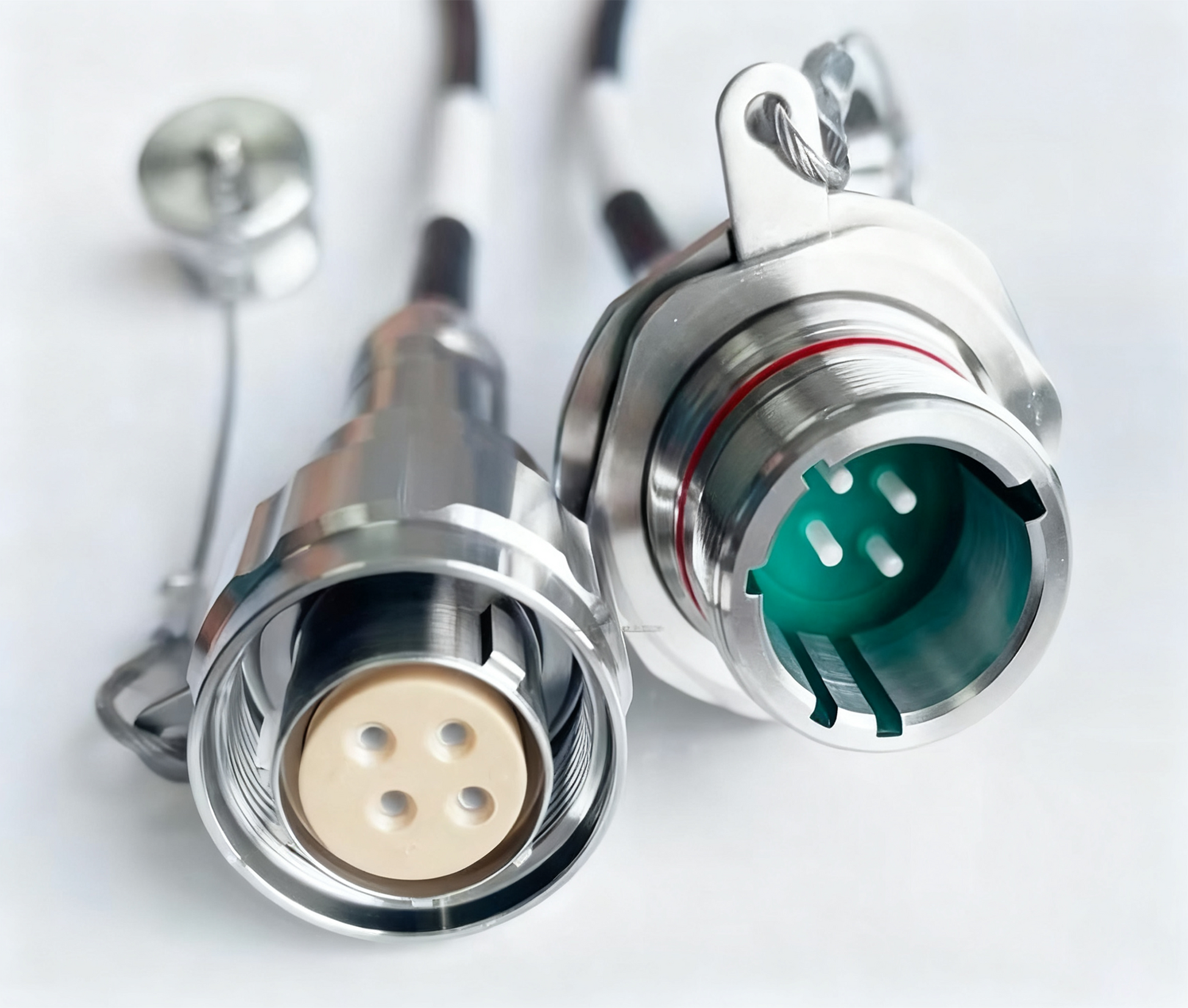

ZLO/GYD18 4CORES PLUG AND SOCKET

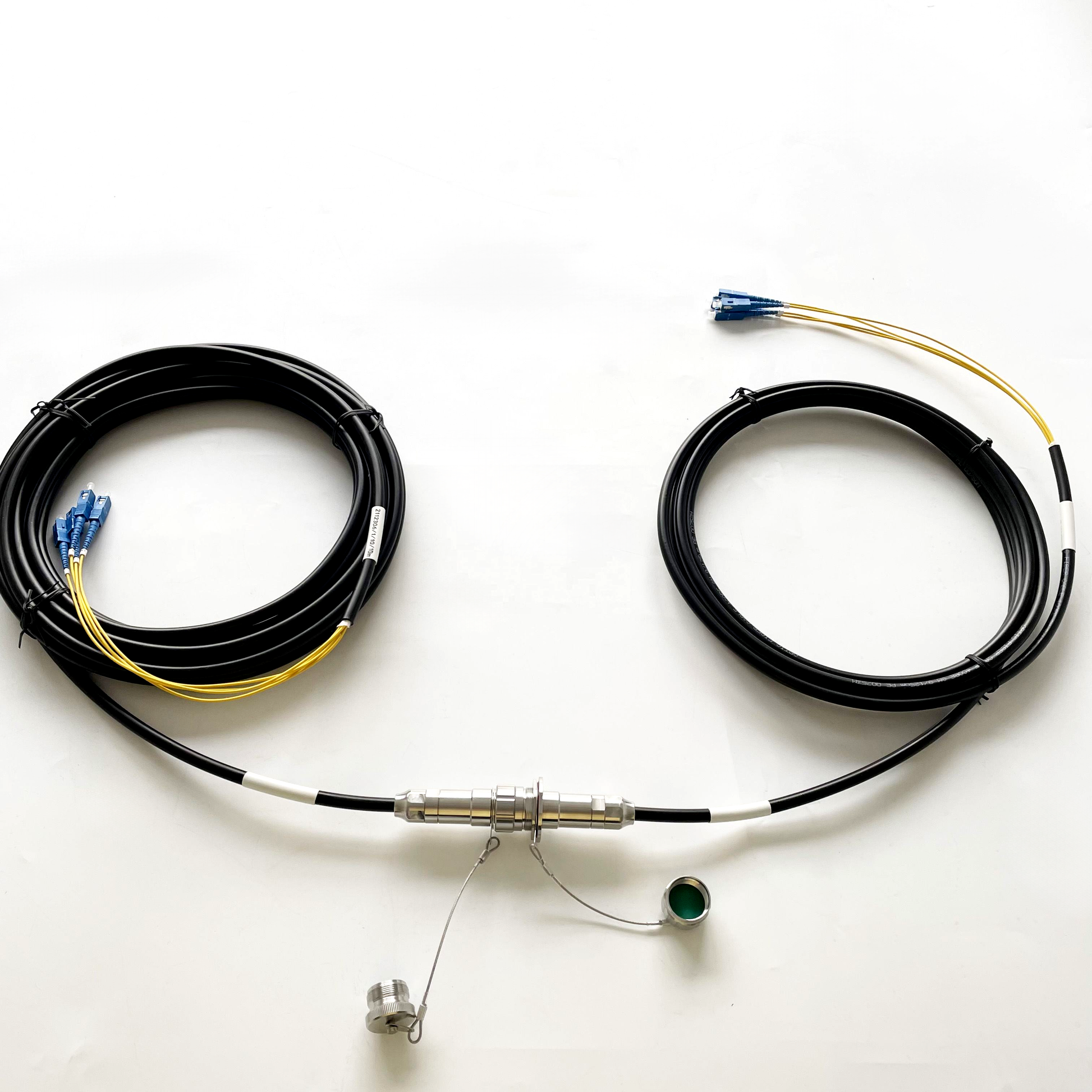

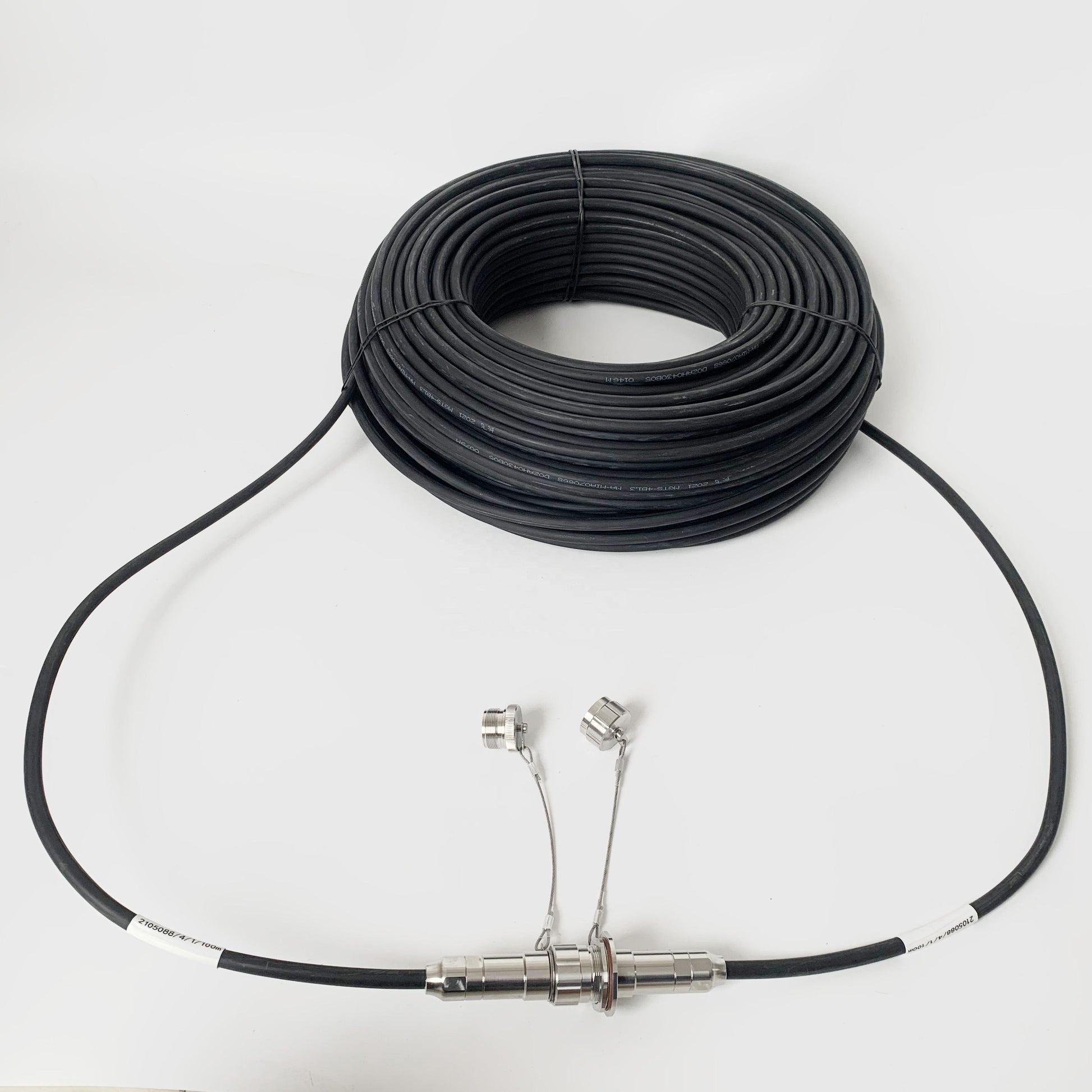

ZLO/GYD18 4CORES PLUG AND SOCKET Connecting

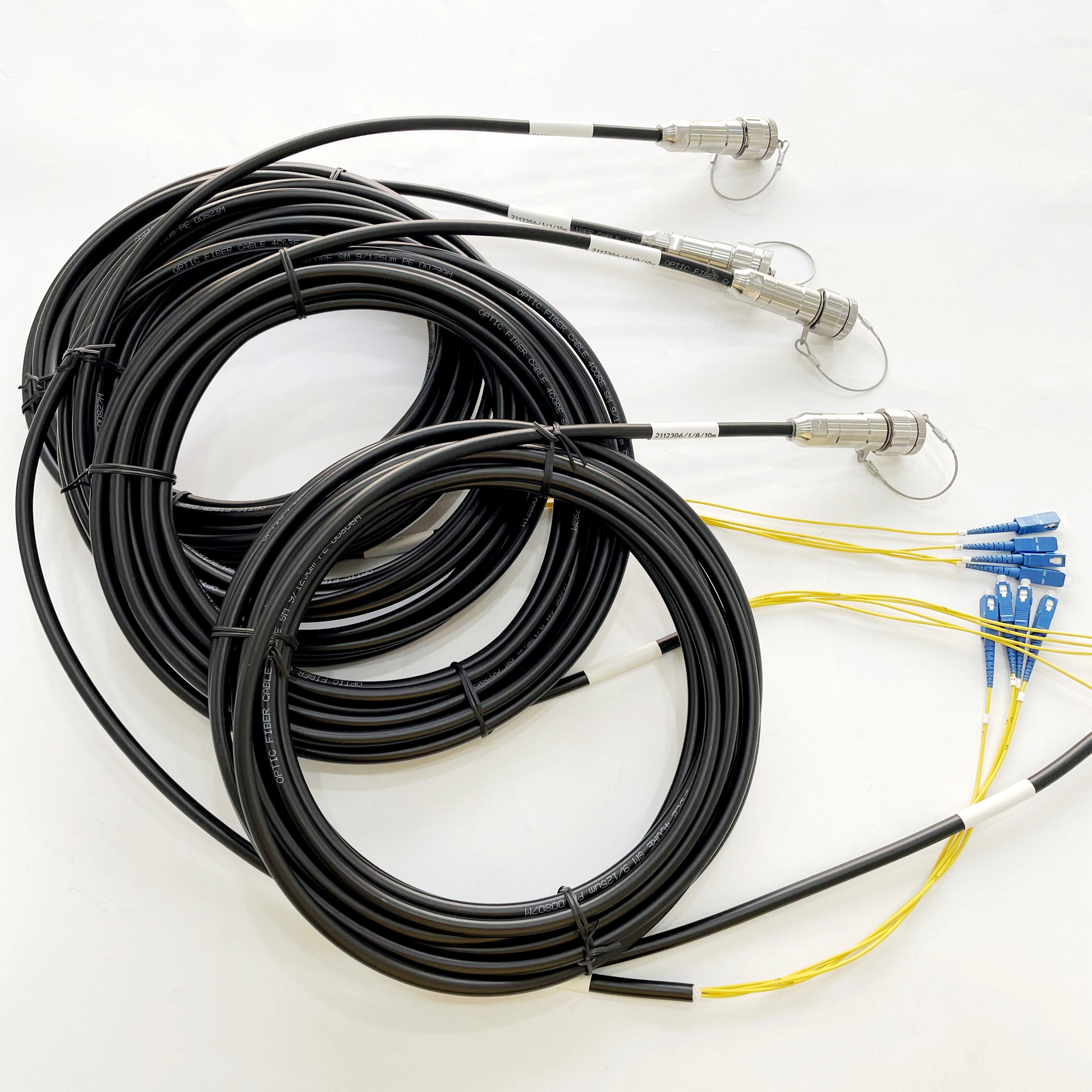

ZLO/GYD18 Series Connectors Assamblies Show
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
