Part Number: ST-107

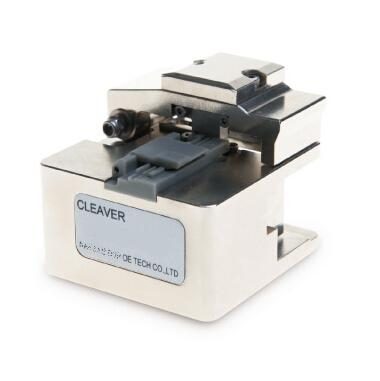

ST-107 Fiber Cleaver
Descriptions:
ST-107 series high precision fiber cleaver is the highly-precision fiber cutting tool, suitable for 250um to
900um coating fiber and 125um cladding fiber. The 16-position blade is workable for 48000 fiber cleaves. It is easy
to use and maintenance
Features:
1.High cutting quality.
2.Durable design.
3.Replaceable blade.
4.Simple operation and Easy maintenance.
5.Leather carrying case
6.One-year warranty
Specifications:
| ST-107 Fiber Optic Cleaver | |
|---|---|
| Fiber type | Single fiber, ribbon fiber |
| Clad diameter | 125um |
| Coating diameter | 250~900um |
| Cleave angle capability | <0.5° |
| Cleave length | 5~20mm |
| Blade lifetime | 36,000 fiber cleaves |
| Dimension | 60mm(W) x 55mm(D) x 45mm(H) |
| Weight | 280g |
Using Guide:
Read this description, before using Cleaver and keep description with Cleaver.
Using Cleaver, please be cautious of the following particulars and prevent your body and property from harm and use carefully and usefully.
Keep Cleaver away from water.
Place Cleaver away from humid and dusty place.
High temperature causes transforming, so keep it in normal temperature.
Be careful with serious impact on it.
Be sure that the stripped fiber length should be at least 12mm or longer.
Clean the Cutting Edge Rubber Pad regularly with alcohol. Try not to use acetone or corrosive solvent when you clean the rubber pad.
Keep the fiber holder clean to ensure no dust in it.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
