Part Number: ST-3105P-20

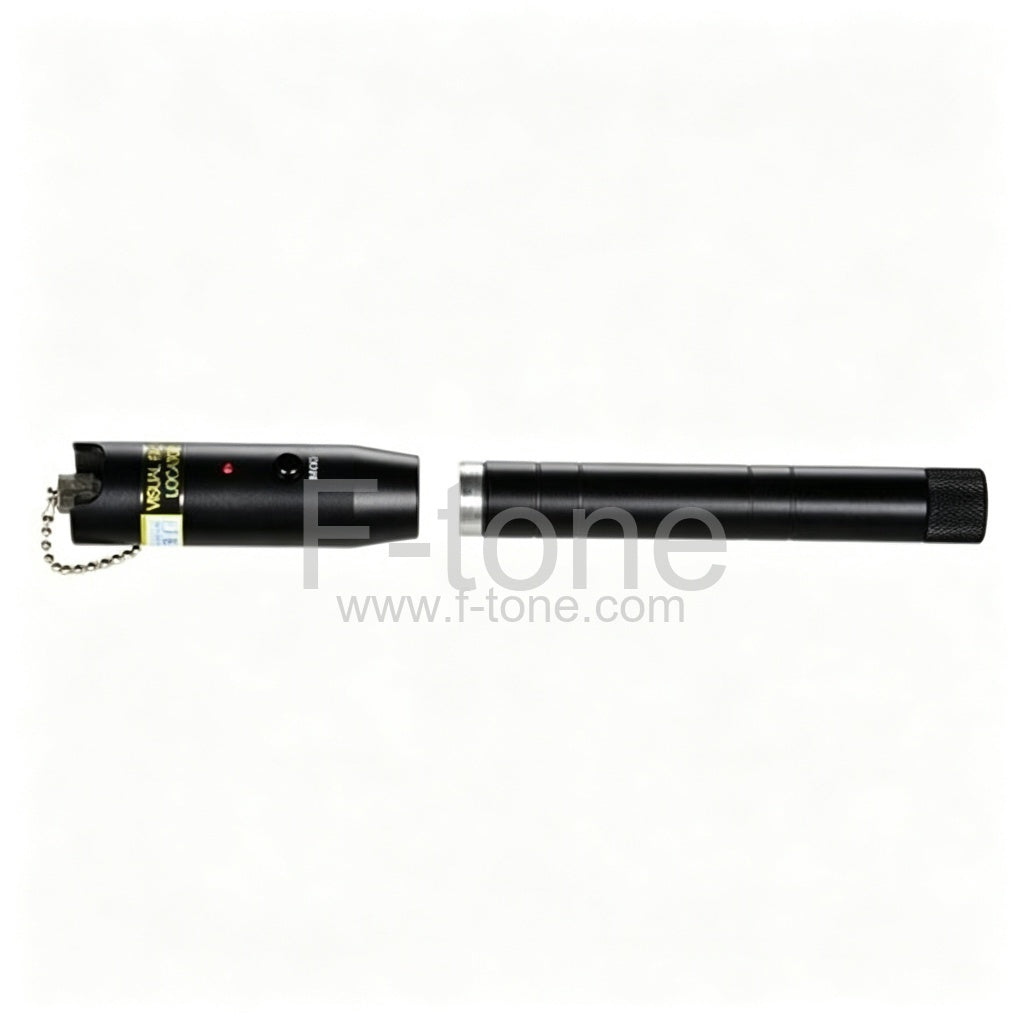

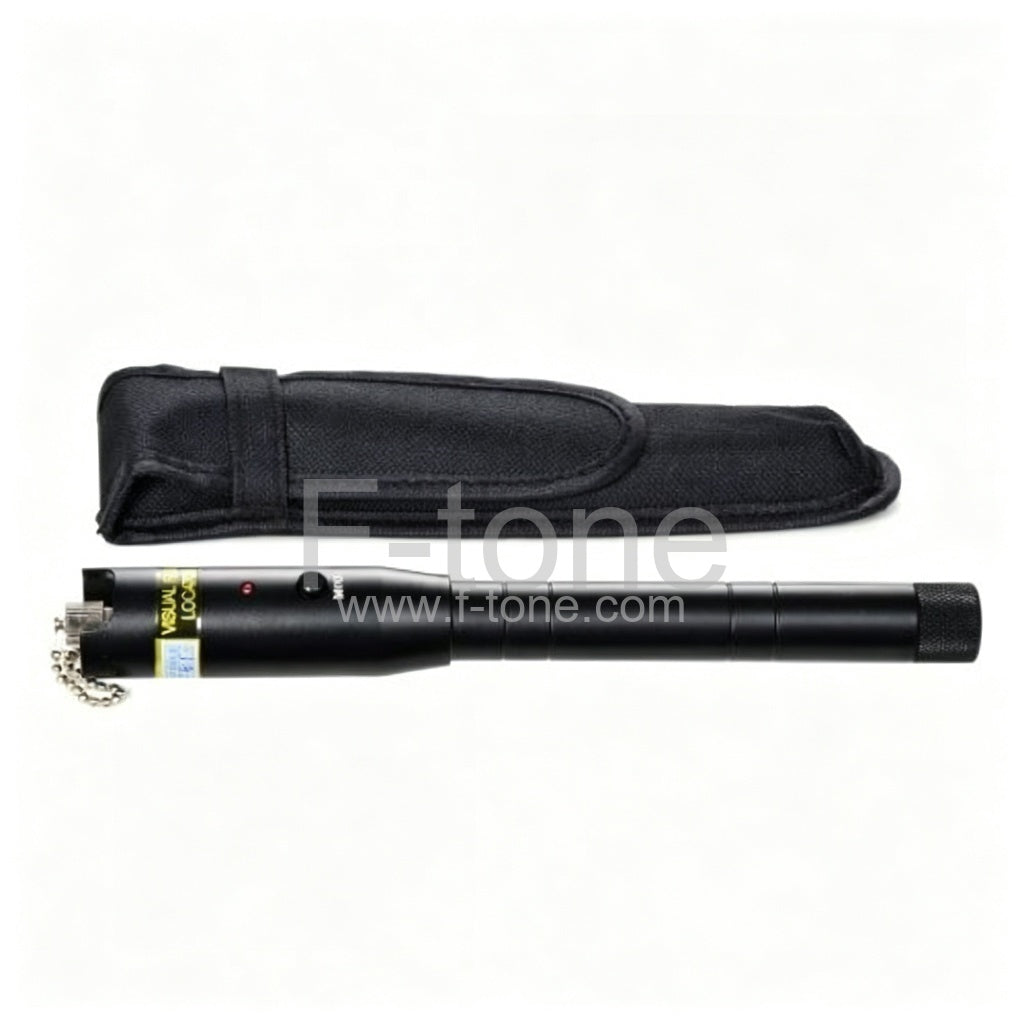

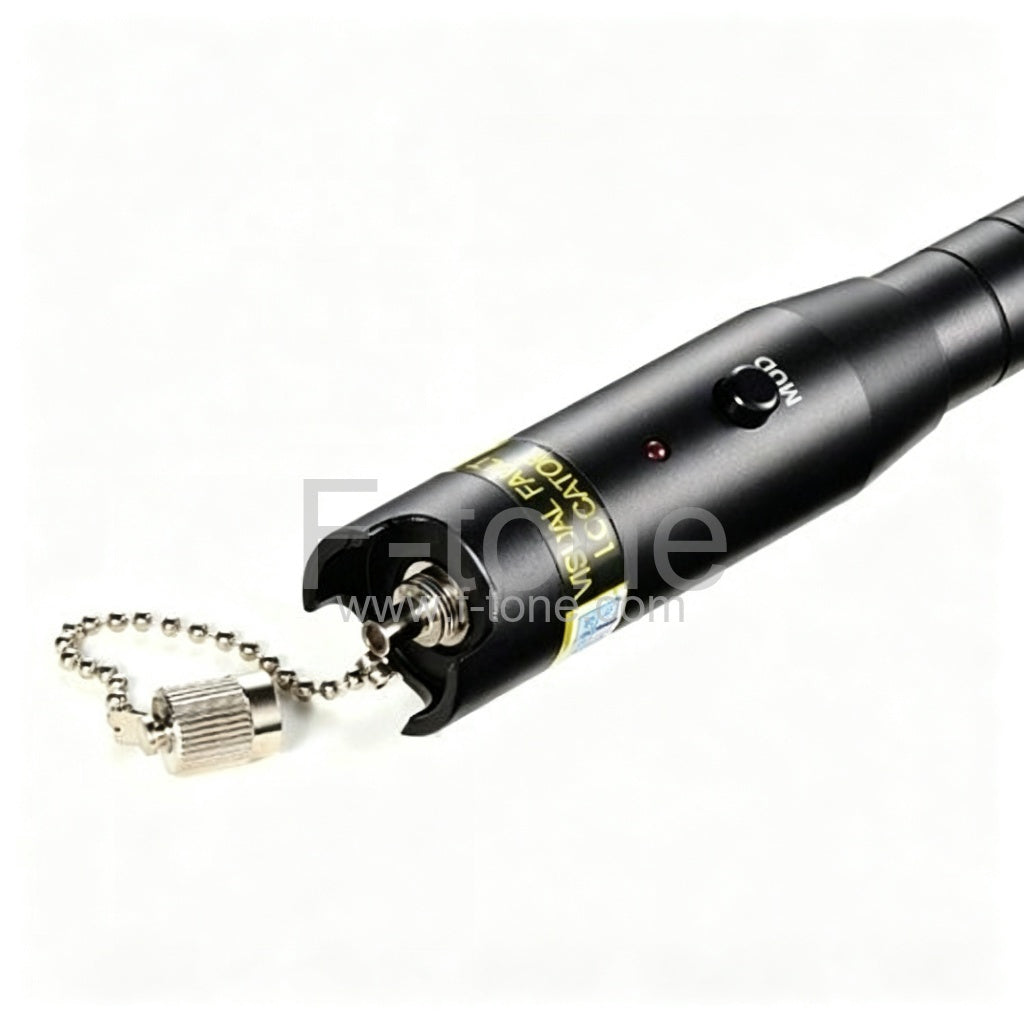

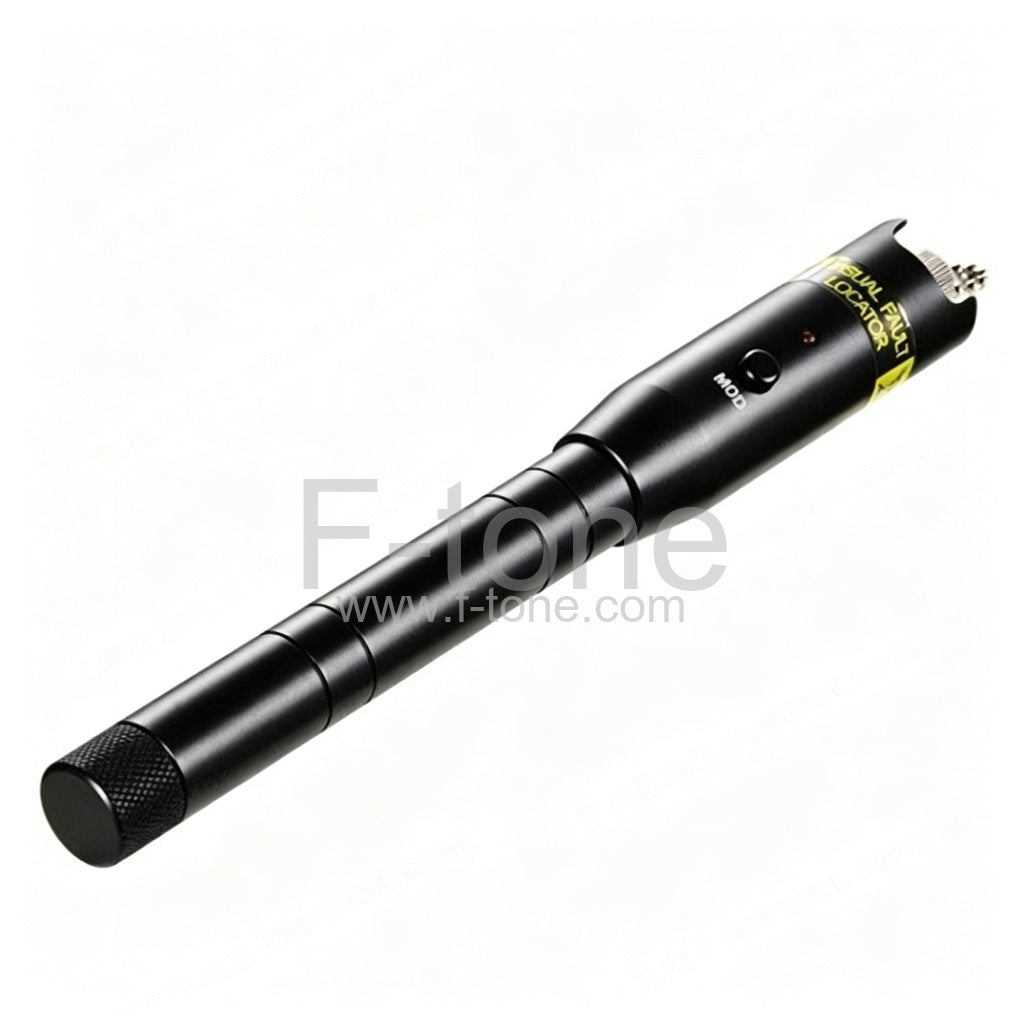

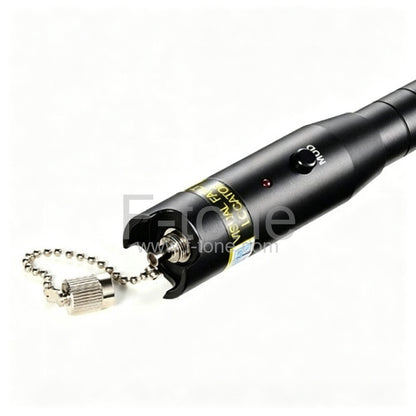

20mW New Visual Fault Locator Fiber Optic Laser Tester FT3103D (16-17km)
650nm Pen-type Visual Fault Finder
The FT3103 is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR.
Note: Standard connector is 2.5mm UPP or 2.5mm UPP + FC.
If you need to connect with FC, ST or SC port, please choose the 2.5mm UPP adapter or 2.5mm UPP + FC.
If you need to connect with LC port, you can buy a 1.25mm UPP adapter or a FC male to LC female fiber adapter.
Key Features
- 2.5mm universal connector
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Long battery life (up to 60 hours)
- Crash-proof and dust-proof design for laser head
- Laser case ground design prevents ESD damage
- Burning testing to ensure the reliability
- Portable and rugged, easy to use
- Guarantee to CE standards include EMC, EMI, ROHS
Specifications
| Type | FT3103 Pen-type Visual Fault Finder |
|---|---|
| Central Wavelength | 650nm ±10nm |
| Emitter Type | FP-LD |
| Output Power | Optional choice for 1mw, 5mw, 10mw, 20mw, 30mw on actual needs |
| Optical Connector | 2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
| Operating Model | Both CW and Pulse available |
| Pulse Frequency | 2~3Hz |
| Power Supply | 2 AAalkaline batteries |
| Battery Operating Time | 1mw≥65hour; 3mw≥50hour; 10mw≥15hour |
| Test with Panasonic LR6AAALKALINE battery | |
| Operating Temperature | -10~+45（℃） |
| Storage Temperature | -40~+70（℃） |
| Dimension (mm) | 15*180 |
| Weight | 120g(Without battery) |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
