Part Number: ST-3200

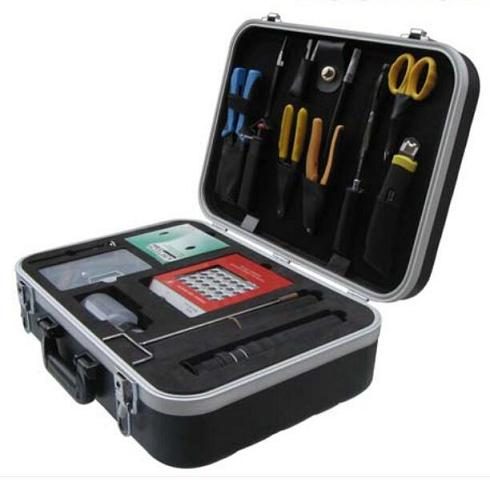

ST-3200 Fiber Polish/Curing Toolkit
Place of origin: China Sunma
Main characteristics:
(1) design of optical fiber connectors for outdoor and field production;
(2) the full range of tools, including the fiber strip, aramid shear, assembly compression,
Glue curing, grinding, surface inspection and cleaning processes;
(3) equipped with abrasive supplies enough to produce more than 100 connectors;
(4) on the cover of the expansion, to facilitate the storage of fragmented parts;
(5) one molded ABS aluminum case with 32 professional brand tools.
Specification
| Name and model | Quantity | Unit |
|---|---|---|
| F/O KEVLAR Cutter,FOKC-1 | 1 | PCS |
| Cutter Knife | 1 | PCS |
| Screw Driver Set, HD-10742T | 1 | PCS |
| Optical Fiber Scribe, OFM-02 | 1 | PCS |
| Mark Pen,FJ-505 | 1 | PCS |
| Fiber Optic Stripper,CFM-2 | 1 | PCS |
| Jacket Stripper,JIC-1022 | 1 | PCS |
| Ideal Coaxial Cable Stripper, 45-162 | 1 | PCS |
| Round Cable Slitter, RCS-0425 | 1 | PCS |
| Precision Fiber Tweezer, FK-TZ15 | 1 | PCS |
| Fiber Connector Crimper, FK-336J | 1 | PCS |
| 400X Handheld MicroScope, FK-H400 | 1 | PCS |
| 1.25mm LC Ferrule Sleeve | 1 | PCS |
| 10 PCS Ferrule Hole Cleaner | 1 | pack |
| 24-Hole Fiber Curing Oven, OFO-24 | 1 | PCS |
| Patchcord Shelf for OFO-24 | 1 | PCS |
| Thermometer for OFO-24 | 1 | PCS |
| 5 Pair Epo-tek Epoxy | 1 | PCS |
| 10 PCS 5ml Epoxy Syringe | 1 | pack |
| 10 PCS Diamond Film 5um | 1 | pack |
| 10 PCS Diamond Film 1um | 1 | pack |
| 10 PCS Final Polish Film 0.05um | 1 | PCS |
| SC/ST/FC Ferrule Polish Disk | 1 | PCS |
| 1.25mm LC Ferrule Polish Disk | 1 | PCS |
| 5" Rubber Pad | 1 | PCS |
| 6" Glass Pad | 1 | PCS |
| Working Rubber Pad 18"×11" | 1 | PCS |
| IPA Cleaning Wipes(10PCS) | 1 | PCS |
| Kimwipes-0131, 280PCS/Box | 1 | PCS |
| 50PCS Cleaning Swab | 1 | PCS |
| Leakproof Alcohol Pump 250ml | 1 | PCS |
| 3M Scotch Magic Tape | 1 | PCS |
| Small Parts Container | 1 | PCS |
| ABS Enhanced Tool Case (465*335*150mm) | 1 | PCS |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
