Part Number: ST-3207

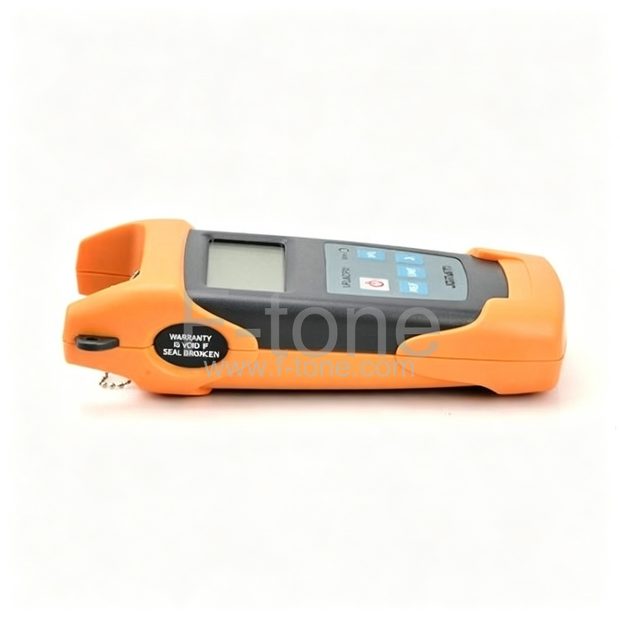

ST-3207 Handheld Optical Multi Meter
Description
It integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit which can perform closed-loop tests by incorporating both modules. Individual regimes of operation can also be manually chosen using menu operation to switch functions. A perfect combination to make your optical fiber tests a lot more convenient. It has a long battery operating time than the ST-3204 optical multimeter, and a wider measurement range than the ST-3204A.
Note: Together with 2.5mm UPP adapter, FC, SC, ST are all interchangeable.
LC adapter means FC male to LC female fiber adapter.
Features
Includes all the outstanding functions of handheld intelligent power meter(ST-3206)
Includes all the outstanding functions of handheld stable light source(ST-3108)
Switching of the power meter function and that of the light source by menu operation
Different light sources and power meters can be built into ST-3207
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Standard Package
ST-3207 Multimeter, Protective Rubber, Power Supply Adapter, Software Disk, Data Upload Cable RS232, Instruction Manual, Cotton Tampon
The Fiber Optic Multi meter is an integrated unit of power meter and light source, it can satisfy the user by providing a choice of greater convenience and more advantages. Fibertore can provide all this kind of products with one year warranty. If you are interested in this ST-3207 Handheld Optical Multi Meter, welcome to contact us.We will provide you the best service.
Specifications
| Type | ST-3207A | ST-3207C |
|---|---|---|
| Optical Power Meter Module | ||
| Detector Type | IngaAs | |
| Measurement Range(dBm) | -70~+6 | -50~+25 |
| Uncertainty | 5% | |
| Calibrated wavelengths(nm) | 850,980,1300,1310,1490,1550 | |
| Resolution(dB) | 0.01 | |
| Data Storage Capacity | 240 data items | |
| Optical Connector | FC(interchangeable SC,ST) | |
| Identification Frequency Rang | 10Hz~60KHz | |
| Optical Light Source Module | ||
| Emitter Type | FP-LD | |
| Wavelengths | 1310/1550(other wavelengths can be optional) | |
| Output Power(dBm) | -7 | |
| Spectral Width | ≤10nm | |
| Output Stability | ±0.05dB/15mins; ±0.1dB/8hours | |
| Modulation Frequencies | 270Hz, 1KHz, 2KHz | |
| Optical Connector | FC/PC | |
| General Specifications of Multimeter | ||
| Power Supply | Rechargeable Battery + Power Supply Adapter | |
| Communication Interface | RS232 | |
| Battery Operating Time | ≥6 hours(Both Power Meter and Light Source are working) ≥28hours(Only Power Meter is working) | |
| Auto-off time | 10mins | |
| Operating Temperature(°C) | -10~+60 | |
| Storage Temperature(°C) | -25~+70 | |
| Dimension(mm) | 210x115x55 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
