Part Number: ST-3208C

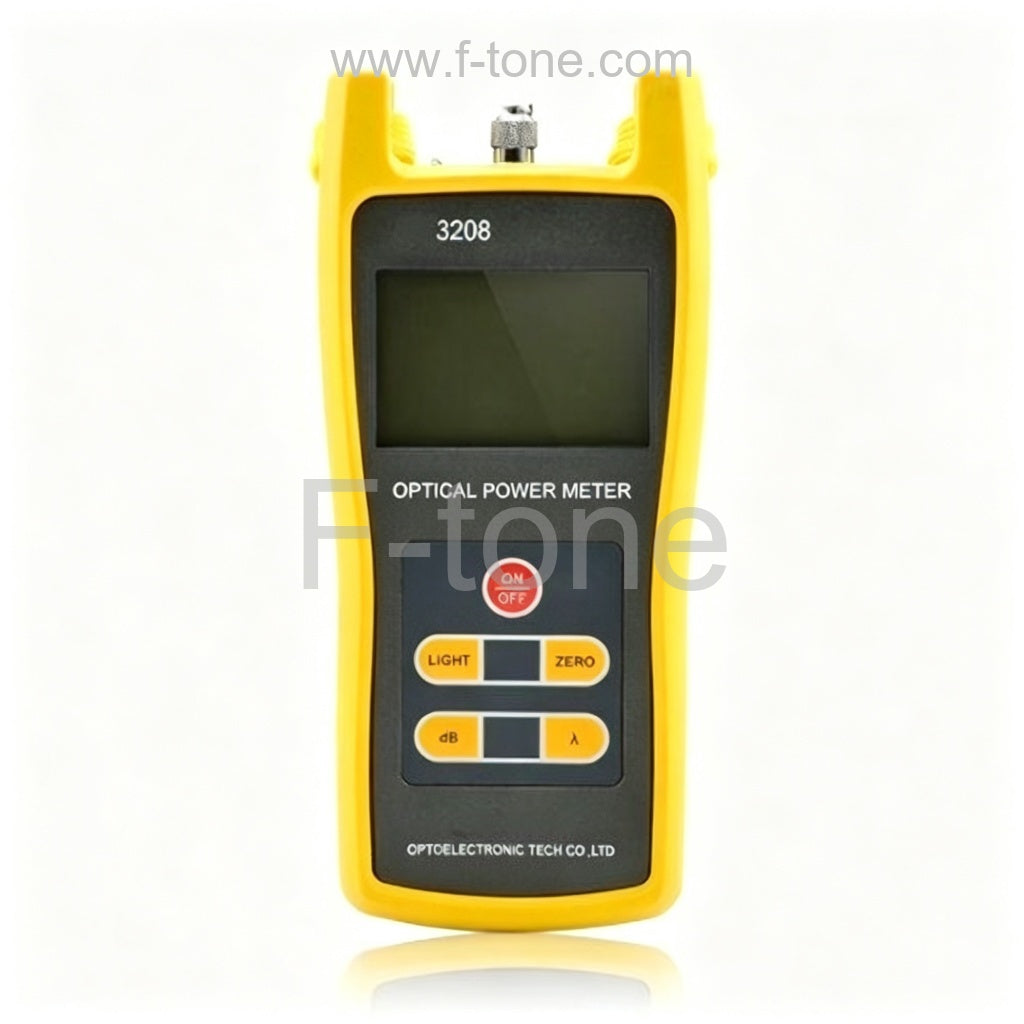

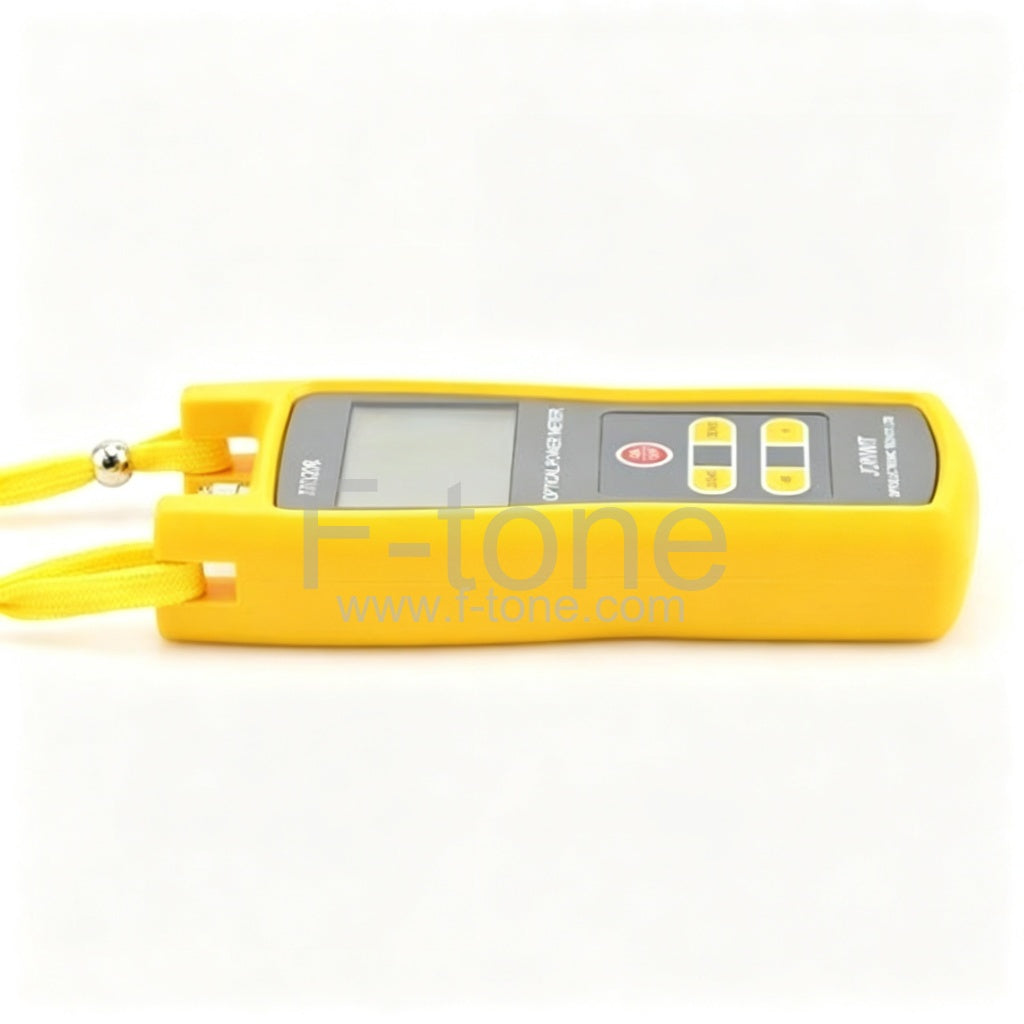

Portable Optical Power Meter ST-3208C -50 to +26 dBm
Description
ST-3208 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
Note:
FC, SC and ST connectors are interchangeable and can be used with 2.5mm UPP adapter together.
FC adapter means SC male to FC female fiber adapter.
SC adapter means FC male to SC female fiber adapter.
ST adapter means FC male to ST female fiber adapter or SC male to ST female adapter and it depends on what our standard connector is (FC or SC).
LC adapter means FC male to LC female fiber adapter or SC male to LC female adapter and it depends on what our standard connector is (FC or SC).
Features
User self calibration function
Comfortable LCD display and optional backlight LCD display supports night operation
Power measurements in dBm or mw and insertion loss in dB
Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
10 minutes Auto-off function can be activated or deactivated.
Applications
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Standard Packages
| Model | Includes |
|---|---|
| All ST-3208 Models | ST-3208 Optical Power Meter, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case. |
Note:
F-tone is specializing in supplying fiber optic components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new ST-3228 power meter at a large quantity.
| Type | ST-3208A | ST-3208C |
|---|---|---|
| Wavelength(nm) | 800~1700nm | |
| Detector | InGaAs | |
| MeasurementRange(dBm) | -70~+3 | -50~+26 |
| Uncertainty | +/-5% | |
| Calibrated Wavelength (nm) | 850, 980, 1300, 1310, 1490, 1550nm | |
| Resolution (dB) | 0.01 | |
| Optical Connector | FC(interchangeable SC,ST) as well as 2.5mm universal | |
| Power Supply | Alkaline Battery (3 AA 1.5V Batteries) | |
| BatteryOperating Time | 240 hours with three 1.5V batteries (3) | |
| Operating Temperature(℃) | -10~+60 | |
| Storage Temperature(℃) | -25~+70 | |
| Relative Humidity | 0 to 95% (non-condensing) | |
| Dimension (mm) | 175x82x33 | |
| Weight (g) | 310 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
