Part Number: ST-3209

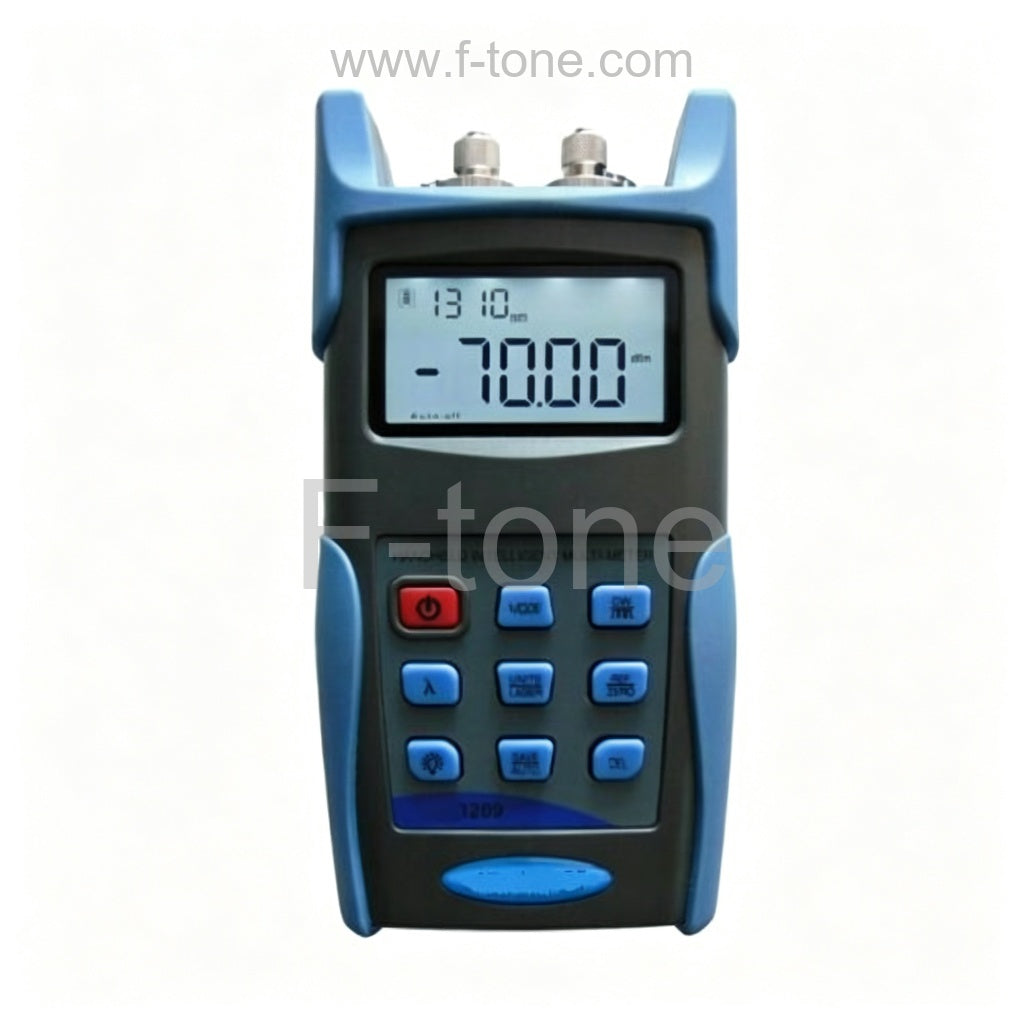

ST-3209 Handheld Optical Multimeter (Loss Meter)
Integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit. It can also provide data storage and upload functions. It is widely used in installation ,measurement and maintenance of DDN, Telecom and CATV networks.
Features
Users could write their own software by the communication protocol provided
Automatic wavelength of light source switching
Frequency identification.
Simple function mode switching
High stability of the output power
Data storage function, up to 1000 test records
USB communication port for saved testing records download
Alkaline Battery and Mini USB Adapter for power supply
Applications
Telecom Maintenance
CATV Maintenance
DDN Maintenance
Fiber Optic lab testing
Other Fiber Optic Measurements
Specifications
| Type | ST-3209C | |
|---|---|---|
| Optical Power Meter Module | ||
| Calibrated wavelengths(nm) | IngaAs | |
| Measurement Range(dBm) | -70~+6 -60~+10 |
-50~+26 -20~+30 |
| Rosolution(dB) | 0.01 | |
| Uncertainty | ≤±0.25 | |
| linearity (dB) | ≤±0.1 | |
| Frequency ID Range（Hz） | ＜10K | |
| Optical Light Source Module | ||
| Wavelengths(nm) | 1310/1550(other wavelengths can be optional) | |
| Typical Ouput Power(dBm) | -5 | |
| Output Stability (dB,30min,20℃) | ≤0.1 | |
| Modulation Frequencies(Hz) | CW,270,1K,2K | |
| General Specifications of Multi Meter | ||
| Power Supply | 3 pcs 1.5V Alkaline Batteries/Mini USB 5V Adapter | |
| Battery Operating Time(h) | ≥50 (Both Power Meter and Light Source are working) ≥200(Only Power Meter is working) |
|
| Auto-off time (min) | 10 | |
| Communication Port | Mini USB | |
| Operating Temperature(℃) | -10~+60 | |
| Storage Temperature(℃) | -25~+70 | |
| Dimension(mm) | 175X90X44.5 | |
| Weight (g,without batteries) | 265 | |
Standard Packages
| MODEL | INCLUDES |
|---|---|
| ST-3209 | Multimeter, Mini USB cable,5V USB Adapter,3pcs 1.5V Alkaline Batteries,CD,User Manual, Cotton swabs and Soft carrying case. |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
