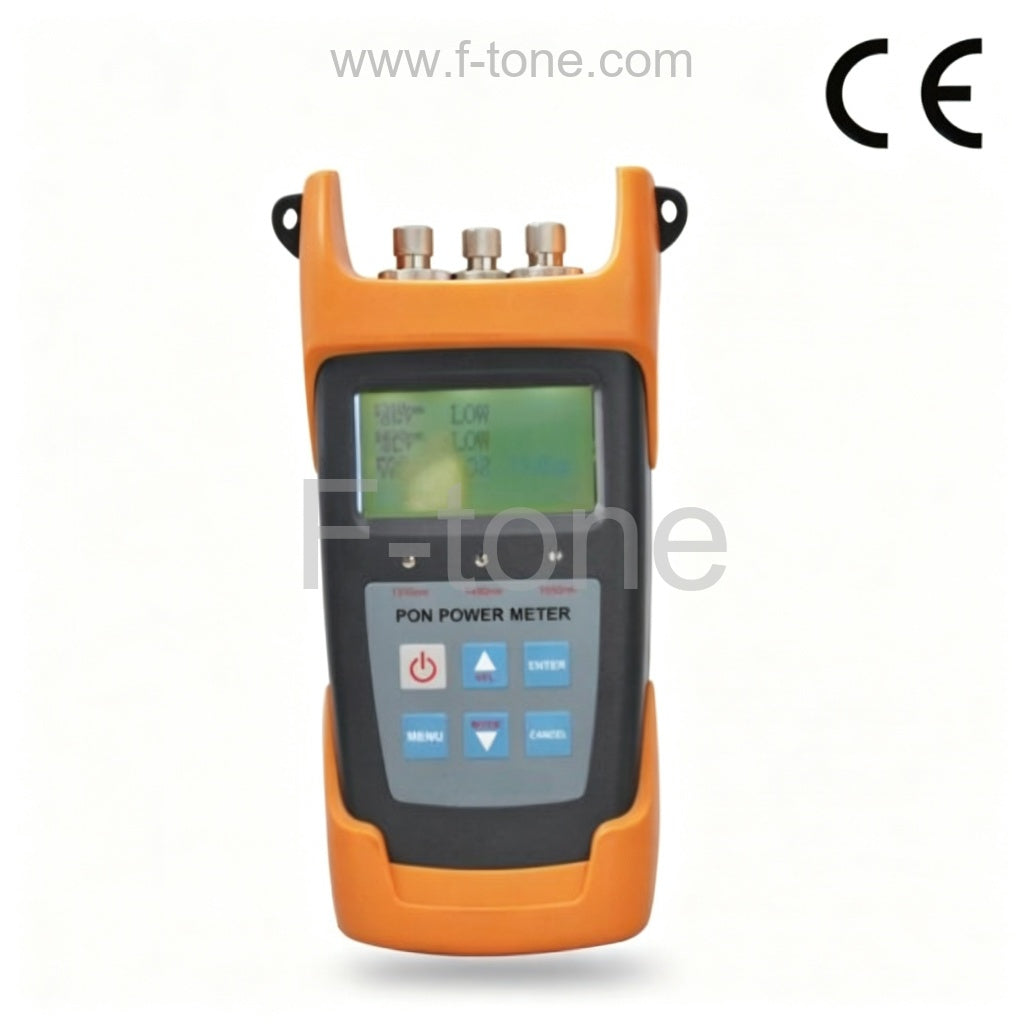

ST-3213 PON Optical Power Meter
ST-3213 Series PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.
Key Features
It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
Used in Burst mode measurement of 1310nm upstream.
Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
USB communication port enables data transfer to a PC.1000measurement items can be saved in 3213 PON power meter or computer for data review.
With optical power meter modual, include 850、1300、1310、1490、1550、1625sixs( 3213AP，3213A without 850nm wavelength）；With visual fault locator modual（3213and3213AV）Optical power meter and VFL with one port.（only 3213A）
Optional Chinese/English display.
Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
10 minutes Auto-off function can be activated or deactivated
Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
Different models corresponding to different function, according to own use to choose .
Specifications
| PON module: |
3213 | 3213A | 3213AV | 3213AP | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1310 upstream measurement | |||||||||||||||
| MeasurementRange(dBm) | 15dBm | ||||||||||||||
| Burst mode measurement error | Pass Zone(nm) | -40dBm～+10dBm | |||||||||||||
| Isolation@1310/1550(dB) | Pass Zone(nm) | -40dBm～+10dBm | |||||||||||||
| Isolation@（1310/1490nm） | Connatural uncertainty(dB) | ±0.1dB | |||||||||||||
| Passing through insertion Loss(dB) | <1.5dB | ||||||||||||||
| InGaAs | |||||||||||||||
| Fiber Type | dB/dBm/xW | ||||||||||||||
| Operation Voltage(V) | 3pc1.5V battery | ||||||||||||||
| Continuously Operation time (h) | PON：90h | PON：90h OPM：100h VFL：50h |
PON：90h VFL：50h |
PON：90h OPM：100h |
|||||||||||
| Storage temperature(℃) | 423g | 424g | |||||||||||||
