Part Number: ST-3226
Handheld CWDM Power Meter ST-3226 optical power range -50~+6dBm
ST-3226

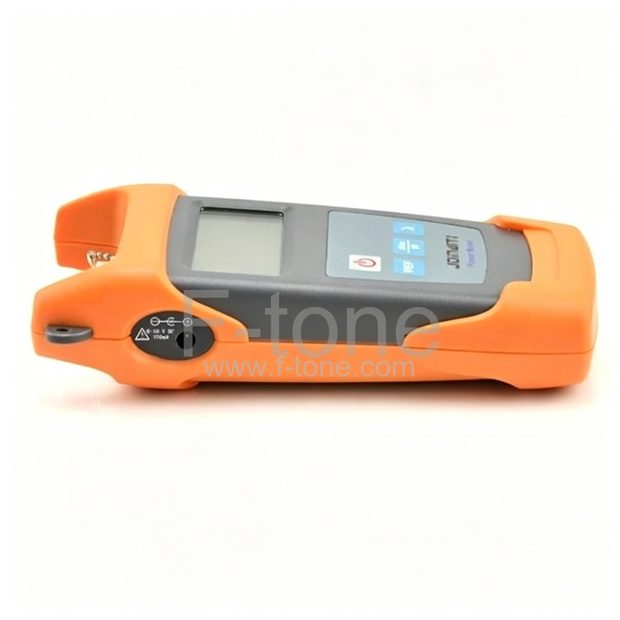

ST-3226 CWDM Power Meter is a handy measuring instrument which is specially designed for CWDM system, covers wavelength from 1470~1610nm. It can measure and monitor optical power and attenuation value at the calibrated wavelengths of 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm and 1610nm. Testing at all calibrated wavelengths will be performed simultaneity and all testing results will be showed in the LCD display. ST-3226 CWDM power meter features simple operation and quick response, which greatly improves the testing efficiency. Its high accuracy measurement and easy-to-use design becomes an ideal tester in CWDM system testing and CWDM installation and maintenance.
Note:
FC, SC and ST connectors are interchangeable and can be used with 2.5mm UPP adapter together.
FC adapter means SC male to FC female fiber adapter.
SC adapter means FC male to SC female fiber adapter.
ST adapter means FC male to ST female fiber adapter or SC male to ST female adapter and it depends on what our standard connector is (FC or SC).
LC adapter means FC male to LC female fiber adapter or SC male to LC female adapter and it depends on what our standard connector is (FC or SC).
Key Features
- CWDM system power meter ST-3226
- Measure and monitor optical power and attenuation value at the calibrated wavelengths from 1470~1610nm
- Low-cost alternative solution to optical spectrum analyzers
- 500 items storage & upload by USB
Specification
| Model | ST-3226 |
| Pass band（nm) | 20 |
| Calibrated wavelength（nm） | 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610 |
| Optical Power Range（dBm） | +6~-50 |
| Uncertainty（dB） | ±0.4 |
| Resolution（dB） | 0.01 |
| Data Storage | 500records |
| Communication Port | USB |
| Operation temperature（℃） | -10~+60 |
| Storage Temperature（℃） | -25~+70 |
| Auto Power-off (min） | Auto power off after 10minutes idle time |
| Battery Working Hours（h） | 120 |
| Power Supply | 3pcs 1.5V AA Alkaline batteries |
| Power Supply Adaptor（V） | 8.4 |
| Dimensions（mm） | 180*90*36.5 |
| Weight（g）Without batteries and rubber boot | 420 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
