Part Number: ST-3307B

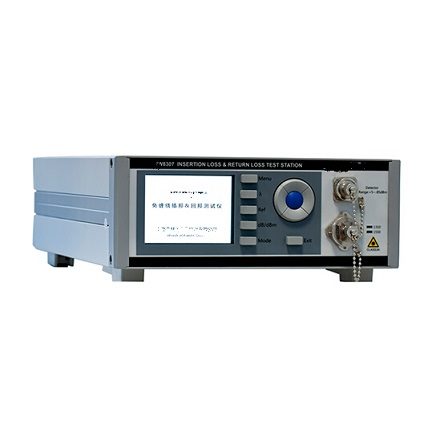

Insertion Loss Meter ST-3307B, MM Return Loss & Insertion Loss Test Station
Description
ST-3307B Insertion Loss/Return Loss Test Station is a high performance loss test station that is designed specially for Optical Passive Components production Test and Lab Test. Insertion Loss Meter combines three different working modes as a return loss meter, optical power and loss meter and a stable laser source in one test station.
Specifications
| Model | ST-3307B |
| Optical Return Loss Test | |
| Wavelength(nm) | 850/1300 (50/125 or 62.5/125) |
| Optical Connector | FC/APC |
| Return Loss measurement Range(dB) | 0 ~ 75 |
| Calibrated wavelength(nm) | 850/1300 |
| Output Stability of laser source(dB) | 0.05/hour@25℃ |
| Measurement accuracy(dB) | 0.25dB |
| Linearity(dB) | 0.05dB |
| Optical Insertion Loss Test | |
| Detector | InGaAs |
| Wavelength Range | 800~1700nm |
| Calibrated wavelength | 850/1300/1310/1550nm |
| Measurement range(dBm) | -80~+3 |
| Optic Connector(Power Meter) | FC/SC/ST,2.5mm Universal /1.25mm adaptors |
| Uncertainty(dB) | 0.25 |
| Linearity(dB) | 0.05 |
| Display modes | Linearity and non-linearity |
| Resolution | Non-linear 0.01dB; Linear: 0.001nw/µW/mW |
| Measurement accuracy | 0.01dB |
| Other Specification | |
| Communication Port | USB |
| Power Supply | AC 170-260V, 50~200Hz |
| Operation Temperature(℃) | -5~+55 |
| Storage Temperature(℃) | -25~+70 |
| Dimensions(mm) | 280X260X120 |
| Weight(kg) | 3.11 |
Order Information
ST-3307B
25mm Universal, 1.25mm Universal Adapter, User Manual, FC/APC-FC/APC reference patch cord, Scrambler, Extinction Module, Cleaning Cotton Stick, Fuse, USB Cable, PC software, Foot Pedal
F-tone provides various types of fiber optic tools which are very important in the fiber optic installation and maintenance works. There are Insertion Loss Meter, fiber cable stripper, fiber cable slitter, crimping tool, fiber optic cutter, punch down tool, network pliers and so on. And we also provide some other fiber optic related tools, if you need or have some questions of this SM/MM Return Loss & Insertion Loss Test Station ST-3307B, welcome to contact us for more details.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
