Part Number: ST3200

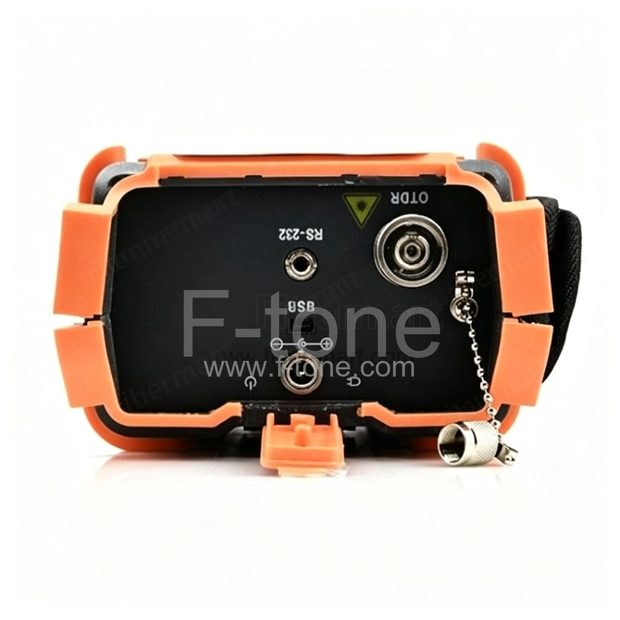

ST3200 Single-Mode 1310nm/1550nm±20nm, 28/26dB
Description
ST3200 OTDR (Optical Time Domain Reflectometer) is an intelligent optical fiber communication tester. This tester is easy to use and portable, which has a 3.5-inch color LCD touching screen. It also possesses events intelligent analysis and more user-friendly operation.It is an ideal test instrument for the fiber testing and troubleshooting. It can test the length of optical fiber and optical fiber cable attenuation coefficient. It can exactly display the loss distribution curve of the optical fiber and cable as well as the loss between two points and the joint loss. It also can test the distance between two points and the position of joint, fault point as well as breaking point. This tester has VFL (Vision Fault Locating) system. So it becomes convenient to test the fault location of jumper wire.
Features
- Test the distance between two points and dynamically display the distance between two cursors
- Test the loss between two points and the loss constant of the optical fiber and cable
- Test the joint loss
- Auto-optimization and quick response
- Search for the event points automatically
- The function of wave form storage: it can store the wave form data and test condition into the disk and the stored information also can display again.
- Support the function of copy: it can copy the data file which is built in the internal disk into the U-disk directly.
Compositions of the tester
Basic composition
| Items | Names | Quantity |
|---|---|---|
| host | ST3200 OTDR | 1 |
| Standard accessory | Battery charger | 1 |
| User manual | 1 | |
| CD (including ST3200 imitated analysis software) | 1 | |
| Multifunctional optical fiber adapter | 1 | |
| Plastic package | 1 |
Optional modules
| Order numbers | Operating wavelength | Type of the testable optical fiber | Dynamic range （SNR=1） |
|---|---|---|---|
| ST3200-3528 | 1310nm/1550nm | SMF | 28/26dB |
| ±20nm | Single-mode |
Options
| NO. | Names | Type and specification | Specification |
|---|---|---|---|
| 1 | U-disk | USB2.0 | Store the test data |
| 2 | Flexible wire of single mode optical fiber | Patch cord | |
| 3 | FC-ST patch cord | Patch cord | |
| 4 | FC-SC patch cord | Patch cord | |
| 5 | FC-APC patch cord | Patch cord |
General Specifications
| Opticaloutputconnector | FC-PC(standard) |
|---|---|
| Displayscreen | 320×2403.5inchcoloredLCD(touchscreen) |
| Port | USBport |
| Powersupply | AC/DC(AC100~240V,50/60Hz),DC:8.4V,1.0A |
| 5200mAHoflithiumbattery | |
| Environmentalrequirement | Workingenvironmenttemperature:0~40℃ |
| Storingenvironmenttemperature:-20~60℃(excludethebuilt-inbattery) | |
| Relativehumidity:(5～95)%±5%(non-condensing) | |
| Dimension | D×W×H:200mm×100mm×60mm |
| Weight: | about1kg |
| Durationofthebattery | About10hours |
Key Tech Specifications
| Wavelengths | 1310nm/1550nm±20nm |
| FiberUnderTest | singlemode |
| Range(km) | 0.5,1,2,4,8,16,32,64,128 |
| Workingwidthhalf-amplitudepulse(ns) | 10,80,160,320,640,1280,2560,5120,10240 |
| WorkingCurrent | 450-600mA |
| PowerConsumption | About4W |
| EventDeadZone | ≤5m |
| DynamicRange | 28/26dB |
| TheVFLoutputpower | >1.5mW(testtemperature:23℃±2℃) |
| Thecapacityofstorage | ≥500result |
| Thehighestsamplingdistinguishability | 0.25m |
| Refractiveindexofopticalgroup | Adjustfrom1.3-1.5 |
| Correctioncoefficientofopticalfiber | Adjustfrom0.8-1.0 |
| Theaccuracyoftestinglength | ±(1m+samplinginterval+testvalue×0.05%)(excludingtheerrorduetorefractiveindex). |
| Theaccuracyoftestingloss | ±0.075dB |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
