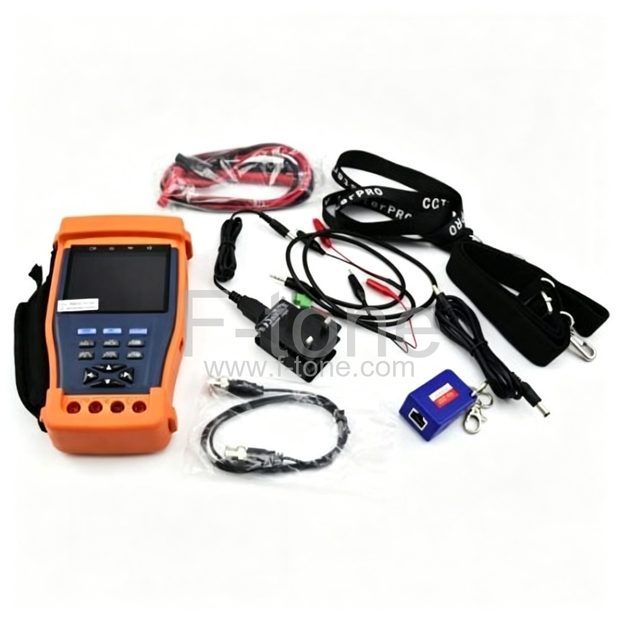

STest-890 2.8' TFT-LCD Monitor CCTV Security Camera Tester

Part Number: STest-890

STest-890 2.8" TFT-LCD Monitor CCTV Security Camera Tester

Introduction

The STest-890 is developed for the installation and maintenance of video monitoring system. It can be used for displaying video, controlling PTZ, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and convenient portability enable it simple for the contractor to install and maintain the video camera, promote working efficiency and cost-down the expenditure of the project.

Features

• 2.8"TFT-LCD , 960(H)×240(V)resolution.
• PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position
• PTZ continuing rotate test
• Video displaying. Automatically adapts and displays the video format of NTSC/PAL.LCD Brightness /
• Contrast /Color Saturation are adjustable.
• Video Level testing, video signals measured in IRE or mV
• Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-system colorful imagines)
• Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem.
• Cable testing. It is powerful in testing LAN cable, measuring the connecting status, displaying the sequence of connection and the NO. of the LAN cable.
• Multi-interface and Multi-baudrate. Support RS232, RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps.
•Multi-protocol. Supports more than twenty PTZ protocols, for example, PELCO-P, PELCO-D, SAMSUNG etc
• PTZ address scanning, search up the ID of PTZ camera.
• Lithium Ion Polymer Battery (3.7V DC2000mAh). The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 11 hours for normal use after charging for 4 hours.

Application

CCTV system installation and maintenance
Dome camera and All in one camera testing
The CCTV transmitting channel testing
PTZ controller

Accessories

1x CCTV Tester
1x Rechargable Li-ion Battery (built-in)
1x Carrying Bag
1x LAN Cable Tester
1x BNC Cable
1x RS485 Data Cable
1x Safety Cord
1x User Manual
1x A/C Adapter (100-240V, with plug for worldwide use: US, AU, UK or Europe)

Family Comparison

Specification

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
