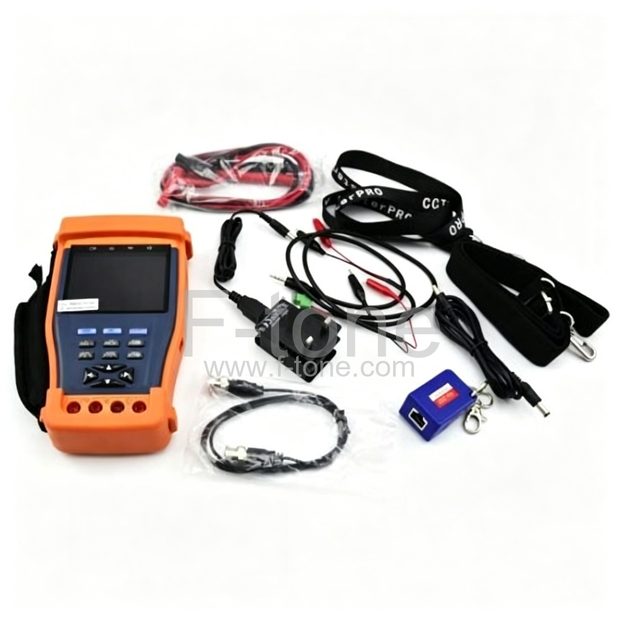

CCTV Security Tester STest-893 with PTZ Controller and Power Supply 3.5 inch

Part Number: STest-893

3.5 inch CCTV Security Tester STest-893 with PTZ Controller and Power Supply

Introduction

The CCTV testerPRO STest-893 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, testing video level, controlling PTZ, scanning PTZ address, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and portability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.

Features

3.5"TFT-LCD, 960 (H) × 240(V) resolution
DC12V power output
Audio input
Adjustable brightness, contrast, color of LCD
Video Level testing, video signals measured in IRE or mV
Automatically identify and adapt the video mode of NTSC and PAL
Colorbar Video signal generator, transmit/receive colorful images
Support more than twenty kinds of PTZ controller protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc
PPTZ address scanning, search up the ID of PTZ camera.
Capture the PTZ protocol to assist the setting personnel to find out the control protocol and therefore easily target the problematic equipment.
Support RS232 and RS485 interface, the rate 150-19200bps
Powerful in testing LAN cable, measuring the connecting status and displaying the sequence of connection
PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the camera, adjust the aperture, foci and setting parameters, run and call the preset.
Lithium Ion Polymer Batteries (3.7V DC3000mAh), more reliable, and work 15 hours
Easy for use that the train is almost unnecessary

Application

CCTV system installation and maintenance
Dome camera and All in one camera testing
The CCTV transmitting channel testing
PTZ controller
