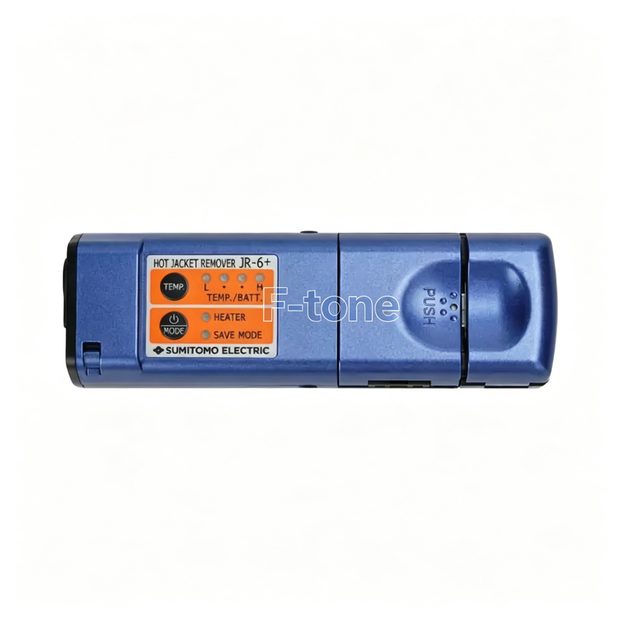

Sumitomo JR-6+ Fiber Heat Jacket Stripper Used for mass fiber stripping

Part Number: Sumitomo-JR-6+

Sumitomo JR-6+ Thermal Fiber Jacket Stripper for Ribbon or Single fiber stripping

Thermal jacket remover, compatible with 250μm and 200μm coated fibers. Compatible with Sumitomo Electric's bare single fiber and ribbon holders.

Sumitomo Electric introduces the industry’s first hot jacket remover with IPX1 waterproof protection. With both shock-resistant and waterproof features, the JR-6+ is designed for optimum performance for easy fiber coating removal in harsh work environments.

This lightweight and compact, yet rugged, jacket remover also features 4 temperature settings for maximum performance control. Designed for user friendliness, the JR-6+ includes a console panel located on top of the remover for ease of operation, bright LED lighting for easier viewing of remover settings, and power save and auto power off functions. The JR-6+ can be powered by the fusion splicer’s 12V DC output, the AC/DC adapter included, or the internal rechargeable battery.

The remover features an ergonomic design for improved maneuverability, thereby eliminating hand fatigue. The required stripping force has been reduced 30% compared to other conventional stripper tools — making the JR-6+ the industry’s most advanced, rugged, and user-friendly optical fiber jacket remover.

JR-6+ Thermal Jacket Stripper Features

• Industry’s First Hot Jacket Remover with IPX1 (Waterproof Protection; Class1) as Defined by JIS C0920
• Easy Fiber Coating Removal
• Lightweight, Shock Resistant, Portable, Rugged Design
• Fast Temperature Stabilization to Reduce Warm-Up Time
• 2-12 Fiber Ribbons or Single Fiber Stripping
• 3-Way Power Supply (Battery, AC/DC, and Fusion Splicer’s 12V DC Output)
• Compact Handheld Design
• Field Replaceable Blades
• Rechargeable Lithium-Ion Battery
• Internally Charges the Battery While Externally Powered
• RoHS Compliant

Thermal jacket remover, compatible with 250μm and 200μm coated fibers. Compatible with Sumitomo Electric's bare single fiber and ribbon holders.

Specifications

* Specifications are subject to change without prior notice.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
