Part Number: SUN-Mars-SAT-MT

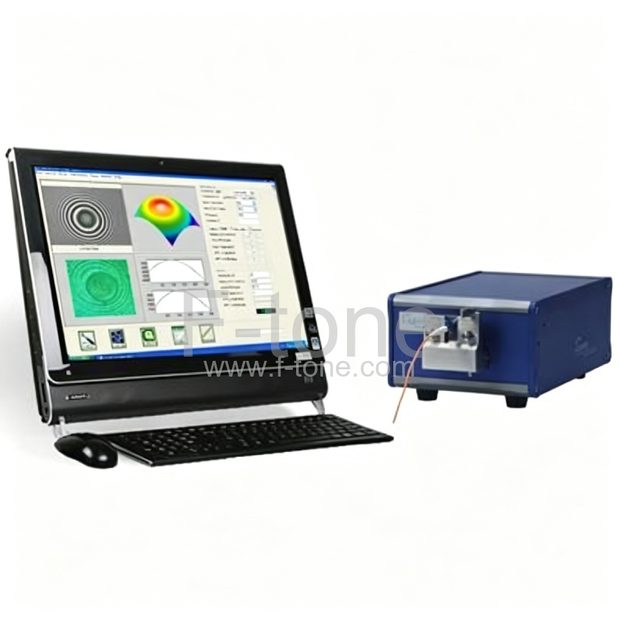

SAT-MT Multi-Channel Interferometer
SAT-MT multi-channel fibre system is a type of automatic non-contact Interferometer specially developed for measuring the geometrical dimension of multifiber ferrule end-face. It can supply the Three-dimensional topology image rapidly by combining the newest high-speed computer and powerful software system.
SAT-MT has a 1600µm wide view, which can test up to 72 cores within one minute, which makes it the most speedy, accurate and simultaneous system in the latest market. The reliable accurate repeatable testing reports are suitable for either technology process or mass production. The patently designed fixture including MT、MTP、MPO、Mini-MT、MT-RJ and custom-tailor ferrules can fit any testing request of any terminals.
1.No-contact white light interferomter
2.Fast auto-focus
3.One key operation,test automatically
4.Vabration insensitive
5. Cost efficient
6. All type of PC and APC multifiber connector compatible
7. Support English inter-face
| Measurement Parameters | Measurement range | Repeatability | Stability |
|---|---|---|---|
| ROC (mm) | 3~60 | 0.3% | 0.5% |
| Fiber High (nm) | 0 To 8 | 0.01 | 0.02 |
| X、Y Endface Angle (°) | 0°(PC) or 8°(APC) | 0.01 | 0.02 |
| Test Speed (s) | 10s for an MT-12 ferrule | ||
| Auto-focus Speed (s) | 5s | ||
| Wavelength (nm) | White LED | ||
| Power | 24V DC Adaptor | ||
| Weight (kg) | 5.5Kgs(Mainbody) | ||
| Size (cm) | L30*W12.5*H10 | ||
