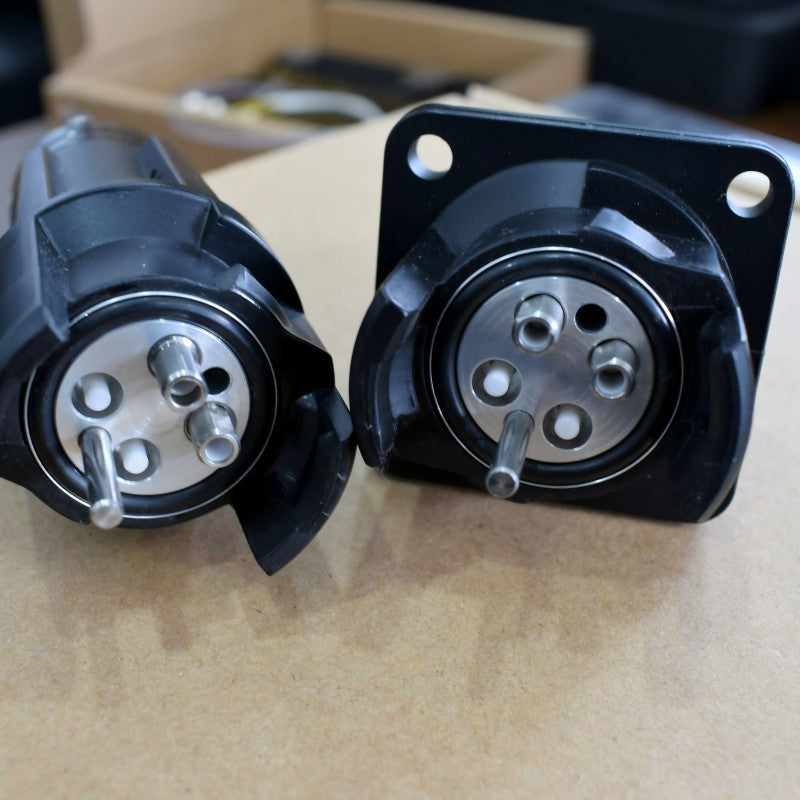

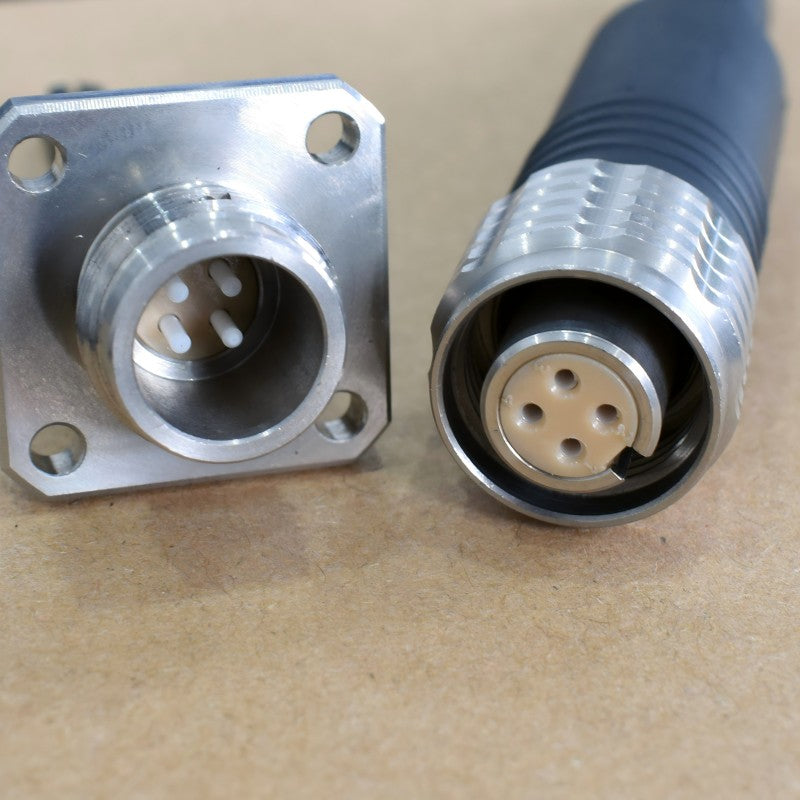

TAJIMI Hybrid Cable Assemblies
● DTV / HDTV camera systems
● Graphics transmission systems
● Outdoor / indoor monitoring systems
● LAN systems
● Industrial robotics
Features
● The three-guide-ball "push-pull" one-touch locksystem is adopted assuring a reliable connection
and ease-of- use. Different from a threaded system,this system has advantages such as a snap feeling that confirms locking, less metal wear and superiorreproducibility. Found in a wide variety of industrial
applications.
● The System enables power supply in addition to transmission of optical and electric signals.
● Suitable for a wide variety of applications with flexible combinations in the range from 2 optical pins, 4 electric pins, and 6 optical pins.
● Ultra-tight waterproof in the connected state with heavy duty use. Superior weather-proof feature with protection boots and a waterproof cap.
● Excellent cable connection strength suitable forcabling in the field. Mechanical cable connecting system which withstands environmental changes.
● Coaxial shield processing structure resistant to external noises caused by electric signals or a power source.
● Cable assemblies such as compound multi-cable,and fiber cords with FC- and SC-type connectors are also available
TAJIMI Plug Receptacle / Receptacle Drawing
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
