Part Number: TAP-2MTM12LC-5510GSM

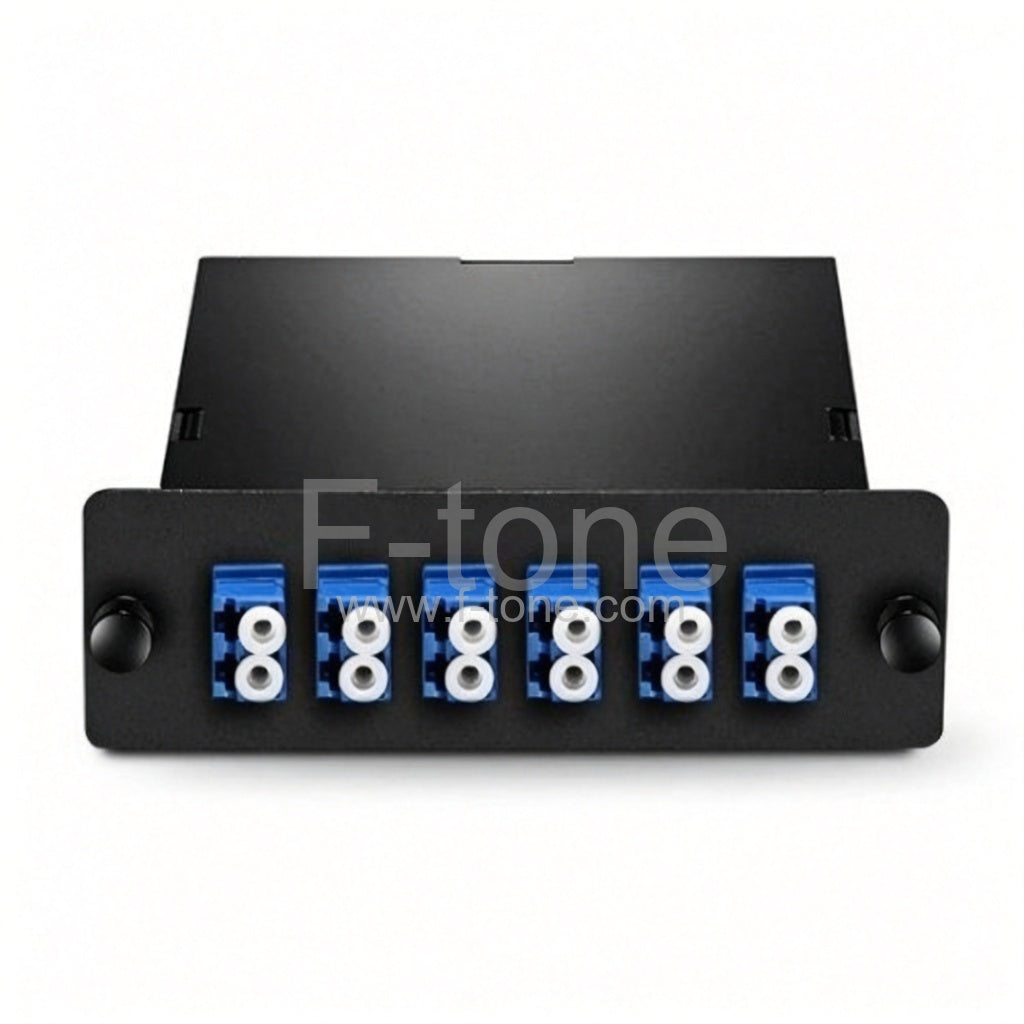

2x MTP Male to 6x LC Duplex, 50/50 Split Ratio, 12 Fibers, SingleMode 10GBASE TAP Cassette
FHD series MTP® fiber cassette modules offer 12-fiber MTP® adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high density fiber cable assemblies for multiple applications.
The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
Item Spotlights
Description
| Fiber Count | 12 Fibers | Fiber Mode | OS2 9/125μm |
|---|---|---|---|
| Front Connector Type | LC UPC Duplex (Blue) | Number of LC Port | 6 Ports |
| Rear Connector Type | US Conec MTP® APC (Pinned) | Number of MTP® Port | 1 Port |
| MTP Adapter | Key Up to Key Down | Housing Type | Cassette |
| Material of Sleeve | Zirconia Ceramic | Material of Cassette Body | Aluminium (AL5052) |
| Polarity | Type A | Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
| Insertion Loss | MTP≤0.35dB, LC≤0.2dB | Return Loss | MTP≥60dB, LC≥50dB |
| Standard | RoHS Compliant | Application | Matching for FHD Series Enclosures |
Product Highlights
FHD fiber optic cassettes snap quickly into the enclosures and modular design makes it easier to deploy or expand your infrastructure as your future network speed rates grow.
Clear Numbering
Visible port identification helps to follow array connection
Push-lock Rivets
Tool-less snap installation for easier moves, adds, and changes
Zirconia Ceramic Sleeves
High precision to ensure maximum connection between cables
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
