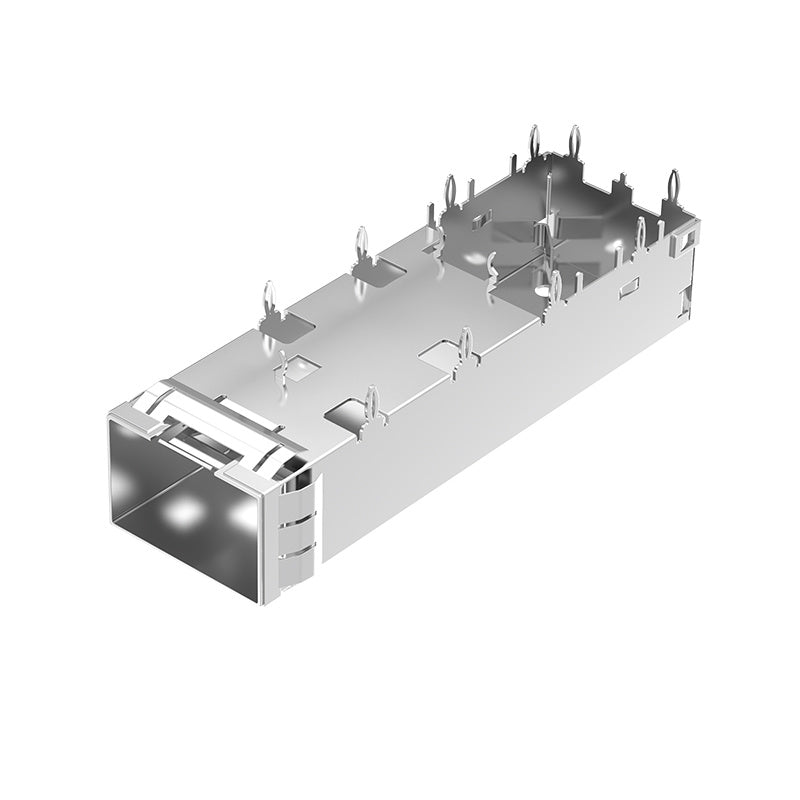

TE 2007198-1 Compatible F-tone FT11BC02000D SFP+ 1x1 Cage With Grounding Pin
The FT11BC02000D SFP+ 1×1 cage connector is a high-reliability, press-fit SFP+ cage assembly compatible with TE 2007198-1, designed for high-speed networking equipment requiring stable mechanical retention, EMI protection, and robust signal integrity. Featuring a copper alloy, nickel-plated structure, it ensures durability and long-term performance in demanding telecom and data communication environments.
This SFP+ cage supports standard SFP+ optical and copper transceiver modules, providing a secure interface for high-bandwidth networking applications. Its through-hole, right-angle press-fit design delivers strong PCB anchoring and consistent electrical performance, making it suitable for high-frequency signal transmission systems.
Equipped with EMI spring grounding and shielding features, the FT11BC02000D reduces electromagnetic interference and enhances signal stability in dense electronic layouts. The integrated grounding pin improves electrical performance and system reliability, particularly in high-speed networking environments.
Designed for industrial-grade applications, it supports an operating temperature range of -55°C to +85°C, ensuring stable performance under harsh environmental conditions. Tray packaging supports efficient automated manufacturing and high-volume production.
| Part Number | FT11BCS2000 | TE Part Number | 2110304-1 |
| Connector Style | Cage | Connector Type | SFP+ |
| Cage | COPPER ALLOY, Ni PL ATED | PACKAGING | TRAY PACKAGING |
| Port Matrix Configuration | 1x1 Port | Number of Ports | 1 |
| Operating Temperature Range | -55 – 85°C | Mounting Style | Through Hole, Right Angle |
| Included Lightpipe | - | Termination | Solder |
| Height (Inches/mm) | 9.70/0.382 | Length (Inches/mm) | 48.70/1.917 |
| Width (Inches/mm) | 14.75/0.581 | EMI Containment Feature Type | EMI Springs |
