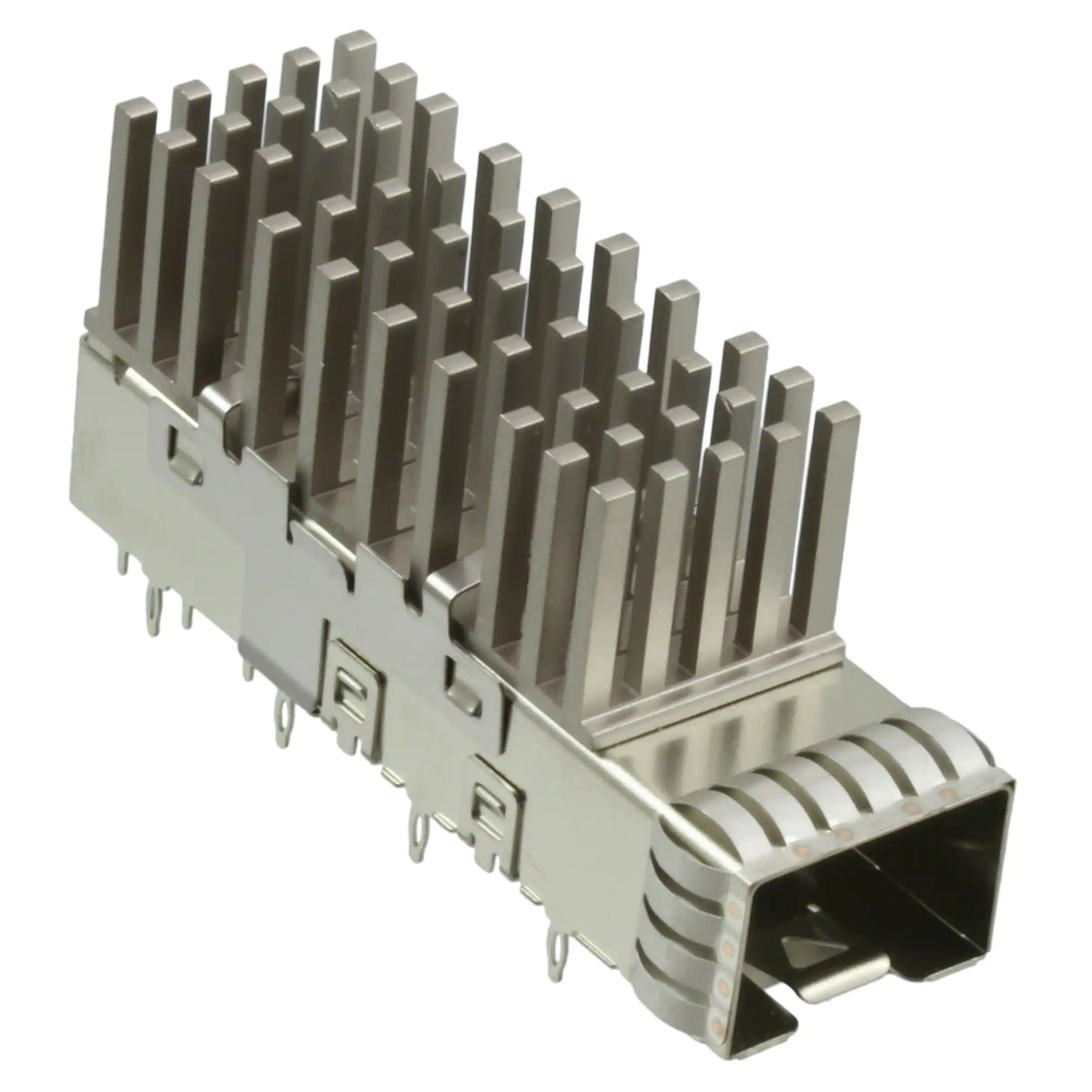

TE 2007464-3 1x1 zSFP+ Cage Assembly with 13.5mm Pin Heat Sink
Engineered to resolve extreme thermal and signal integrity challenges in next-generation telecommunications and high-density data center infrastructure, the TE 2007464-3 is a premium 1x1 (single-port) zSFP+ cage assembly. Designed to house high-speed Small Form-factor Pluggable (SFP+ and zSFP+) optical transceivers and direct-attach copper (DAC) cables, this highly durable mechanical receptacle reliably supports data transmission rates up to 16 Gb/s. To aggressively combat the intense localized heat generated by high-frequency 10GbE and 16G Fibre Channel optics, this cage integrates a massive, precision-engineered 13.5mm [0.531 in] pin heat sink, providing superior omnidirectional passive thermal dissipation.
Constructed from a premium Nickel Silver Alloy, this cage assembly delivers intrinsic structural rigidity and outstanding resistance to oxidation across an extreme military-grade temperature range of -55°C to 105°C. Utilizing a highly reliable solderless Through Hole Press-Fit mounting mechanism and an advanced Elastomeric Gasket for EMI containment, this assembly provides hardware architects with a mission-critical physical layer housing for core routers, ruggedized edge computing enclosures, and high-performance networking chassis.
TE 2007464-3 Cross-Reference & BOM Optimization
Developed as an exact form-fit-function compatible replacement for the TE Connectivity 2007464-3, this zSFP+ cage empowers hardware architects and procurement teams to secure their supply chains and mitigate component shortages. Delivering an identical PCB footprint, equivalent thermal performance, and matched mechanical characteristics, it serves as a seamless drop-in alternative. It integrates flawlessly into high-speed, automated assembly lines without the need for costly printed circuit board (PCB) redesigns or mechanical chassis alterations.
Typical Applications
Combining 16 Gb/s bandwidth support, massive omnidirectional pin-style thermal management, Elastomeric Gasket EMI sealing, and extreme temperature resilience, this 1x1 zSFP+ cage assembly is the definitive physical layer solution for high-performance hardware:
- Data Center Infrastructure: 10GbE / 16GFC Top-of-Rack (ToR) switches, aggregation routers, and high-density blade servers supporting Belly-to-Belly configurations with turbulent internal airflow.
- Telecommunications & Edge: 5G baseband processing units (BBUs), optical transport network (OTN) equipment, and ruggedized outdoor telecom cabinets lacking active climate control.
- Storage Area Networks (SAN): 16G Fibre Channel enterprise storage arrays and high-throughput host bus adapters (HBAs) requiring robust, multi-directional thermal dissipation and dust sealing.
- Defense & Aerospace: Mission-critical communication hubs requiring military-grade temperature tolerances (-55°C to 105°C) and vibration-resistant press-fit mountings.
Technical Specifications
| F-tone Part Number: | 2007464-3 | Part Status: | Active |
| Connector Style: | Cage with Heat Sink | Connector Type: | SFP+ (Small Form-factor Pluggable Plus) |
| Data Rate (Max)(Gb/s): | 16 GB/S | Mounting Type: | Through Hole, Right Angle |
| Termination Method: | Press-Fit | Features: | EMI Shielded, Thermal Management |
| Port Matrix Configuration: | 1x1 Ports | Number of Ports: | 1 |
| Connector Mounting Type: | Board Mount | Heat Sink Type: | Pin (Height: 6.5 mm / 0.256 in) |
| Operating Temperature: | -55°C to 105°C (Extended Grade) | Pluggable I/O Applications: | SFP+ Stacked Belly-to-Belly |
| Circuit Application: | Signal | EMI Containment Feature: | External EMI Springs |
| Included Lightpipe: | NO | Cage Material: | Nickel Silver Alloy |
| PCB Thickness (Recommended): | 2.25mm [0.089in] | Tail Length: | 2.05mm [0.081in] |
