TE Connectivity 2110742-1 Compatible SFP+ 1x6 Cage Assembly Technical Overview

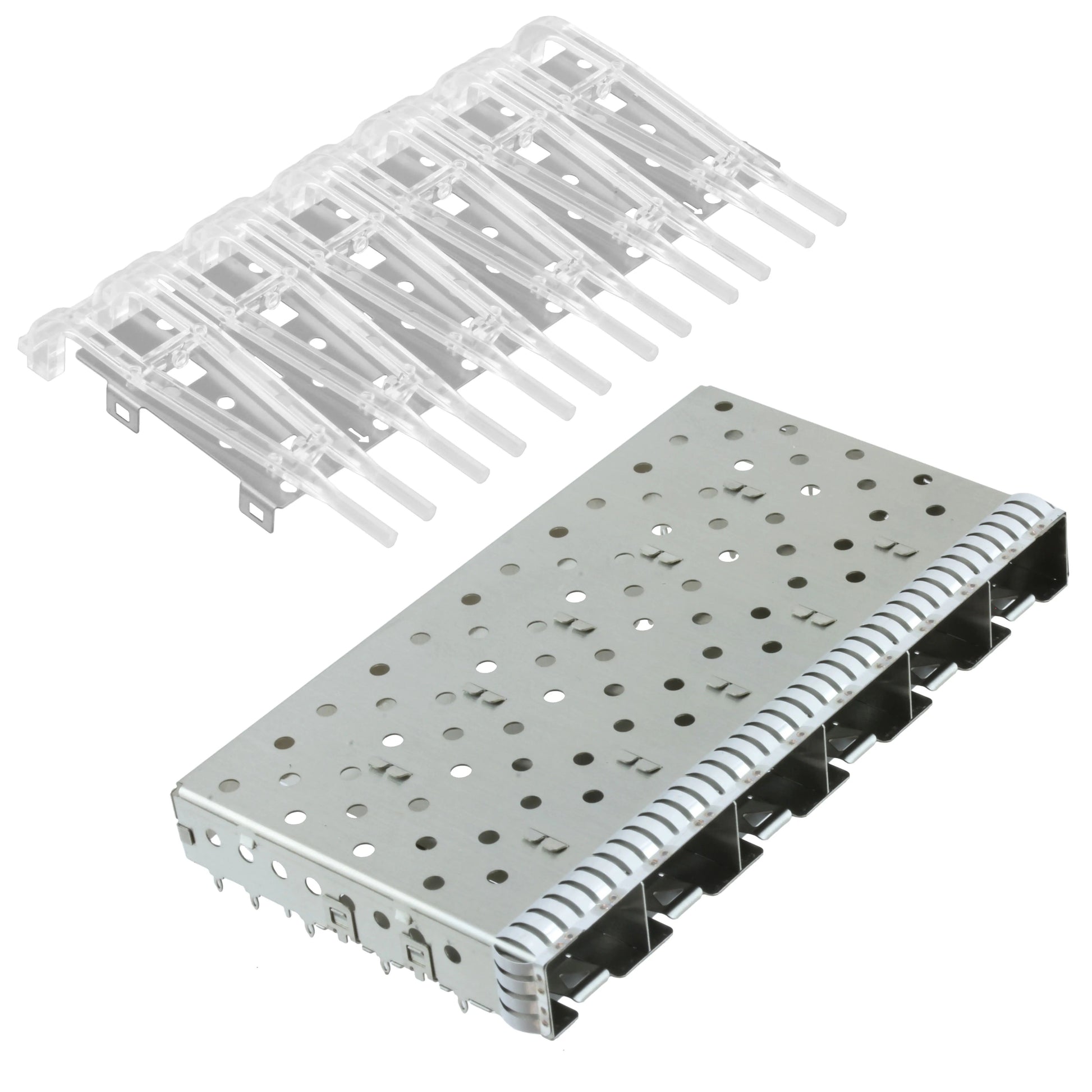

The TE Connectivity 2110742-1 is a 1x6 ganged SFP+ 6-port cage assembly with integrated low-profile dual round lightpipes designed for TE Connectivity 2110742-1 compatible applications in high-density 10Gb/s Ethernet and 16Gb/s Fibre Channel systems. Featuring solderless press-fit PCB mounting, a nickel silver housing, and external metallic EMI spring shielding, it combines ultra-dense 6-port I/O consolidation, real-time visual LED link status indication, and reliable chassis grounding for enterprise storage directors, core switches, and telecom infrastructure.
- Mechanical Form Factor: 1x6 Ganged Single-Row 6-Port SFP+ Cage Assembly with integrated low-profile dual round lightpipe optics.
- Signal Ecosystem Support: Engineered for 10GbE optical transceivers, 16G Fibre Channel modules, and Direct Attach Copper (DAC) cables operating up to 16 Gb/s (SFF-8431).
- Board Mount Technology: Solderless Through-Hole Press-Fit termination with 2.05mm tail length, optimized for thick 2.25mm [.089 in] enterprise PCB substrates.
- Alternative Sourcing Option: Multi-source engineering options are available to support secondary sourcing strategies, BOM cost optimization, and supply chain flexibility.
| Part Number | 2110742-1 | Part Status | Active |
| Connector Style | Cage, Ganged (1 x 6) | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | 16 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x6 Ports | Number of Ports | 6 |
| Number of Rear EONs per Port Column | - | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ |
| Circuit Application | Signal | EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | Yes | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 2.25mm[.089in] | Tail Length | 2.05mm[.081in] |
