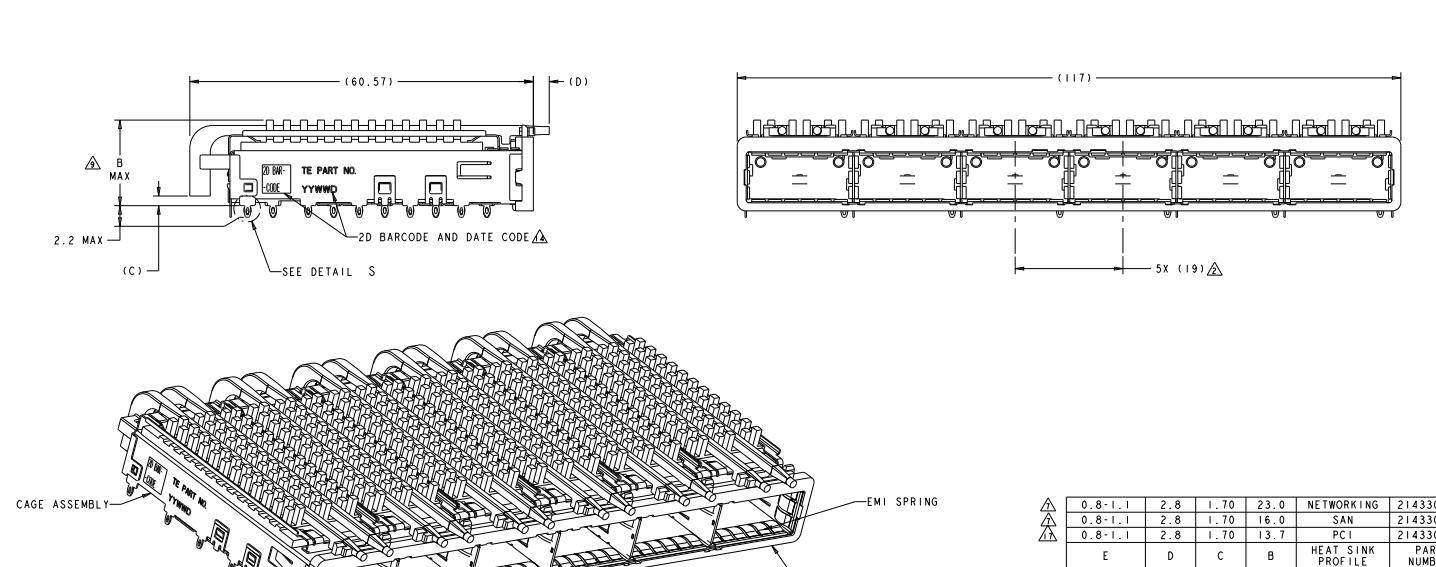

2143307-1, QSFP, Cage Assembly, 1 x 6, Customer Applied Gasket, Included Lightpipe, Standard, Data Rate (Max) 14 Gb/s, 6 Port
| Part Number | 2143307-1 | Part Status | Active |
| Connector Style | Cage, Ganged (1 x 6) with Heat Sink | Connector Type | QSFP |
| Number of Rear EONs per Port Column | 1 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x6 Ports | Number of Ports | 6 |
| Data Rate (Max)(Gb/s) | 14 | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | Customer Applied Gasket |
| Included Lightpipe | Yes | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 1.45mm[.057in] | Tail Length | 2.2mm[.086in] |
| PCB Thickness (Recommended) | 1.45mm[.057in] | Tail Length | 2.2mm[.086in] |
