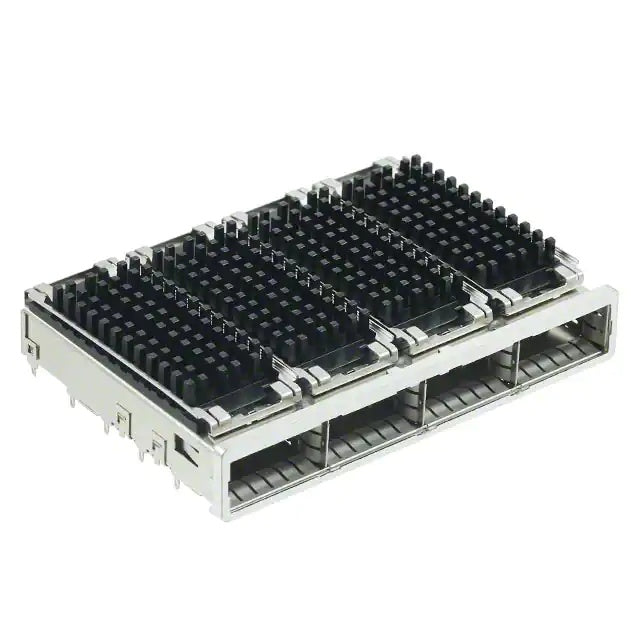

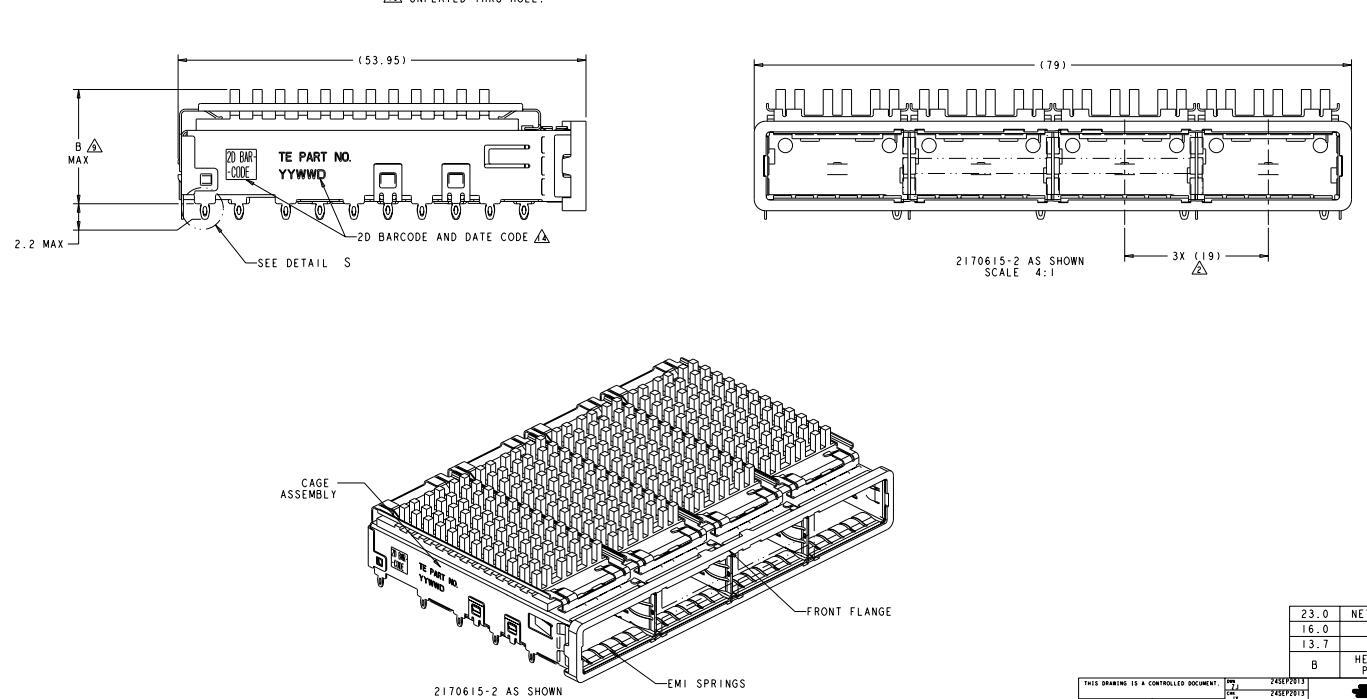

2170615-3, QSFP, QSFP+ & zQSPF+, Cage Assembly, 1 x 4, Customer Applied Gasket, Thermally Enhanced, Data Rate (Max) 14 Gb/s, 4 Port, Pin, QSFP/QSFP+
| Part Number: | 2170615-3 | Part Status | Active |
| Connector Style | Cage, Ganged (1 x 4) with Heat Sink | Connector Type | QSFP |
| Number of Rear EONs per Port Column | 1 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x4 Ports | Number of Ports | 4 |
| Data Rate (Max)(Gb/s) | 14 | Connector Mounting Type | Board Mount |
| Heat Sink Style | Pin | Heat Sink Height | 7.3mm[.288in] |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | Thermally Enhanced |
| Circuit Application | Signal | EMI Containment Feature Type | Customer Applied Gasket |
| Included Lightpipe | No | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 1.45mm[.057in] | Tail Length | 2.2mm[.086in] |
