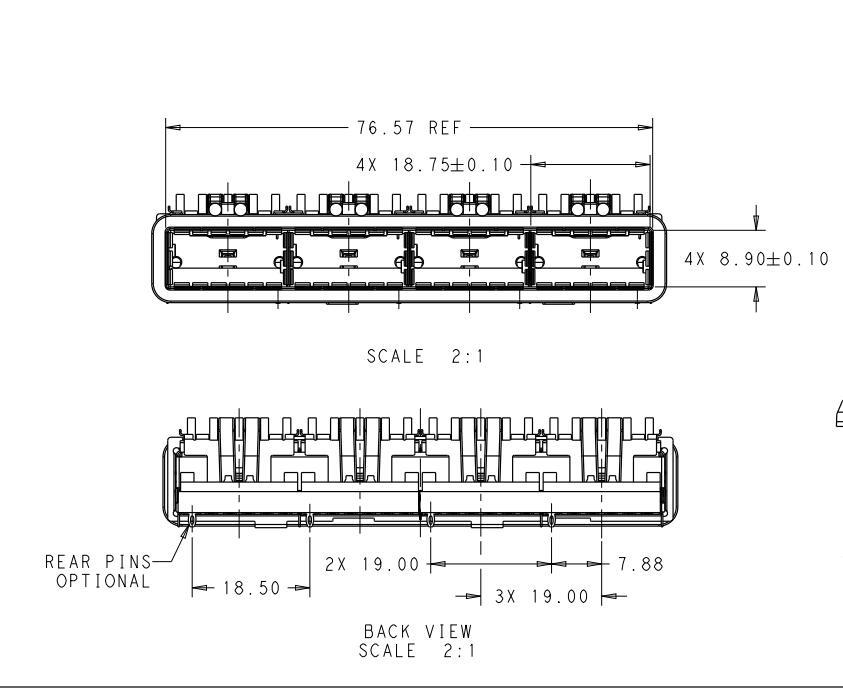

QSFP28, Cage, 1 x 2, Internal/External EMI Springs, Standard, Data Rate (Max) 28 Gb/s, 2 Port, zQSFP+
| Part Number: | 2170805-2 | Part Status | Active |
| Connector Style | Cage, Ganged (1 x 2) | Connector Type | QSFP28 |
| Number of Positions | - | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x2 Ports | Number of Ports | 2 |
| Number of Rear EONs per Port Column | 1 | Data Rate (Max)(Gb/s) | 28 Gb/s |
| Operating Temperature Range | -40 – 85°C | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | Internal/External EMI Springs |
| Included Lightpipe | No | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 1.57mm[.062in] | Tail Length | 2.05mm[.081in] |
