TE Connectivity 2198241-4 Compatible SFP+ 1x4 Cage Assembly Technical Overview
The TE Connectivity 2198241-4 is a 1x4 ganged SFP+ quad-port cage assembly combining an extra-high-profile 13.5mm pin heat sink, conductive elastomeric EMI gasket, and integrated lightpipes designed for TE Connectivity 2198241-4 compatible applications in ultra-high-power 10Gb/s Ethernet and 16Gb/s Fibre Channel platforms. Featuring solderless press-fit PCB mounting and a nickel silver housing, it provides maximum passive thermal dissipation, gapless panel grounding, visual LED link status diagnostics, and 4-port I/O consolidation for enterprise storage directors, core switches, and telecom infrastructure.

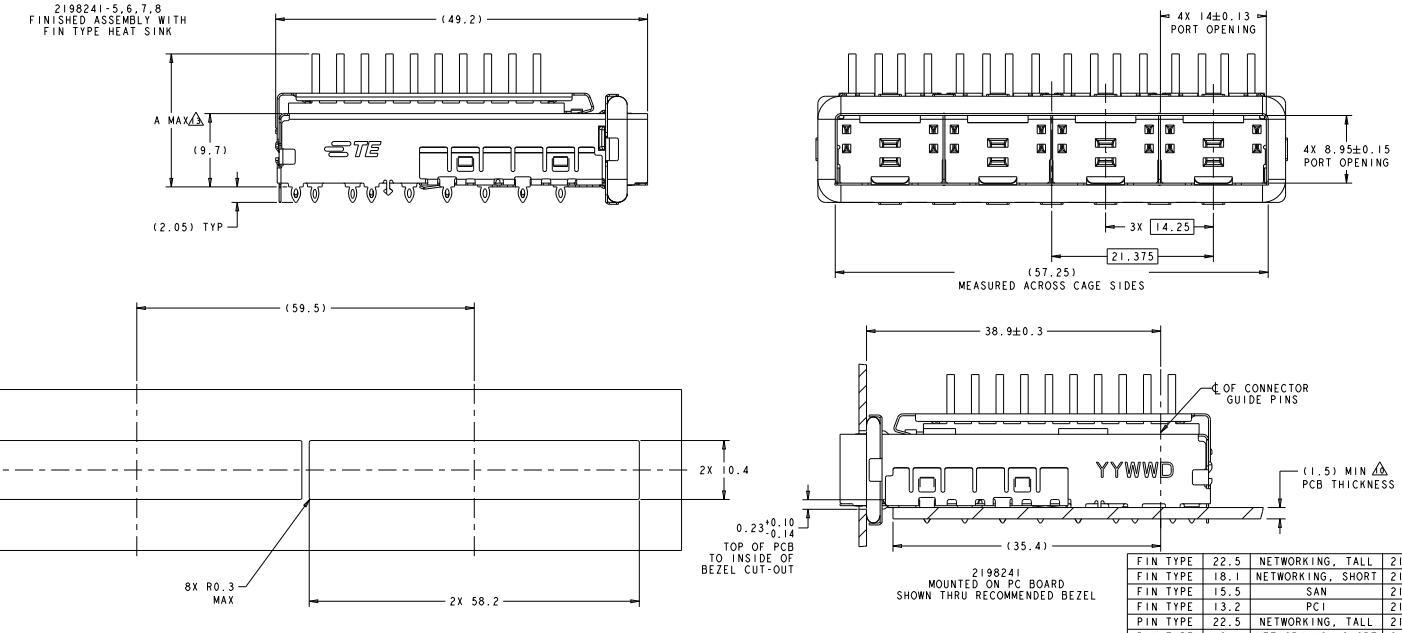

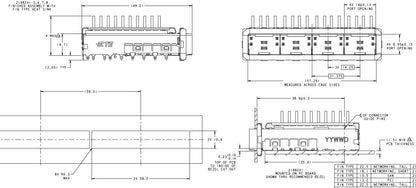

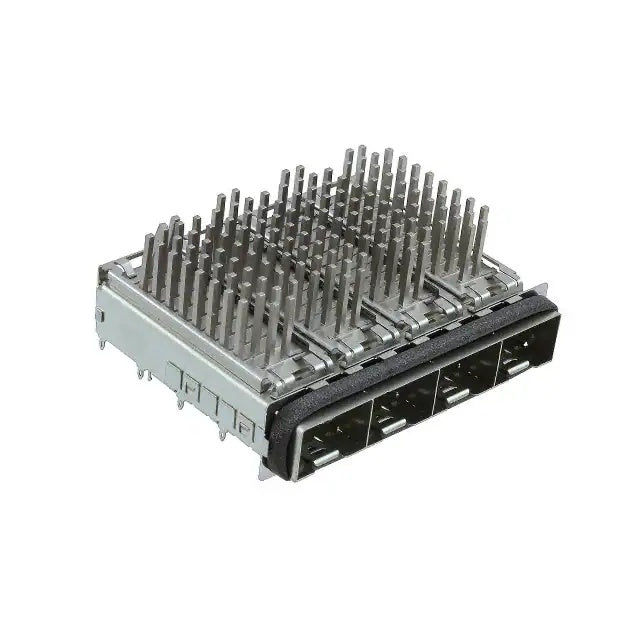

- Mechanical Form Factor: 1x4 Ganged Single-Row 4-Port SFP+ Cage Assembly with pre-installed 13.5mm [.531 in] extra-high-profile pin heat sink and integrated lightpipe optics.
- Signal Ecosystem Support: Engineered for high-power SFP+ Enhanced optical transceivers, 10GBASE-T copper RJ45 modules, and tunable DWDM ZR optics up to 16 Gb/s (SFF-8431, 10GbE, and 16G Fibre Channel).
- Board Mount Technology: Solderless Through-Hole Press-Fit termination with 2.05mm tail length, optimized for standard 1.5mm [.059 in] PCB substrates.
- Alternative Sourcing Option: Multi-source engineering options are available to support secondary sourcing strategies, BOM cost optimization, and supply chain flexibility.
Target Applications: Enterprise Storage Directors, High-Power 10G/16G Links, and Telecom
Combining SFP+ Enhanced MSA compliance, 1x4 quad-port density, elastomeric EMI shielding, a 13.5mm heat sink, and lightpipes, the TE Connectivity 2198241-4 supports demanding high-power networking deployments:
- High-Power 10GBASE-T & DWDM Transport: Optimized for quad-port line cards deploying thermal-intensive 10G copper transceivers and long-haul tunable DWDM optics requiring status LEDs.
- Enterprise Storage Area Networks (SAN): Ideal for 16G Fibre Channel core director switches, SAN expansion arrays, and storage controllers in 2RU/3RU chassis enclosures.
- Data Center Switching & Edge Compute: Deployed in 10GbE aggregation switches, carrier Ethernet routers, and high-density compute nodes requiring real-time visual link diagnostics.
| Part Number: | 2198241-4 | Part Status | Active |
| Connector Style | Cage, Ganged (1 x 4) with Heat Sink | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | 16 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x4 Ports | Number of Ports | 4 |
| Heat Sink Height | 13.5mm[.531in] | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Enhanced |
| Circuit Application | Signal | EMI Containment Feature Type | Elastomeric Gasket |
| Included Lightpipe | Yes | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 1.5mm[.059in] | Tail Length | 2.05mm[.081in] |
