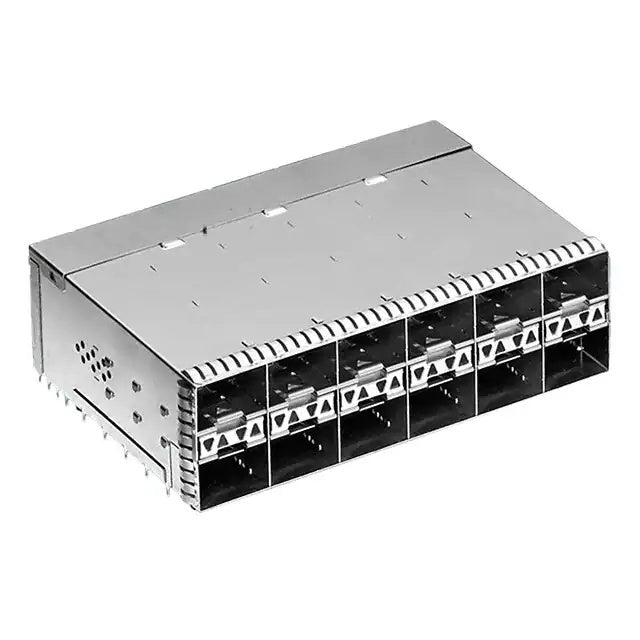

zSFP+, Cage Assembly with Integrated Connector, Data Rate (Max) 32 Gb/s, External Springs, zSFP+ Thermally Enhanced, Included Lightpipe
| Part Number | 2198339-6 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x6) | Connector Type | zSFP+ |
| Data Rate (Max)(Gb/s) | 32 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x6 Ports | Number of Ports | 12 |
| Number of Positions | 240 (20 x 12) | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | zSFP+ Thermally Enhanced |
| Circuit Application | Signal | EMI Containment Feature Type | External Springs |
| Included Lightpipe | Yes | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 1.8mm[.07in] | Tail Length | 1.5mm[.059in] |
