zSFP+, Cage Assembly, Data Rate (Max) 28 Gb/s, Elastomeric Gasket, EMI Enhanced, 1 x 2, None, Through Hole - Press-Fit Mount, 2 Port
F-tone Networks provides a drop-in compatible replacement for the TE Connectivity 2198720-1 zSFP+ cage assembly. It is designed for high-speed 25G/28G SFP28 pluggable transceiver fronts and is mechanically backward compatible with SFP/SFP+ MSA footprints.

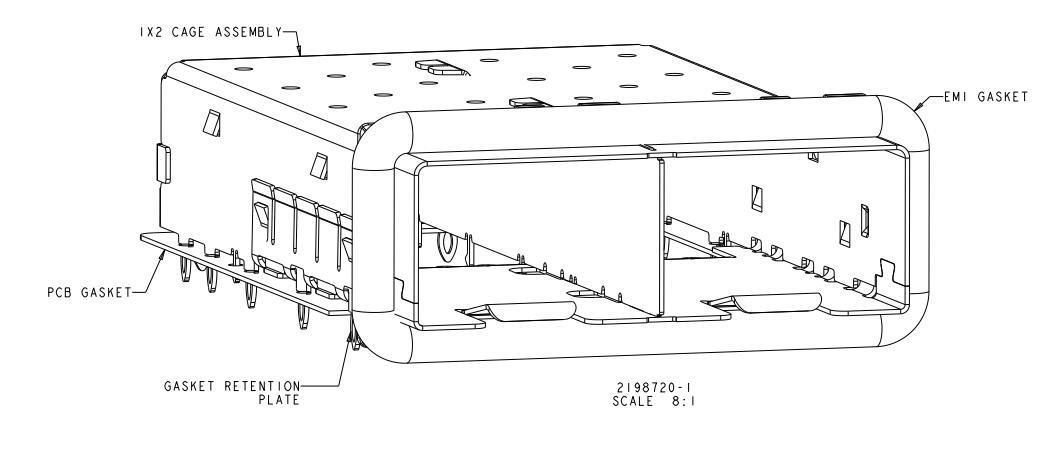

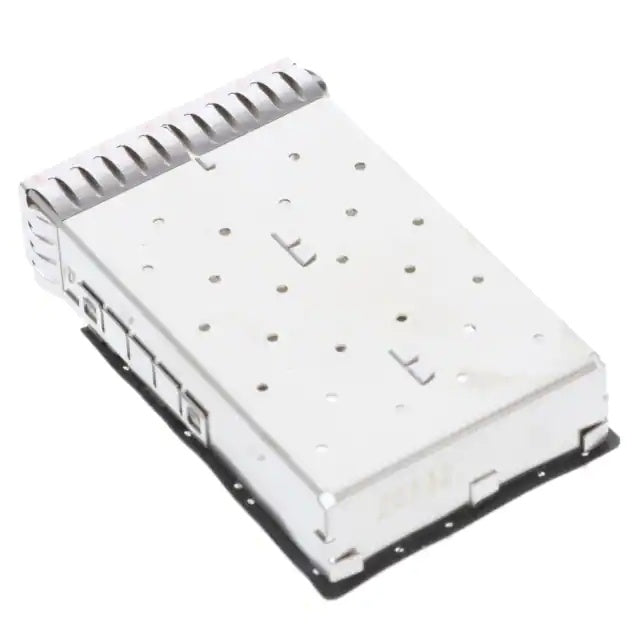

The cage features a ganged 1×2 port configuration with press-fit, through-hole, right-angle termination, enabling solder-free PCB mounting and efficient belly-to-belly stacking. The housing is constructed from nickel silver with optional EMI spring fingers; an elastomeric gasket version is available for sealed applications.
Key Specifications
1.Connector style: zSFP+ cage, ganged (1×2)
2.Termination: Press-fit, through hole, right angle
3.Data rate: up to 28 Gb/s per lane (SFP28 ready, 56G capable by structure)
4.Operating temp: -55 °C to +105 °C (signal); -40 °C to +85 °C typical
5.Cage material: Nickel silver
6.Press-fit insertion force (ganged): max 54.3 N; extraction min 8.9 N; durability 100 cycles
7.Min PCB thickness: 1.50 mm single-sided; 2.25 mm (EMI spring) / 3.0 mm (gasket) belly-to-belly
8.Options: EMI shielded, light-pipe support, heat-sink ready
Applications
Data-center switches, 25G/100G Ethernet line cards, Fibre Channel HBAs, telecom access equipment, and cost-effective cross-reference replacement for TE 2198720-1 in service/spare parts BOMs.
Technical Specifications
| F-tone Part Number | FT-219-2198720-1 | TE Part Number | 2198720-1 |
| Connector Style | Cage, Ganged (1 x 2) | Connector Type | zSFP+ |
| Product Status | Active | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x2 Ports | Number of Ports | 2 |
| Number of Rear EONs per Port Column | - | Data Rate (Max)(Gb/s) | 28 |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | Elastomeric Gasket |
| Included Lightpipe | NO | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 3mm[.118in] | Tail Length | 2.05mm[.081in] |
Contact us.
For any inquiries, please feel free to contact us. We reply within 24 hours.
📧 Email: una@f-tone.com
📱 Mobile / WhatsApp / WeChat: +86 177 6116 3895
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
