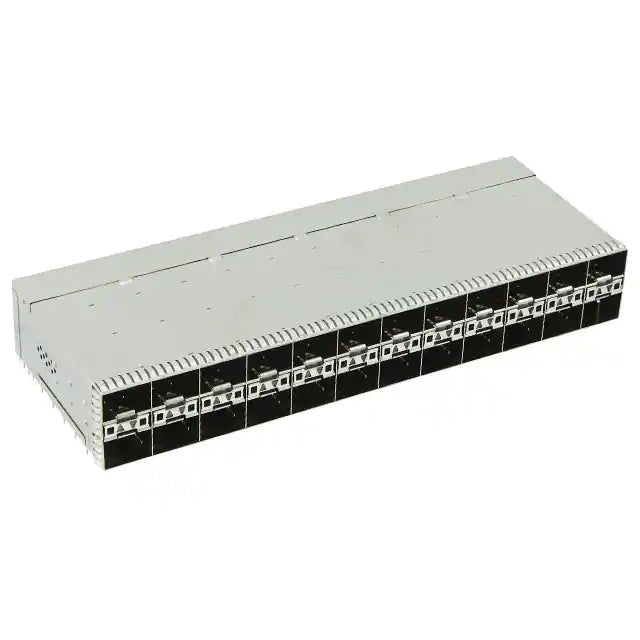

zQSPF+, Cage Assembly with Integrated Connector, Data Rate (Max) 32 Gb/s, External Springs, zSFP+ Thermally Enhanced, Included Lightpipe
| Part Number | 2227838-7 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x12) | Connector Type | ZSFP+ |
| Number of Positions | 480 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x12 Ports | Number of Ports | 24 |
| Number of Rear EONs per Port Column | - | Data Rate (Max)(Gb/s) | 32 |
| Operating Temperature Range | 0 – 70°C[32 – 158°F] | Pluggable I/O Applications | zSFP+ Thermally Enhanced |
| Circuit Application | Signal | EMI Containment Feature Type | External Springs |
| Included Lightpipe | Yes | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 1.5mm[.059in] | Tail Length | 1.8mm[.07in] |
| Included Lightpipe | Yes | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 1.8mm[.07in] | Tail Length | 1.5mm[.059in] |
