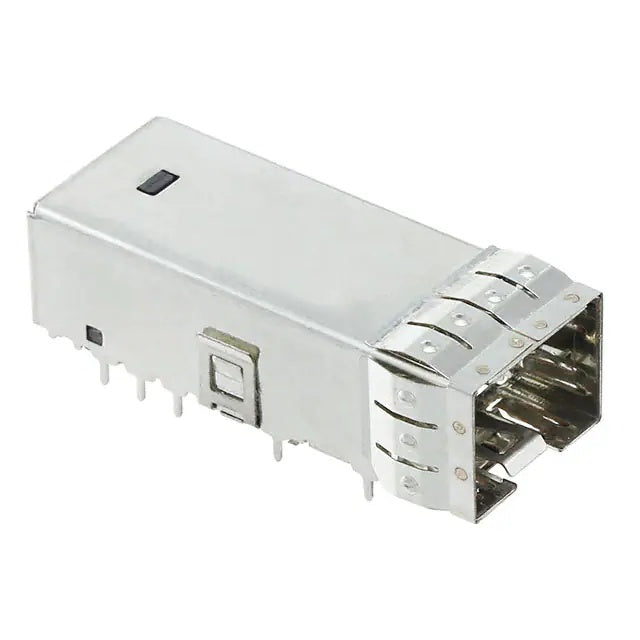

TE 2246041-1 1x1 Micro SFP+ Receptacle and Cage Assembly
Engineered to solve severe faceplate space constraints in ultra-compact networking devices, the TE 2246041-1 is a highly integrated 1x1 (single-port) Micro SFP+ cage and receptacle assembly. Purpose-built for the Micro SFP form factor, this advanced interconnect solution requires significantly less printed circuit board (PCB) real estate than standard SFP+ components, while still reliably supporting 10 Gigabit Ethernet (10GbE) data transmission rates up to 10 Gb/s. By integrating both the mechanical EMI shielding cage and the 22-position electrical receptacle into a single, pre-aligned unit, hardware architects can radically streamline manufacturing and eliminate tolerance stack-up issues.
Constructed from a premium Copper Alloy, this heavy-duty assembly delivers superior structural rigidity, high electrical conductivity, and robust mechanical durability across a military-grade temperature range of -55°C to 105°C. Utilizing a highly reliable solderless Through Hole Press-Fit mounting mechanism, the 2246041-1 provides a mission-critical physical layer housing for ultra-dense edge routers, ruggedized industrial switches, and high-performance telecommunications equipment.
Micro SFP+ Architecture & Integrated Receptacle
The Micro SFP+ form factor serves as a foundational mechanical configuration for hardware designs where standard SFP+ cages are simply too large for the available faceplate clearance.
- Integrated 22-Position Receptacle: Features an integrated 22-pin electrical interface directly within the cage. Pre-aligning the electrical connector with the mechanical housing drastically streamlines the PCB assembly workflow and ensures exact pin-to-pad alignment for flawless 10 Gbps signal integrity.
- Ultra-Compact Footprint: The Micro SFP footprint reduces the physical space required compared to standard SFP+ ports, enabling hardware engineers to pack more high-speed optical interfaces into 1U, sub-1U, and custom chassis designs.
- Streamlined Front Panel (No Lightpipes): Designed explicitly without integrated lightpipes, this cage offers a clean, unobstructed outer profile. This reduces internal trace routing complexity for applications utilizing external, chassis-mounted diagnostic LEDs.
Technical Specifications
| Part Number | 2246041-1 | Part Status | Active |
| Connector Style | Receptacle with Cage | Connector Type | SFP+, Micro |
| Number of Positions | 22 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x1 Ports | Number of Ports | 1 |
| Data Rate (Max)(Gb/s) | 10 GB/S | PCB Mounting Style | Through Hole - Press-Fit |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | Micro SFP |
| Circuit Application | Signal | EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | NO | Tail Length | 1.6mm[.063in] |
| Cage Material | Copper Alloy |
