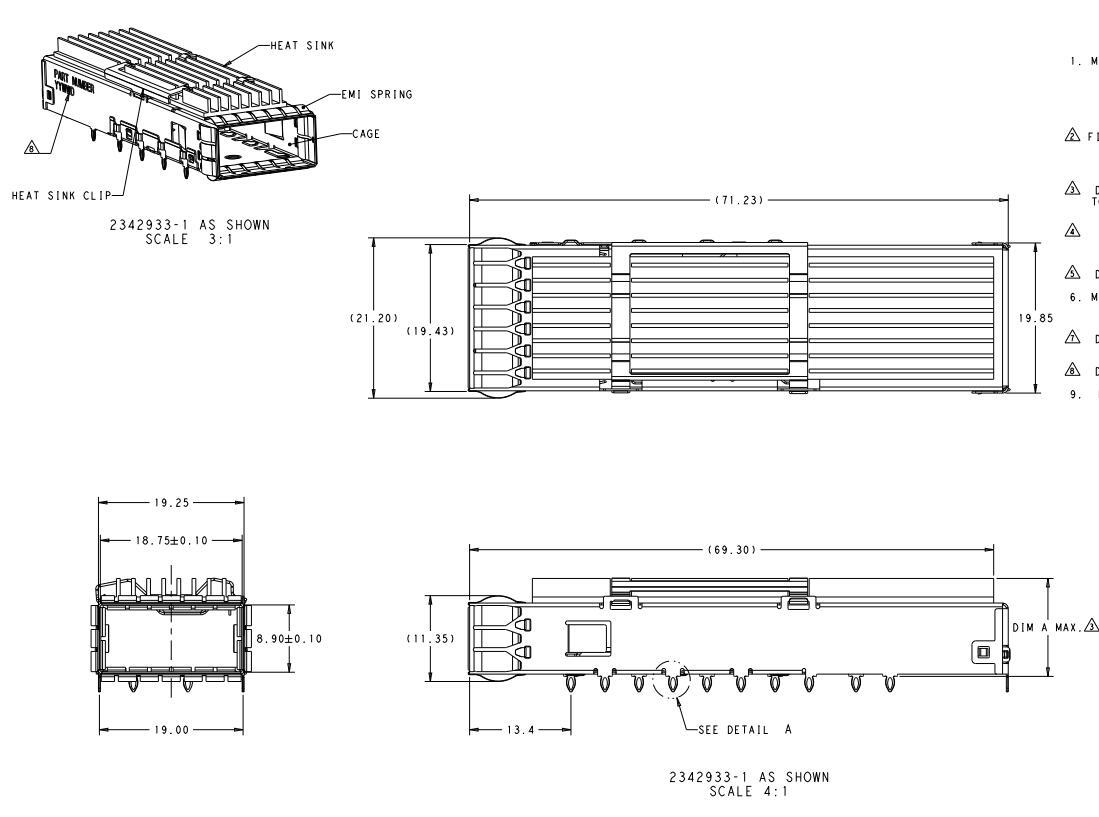

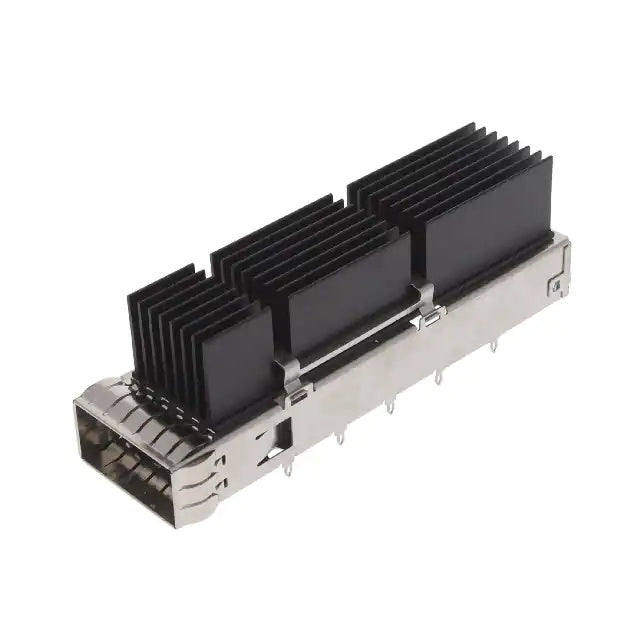

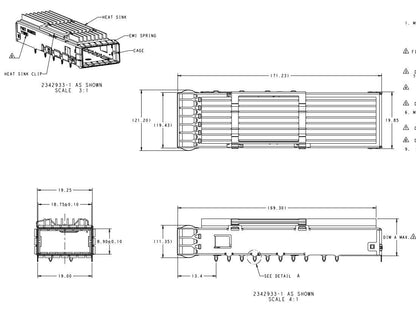

QSFP-DD, None, Single, Wire-to-Board, Printed Circuit Board, 1 x 1, 1 Port, 1 Rear EONs per Port Column, Networking, QSFP-DD
Technical Specifications
| Part Number | 2342933-3 | Part Status | Active |
| Connector Style | Cage with Heat Sink | Connector Type | QSFP-DD (Double Density) |
| Number of Positions | - | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x1 Ports | Number of Ports | 1 |
| Number of Rear EONs per Port Column | 1 | Heat Sink Height | 13.5mm[.531in] |
| Operating Temperature Range | - | Heat Sink Style | Networking |
| Circuit Application | Signal | Cage Material | Stainless Steel |
| Included Lightpipe | NO | ||
| Included Lightpipe | YES | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 1.45mm[.057in] | Tail Length | 2.2mm[.086in] |
