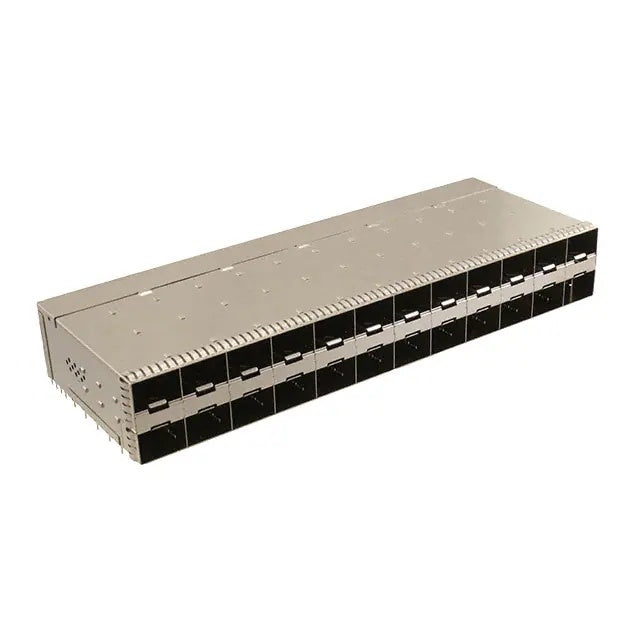

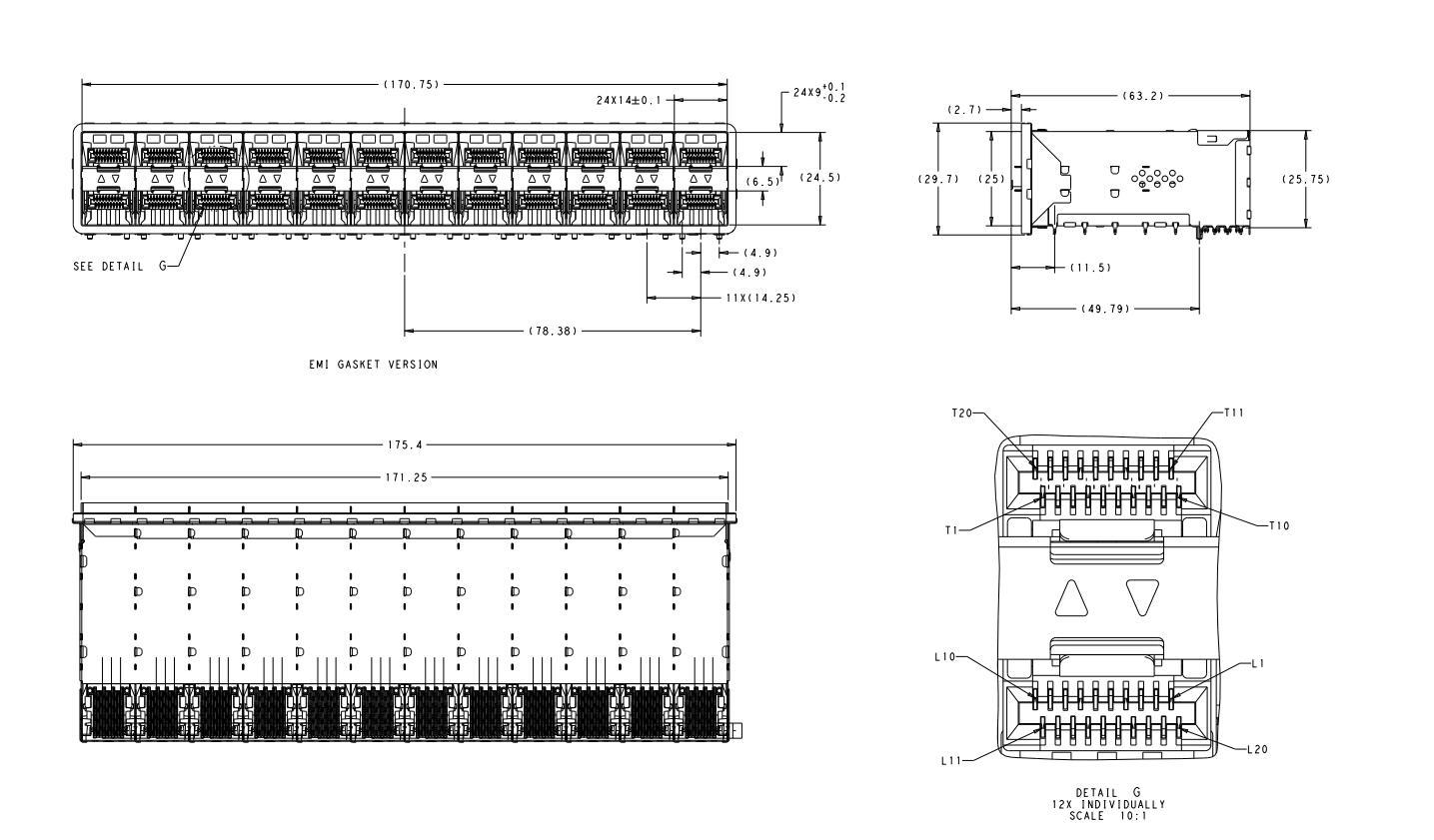

zQSPF+, Cage Assembly with Integrated Connector, Data Rate (Max) 56 Gb/s, EMI Springs, SFP28 / SFP56, 2 x 12, Integrated Lightpipes, SFP56
| Part Number | 2349201-7 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x12) | Connector Type | ZSFP+ |
| Number of Positions | 480 (20x24) | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x12 Ports | Number of Ports | 24 |
| Number of Rear EONs per Port Column | - | Data Rate (Max)(Gb/s) | 56 |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP28, SFP56 |
| Circuit Application | Signal | EMI Containment Feature Type | EMI Springs |
| Integrated Lightpipes | YES | Cage Material | - |
| PCB Thickness (Recommended) | - | Tail Length | - |
| Included Lightpipe | Yes | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 1.8mm[.07in] | Tail Length | 1.5mm[.059in] |
