Part Number: TFC-SMNA-2F

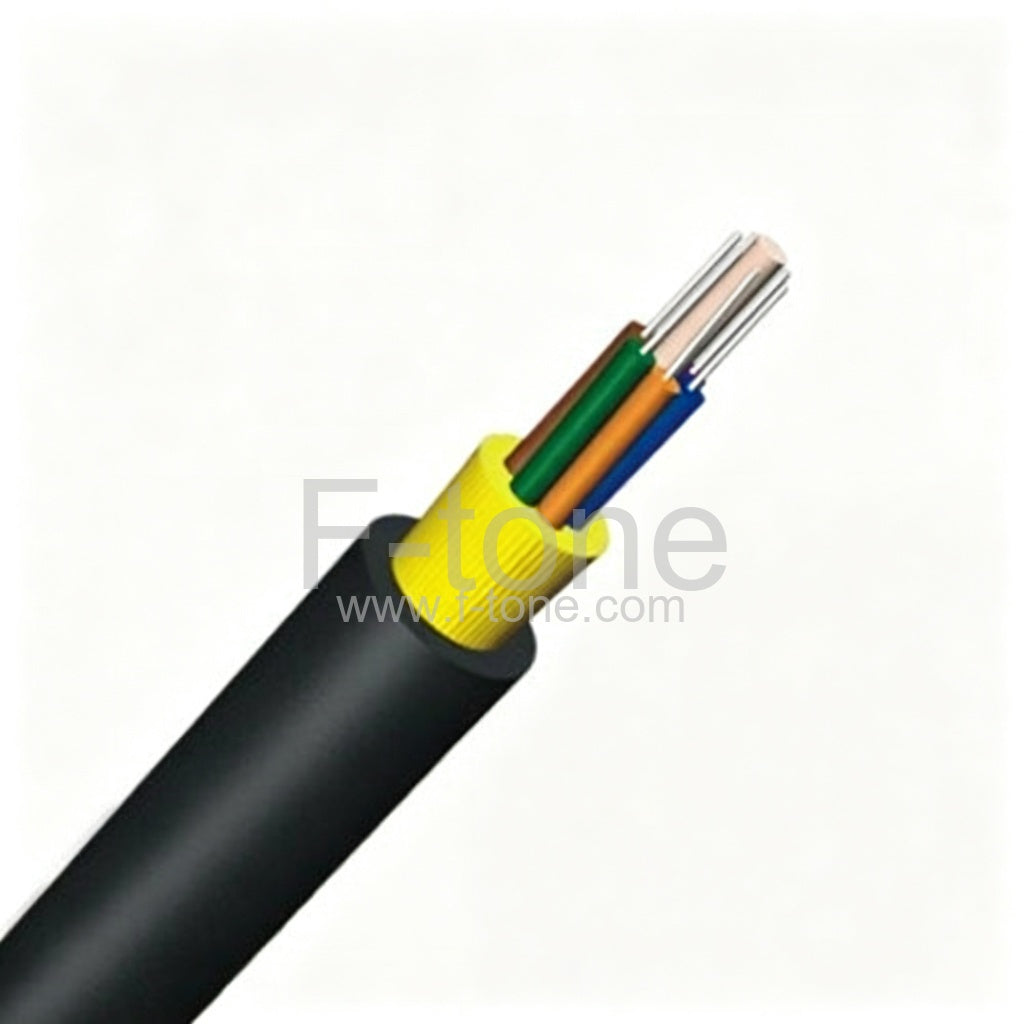

Non-Armored Tactical Fiber Optic Cable with 2 Singlemode Fibers
No-armored field tactical fiber optic use several flame-retardant tight buffer fibers as optional communication medium, the tight buffer fiber wrapped with a layer of Kevlar and the cable is completed with flame retardant jacket. Military tactical field, mining and chemical resistance, and commercial use.
It is composed of high-intensified and flexible FRP, central strength member ensures the intensity and bending features of optical cable. A layer of Kevlar ensures optical fiber with extremely high mechanical intensity. All dielectric structure protect it from electromagnetic influence.
Item Details
Fiber Count : 2 Fibers
Fiber Type: Single-mode G.652B
Cable Structure
Features
Tight buffer fiber ease of stripping. The jacket is anti-aging, anti-abrasion. Kevlar improves the tensile strength and mechanical intensity. All dielectric structure protect it from electromagnetic influence. Good mechanical and environmental characteristics.
Application
Military communication system cable distribution Communication between radars or oil field,mining work place
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross/Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Cable Diameter | Cable Net Weight |
minimum tensile strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
|---|---|---|---|---|---|---|---|---|---|
| (mm) | (Kg/km) | Short term | Long term | short term | long term | Dynamic | Static | ( ) | |
| 2 | 5.2 | 30 | 600 | 1500 | 700 | 1500 | 20D | 10D | -20~+60 |
| 4 | 5.2 | 30 | 600 | 1500 | 700 | 1500 | 20D | 10D | -20~+60 |
| 6 | 6.0 | 37 | 600 | 1500 | 700 | 1500 | 20D | 10D | -20~+60 |
| G.652 | 50/125µm | 62.5/125µm | ||
|---|---|---|---|---|
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 | |||
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
