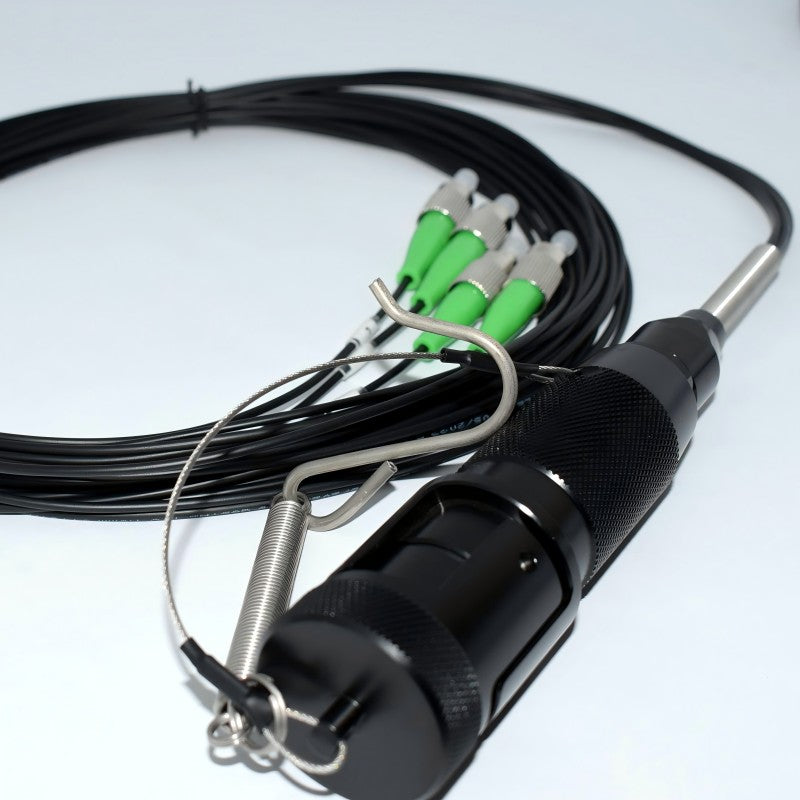

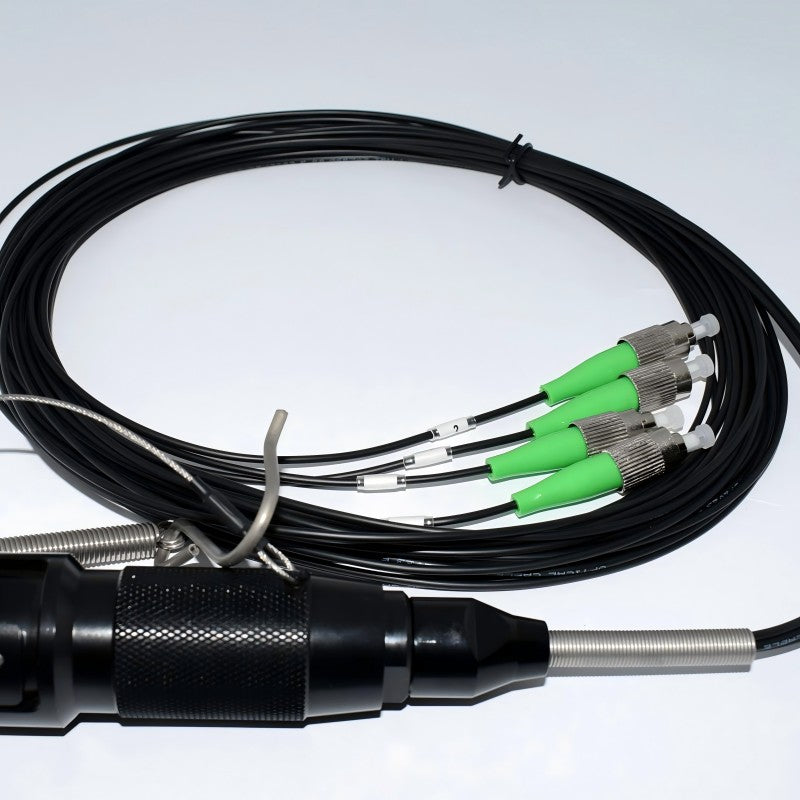

TFOCA Tactical connector (Hermaphroditic) (YZG)

TFOCA Tactical connector (Hermaphroditic) (YZG)

View full details

TFOCA Tactical connector (Hermaphroditic) (YZG)

TFOCA cable assemblies are built for signal transmission over multiple optical fiber elements in hostile and portable applications. Each connector contains two, four fiber in an extra-rugged, hermaphroditic connector shell. The hermaphroditic design enables cables to be mated to either TAC- 2/4 panel connectors or other TAC-2/4cables in any direction providing flexibility for cable link expansion and eliminating cables from being directional misdeployed. These cables have exceptionally low return-loss and attenuation with consistent end-face geometry. TFOCA and tactical cables are available in almost any length and are custom terminated to user specifications.
Application
● Marine equipment communication.
● The airborne equipment.
● The acid and alkali, hydrochloric acid, moisture and harsh environment.
● The military communication and outdoor environment communication.
Features
● 2, 4Channels per Connector.
● Hermaphroditic Design Enables Mating to Cable or Panel Mount Connectors in Either Direction.
● Extra-Rugged Metal Shell with Dust Cap.
● For Mobile Production Applications.
Connection Drawing
TFOCA II Assembly Ordering Info:
[Ordering info example]
（1）TFOCA02P-TFOCA02P-L100m-SM6.0
Both end is TFOCA02P Plug,length is 100m 6.0mm 2core Tactical Armored Optical Cable.
（2）TFOCA04P-TFOCA04P-L100m-SM6.0
Both end is TFOCA04P Plug,length is 100m 6.0mm 4core Tactical Armored Optical Cable.
[Ordering info example]

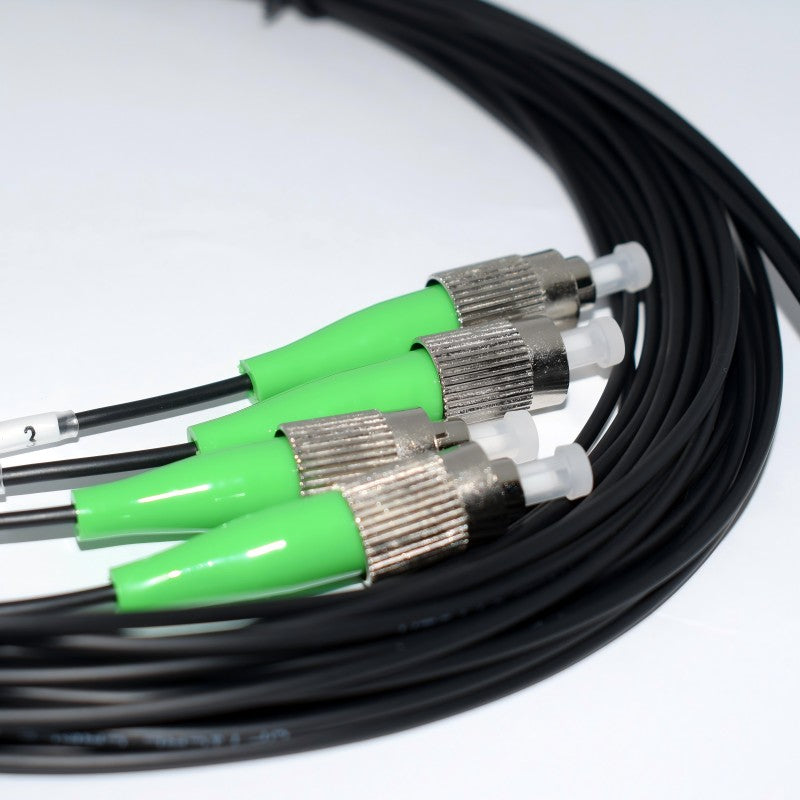

（1）TFOCA02P-2FC-L5/0.3m-SM
End A is TFOCA02P Plug, End B is 2FC connector, length is 5/0.3m, SM armored tactical branch cable, O.D. is 3.0mm

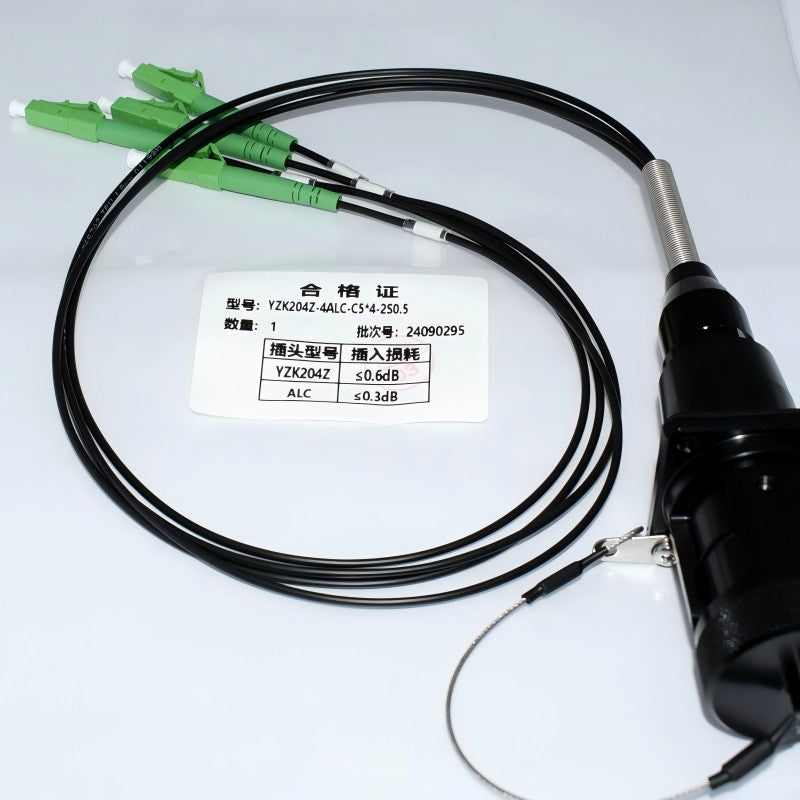

（2）TFOCA04S-4LC-L5/0.3m-SM
End A is TFOCA04S Socket, End B is 4LC connector, length is 5/0.3m, SM armored tactical branch cable, O.D. is 3.0mm


Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
