Part Number: TH-Fi80

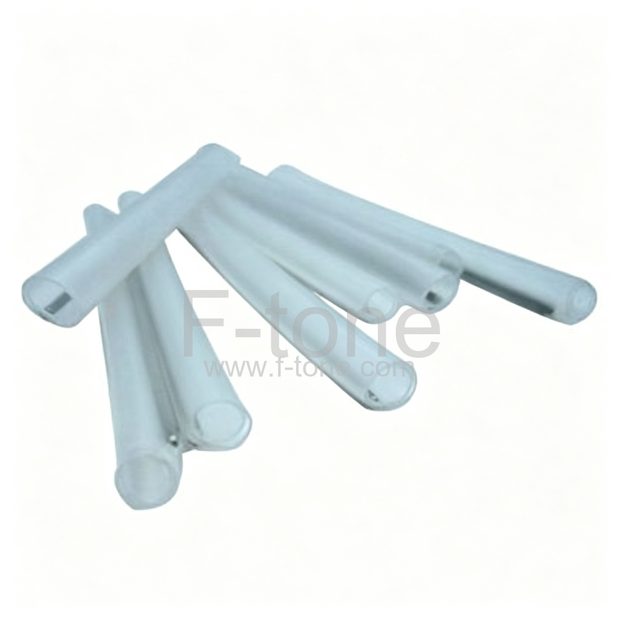

FTTH Fiber Optic Splice Protection Sleeve-Single Fiber 1.0x40mm 50pcs/pkg online sale
Description
This products is made up of cross linked polyolefin heat-shrinkable tubes,hote melt tubes and Stainless steel needle. It is specifically designed for the protection of fiber optical closure
Features
- Protect connection point,improve the mechanical strength,it is most reliable way to protect the fusion.
- Esay to operate,reducing the risk of fiber damage during installation
- Transparent tube,it is easy to see the status of fiber optical closure
- Min.shrinks temperatuer:120℃,shrink very fast and very easy to installation
- Work temperature high (-55°C~100°C), widely used
- Sealing structure let closure have good resistance to temperature and humidity performance.
Ordering Information
| Type | Length of tube | Hot-melt tube | Steel needle | |||
| After recover | Length(mm) | Inside dia | Length(mm) | Inside dia | Length(mm) | |
| FT-1045 | 5.8 | 45 | 3.6 | 45 | 1 | 40 |
| FT-1060 | 5.8 | 60 | 3.6 | 60 | 1 | 55 |
| FT-1040 | 5.8 | 40 | 3.6 | 40 | 1 | 35 |
Quantity per package: 50pcs/pkg
Note: We also provide this kind of protection sleeves with 1000pcs/pkg and good price.
F-tone can provide both domestic and foreign products, and for this kind of fusion splicer assemblies that used in the fiber optic fusion splicing, most of them can be used together with the foreign famous brand fusion splicer. If you want this FTTH Cable Fiber Optic Splice Protection Sleeve FT-1040 in a large quantity, welcome to contact us at service [email protected], we will provide you the best price.
| Item | Test method | Performance |
|---|---|---|
| Temperature | IEC216 | -55°C~100°C |
| Tensile strength | ASTM D 2671 | 18MPa |
| Elongation at break | ASTM D 2671 | 700% |
| Density | ISO R1183D | 0.94g/cm3 |
| Dielectric strength | IEC243 | 25kV/mm |
| Volume resistance | IEC243 | 1015Ω |
| Dielectric constant | IEC243 | 2.5 |
| Longitudinal change | ASTM D 2671 | ±5% |
| Eccentricity | ASTM D 2671 | 105 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
