Part Number: TO56-1273X

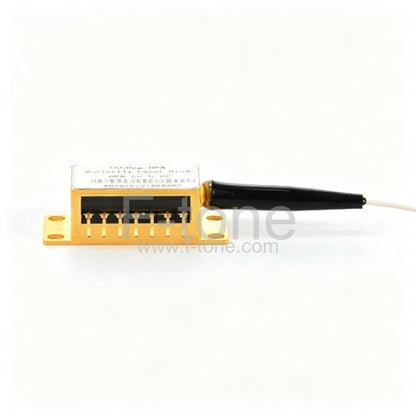

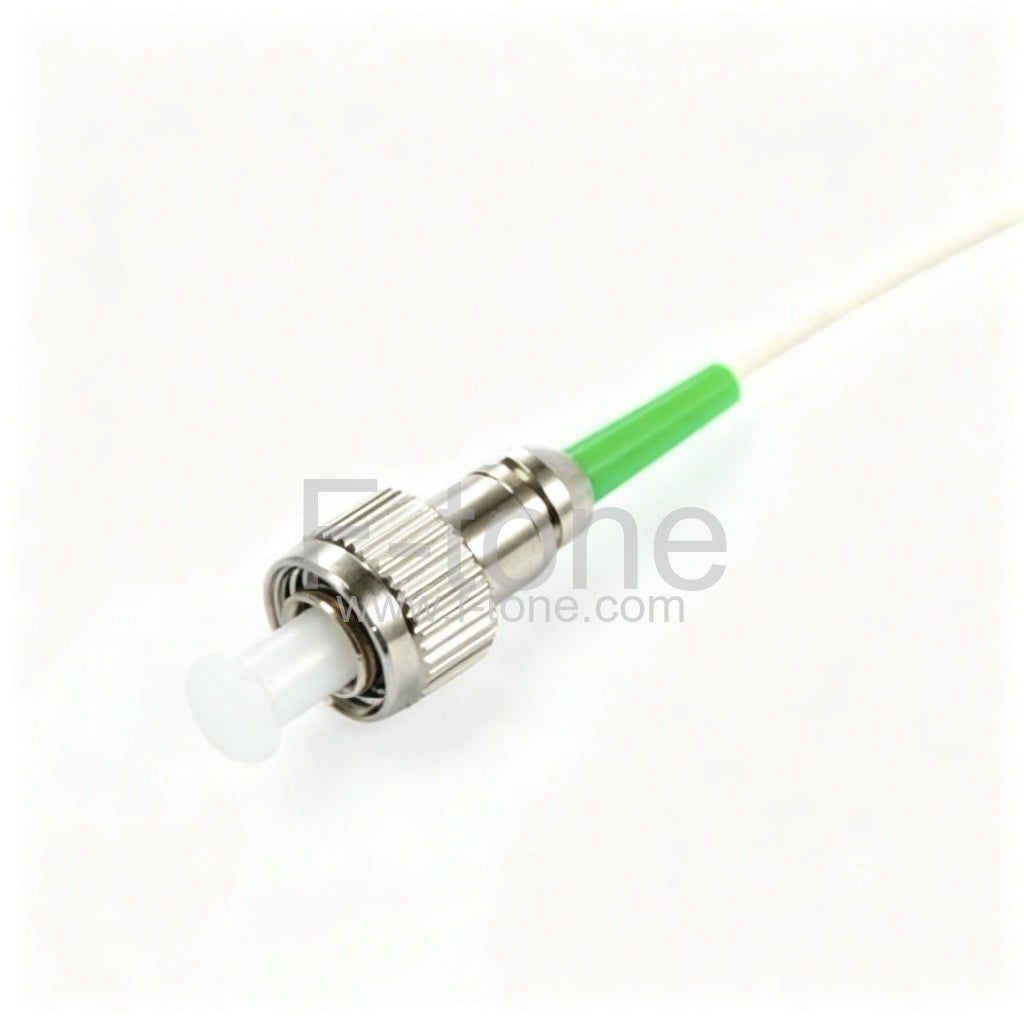

TO56 With Pigtail DFB 2mW SM CWDM Laser Diodes, Pluggable CWDM Laser Diodes:TOSA
Description:
TOSA lasers are 1.27卩m〜1.61 卩m Multiple Quantum Well (MQW) structured distributed-feedback (DFB) laser modules. These laser diodes are built in a pluggable TO56 package with monitoring PIN-PD for fiberoptic communication systems. These modules are ideally suitable for 2.5/10Gbps transmission applications. Among products, 4 products of 1.27|im, 1.29, 1.31|im and 1.33卩m are suitable for 10G transmission. They are Telcordia GR-468 qualified, and in compliance with RoHS directives.
Applications
• Telecommunication transceivers
• Datacom transceivers
• •Fiberoptic sensors
Features
• CWDM laser diode module
• Signal rate up to lOGb/s
• High output power(>2mW)
• LC receptacle TOSA package
Optical and Electric Specifications
| Parameters | Symbol | Test Conditions | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Peak Optical Output Power | pn | IfMth+20mA | 1.8 | 2 | - | mW |
| Threshold Current | Ith | TL=25°C | - | 7 | 15 | mA |
| Laser Reverse Voltage | VLR | 一 | - | - | 2.0 | V |
| Laser Forward Voltage | Vlf | CW | - | 1.2 | 2.0 | V |
| Monitor Reverse Voltage | Vmg | 一 | 3 | 5 | 10 | V |
| Monitor Current | CW, If=Ith+20mA, VRD=5V | 100 | - | 800 | HA | |
| Monitor Dark Current | Id | IF=0mA, VRMON=5V | - | 0.01 | 0.2 | pA |
| Capacitance (PD) | Ct | Vrd=5V, f=lMHz | - | 5 | 15 | pF |
| Center Wavelength | X | CW. IMth+20mA | Xn-3 | Xn | Xn+3 | nm |
| Side-mode Suppression Ratio | SMSR | IfMth+20mA | 35 | - | - | dB |
| Optical Isolation | - | T=25°C | 30 | - | - | dB |
| Tracking Error | TE | Im hold(@PfMmW(25°C)) | -1 | - | 1 | dB |
| Wavelength/ Temperature Coefficient | dA/dT | — | - | 0.09 | - | nm/°C |
| Spectral Width(-20dB) | AX | Po = 2mW, TC =0 to 70°C | - | 0.1 | 1 | nm |
Ordering Information
| TOSA- | □ | □□ | 0 | □ | □ | □ | □ | □ | □ |
|---|---|---|---|---|---|---|---|---|---|
| TOSA- | LD Type | Wavelength | Data | Package type | Pin Out | Output Power | Fiber type | Pigtail length | Connector |
| F:FP | 27:1270 | l:2.5Gb/s | kReceptacle/without Isolator | A:Type A | 1: ImW | 0: SMF-28e | 0:None | 0:None | |
| D:DFB | 29:1290 | 2: lOGb/s | 2: Receptacle/with Isolator | B:Type B | 2:2mW | l:PMF-1310 | 1:50cm | 1:FC/UPC | |
| S:SLED | 3:Pigtail /without Isolator | C:Type C | 5: 5mW | 2:PMF-1550 | 2:100cm | 2:FC/APC | |||
| V: VCSEL | 61:1610 | 4:PigtaiI/with Isolator | D:Type D | A： lOmW | C: Customized | 3:150cm | 3:SC/UPC | ||
| B： 20mW | 4:200cm | 4:SC/APC | |||||||
| C:Customized | 5:LC/UPC | ||||||||
| 6:LC/APC | |||||||||
| C:Customized | |||||||||
|
Example of Ordering Form: TOSA・D2714B2022・01 | |||||||||
| TOSA- | D | 27 | 1 | 4 | B | 2 | 0 | 2 | 2 |
| DFB | 1270nm | 2.5Gb/s | Pigtail/with Isolator | Type B | 2mW | SMF-28e | 100cm | FC/APC | |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
