Part Number: TP-LC-FM

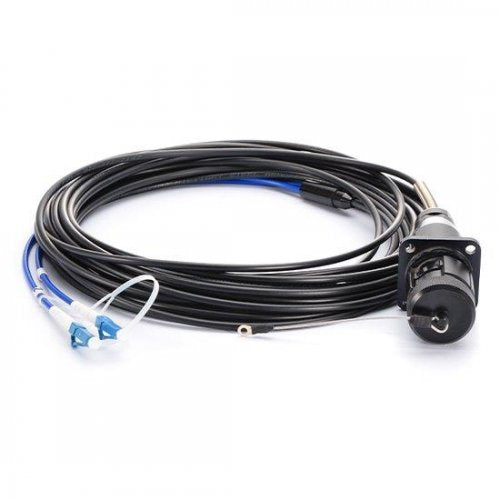

IP67 Waterproof Tactical Fiber Plug for Harsh Environment Adapter to LC SC FC ST Connectors
Tactical Fiber Optics Connector
This connector is hermaphroditically designed for use in environmentally harsh conditions. It could be mounted to the wall of shelter, vehicle terminal box and other cabinets.
Features
Hermaphroditic Design for Versatility---Enables multiple identical assemblies to be connected HermaphroditicDust Cap---Dust caps connect together to prevent dust and moisture penetration during deployment Orientation Pin Design---Ensures fast blind connectionCommercial Ceramic Ferrule Technology---Enables connector to provision multimode and single mode interconnect with a variety of polishes including SPC and UPC Highly-intensified all dielectric compound material shell---Is light and intensified, and EMI freeFixing part on the head---Ensures that the connector could be mounted to the wall of shelter, vehicle terminal box and other cabinetCable length: 1MConnector: tactical fiber optics connector plug to LC/SC/ST/FC
Applications
outdoor bad environment using optical fiber communicationoutdoor communication equipment connectedThe military communication equipment connectedoilfield, mining communication connectionremote wireless base stationvideo monitoring systemoptical fiber sensorrailway signal control applicationintelligent substation communication
Specifications
| Insertion loss | 0.7 dB |
| Return loss | 0.50dB |
| Channel | 2,4 |
| Durability | 500 cycles |
| Operating Temperature | -40 85 |
Kind Note:
As plug should work with socket, this product should be ordered together with Tactical Socket to LC/SC/FC/ST Fiber Optics Cable Connector, thus not be order individually
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
