Part Number: VOA-B-FT01

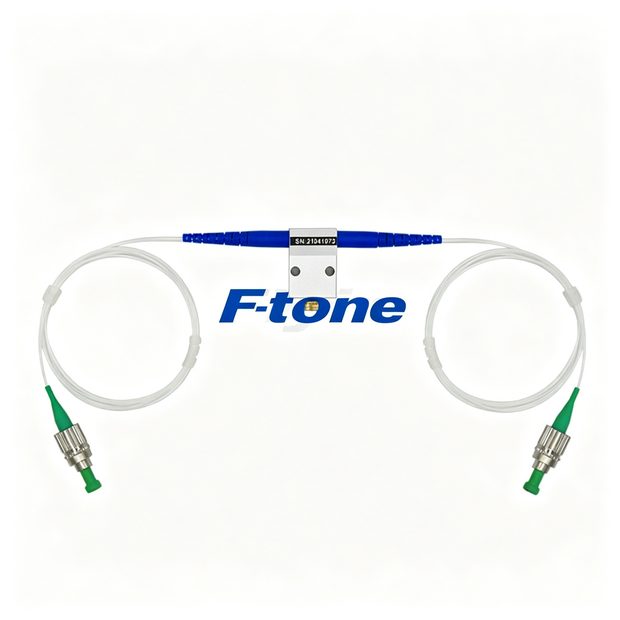

F-tone Variable Fiber Optic VOA In-Line Attenuator 0-60dB
As optical passive devices,F-tone attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
| Fiber Connector | LC/SC/FC/ST | Ferrule Type | Zirconia Ceramic |
|---|---|---|---|
| Cable lengths | 2 meters | Transfer Mode | Singlemode&Multimode |
| Attenuation | 0~60dB | Operating Wavelength(nm) | 1310~1550(SM)/850~1300(MM) |
| Attenuation Accuracy | ±0.8dB | Minimize Insertion Loss | <2.5dB |
| Polarization Dependent Loss | ≤0.2dB | Max Optical Input Power | 200mW |
| Humidity | 95%RH | Operating Temp Range | -40~80°C |
| Storage Temp Range | -40~85°C |
Highlights
- Low insertion loss & Low PDL
- Wide attenuation range 0dB to 60dB
- High stability & high reliability
The application of Imported A - grade ceramic insert and in-line structure enable the product with high stability , good reliability , high transmission speed and low insertion loss.
The F-tone Customized In-Line Fiber Optic Attenuator is able to satisfy your need by customized fiber connector, you can choose LC/SC/FC/ST four kinds fiber connector of your attenuators.
The attenuator from F-tone are designed to give the accurate attenuation required by the connected device and are available in a wide 0dB to 60dB range of attenuation levels by turning the thumb screw.
The product adopts the new environmental protection PVC material, the access port with a dust-proof cap, prevents the communication quality to be affected.
Variable in-line optical attenuators comprises a dual fiber collimator and a reflection component separated by a linear moveable ND filter. They are used to permit dynamic control of optical power levels in a fiber and can be applied to adjust power level of signal in the optical communication at the output of light sources, E/O converters and for the linear or dynamic range of power meter.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
