LC Multimode Variable Fiber Optic Attenuator VOA In-Line Attenuator 0-30dB

LC Multimode Variable Fiber Optic Attenuator VOA In-Line Attenuator 0-30dB

View full details

Part Number: VOA-LCU-MMA-FM

Multimode LC UPC to LC UPC 850nm/1310nm In-line Fiber Variable Optical Attenuator

The multimode in-line variable optical attenuator (VOA) is manually-adjusted, used for precisely balancing the signal strengths in fiber circuits, or balancing an optical signal when evaluating the dynamic range of the measurement system.

Key Features

  • High Precise attenuation value
  • Perfect environmental stability and reliability
  • Low additional loss
  • Flawless end face
  • Wide attenuation range (variable)

Applications

  • Fiber optical telecommunication system
  • FTTH, CATV, LAN
  • Subscriber loop
  • Fiber optical sensor
  • Testing equipment

Technical Specifications

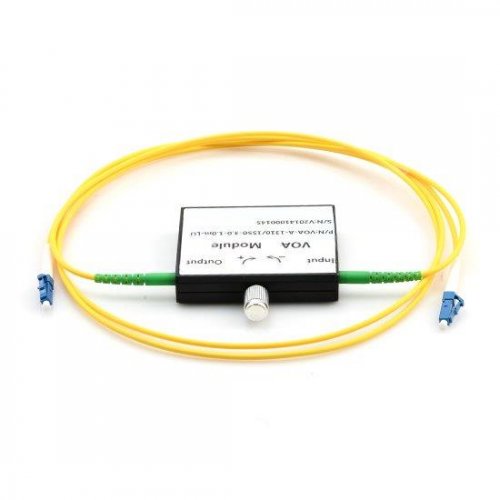

Note: Picture is for LC/UPC to LC/UPC, please take it as reference.

  • Wavelength: 850nm or 1310nm
  • Cable option: 2mm cable
  • Connectors: SC/APC-SC/APC
  • Length: 2 meters
  • Fiber Type: Multimode OM1, OM2, OM3, OM4, OM5
  • Core/Cladding: 9μm /125μm
  • Initial Insertion Loss: < 1.0dB
  • Attenuation Range: 0-30dB
  • Return Loss: UPC: >55dB APC: >65dB
  • Operating Temperature Range: -20°C to +80°C


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
