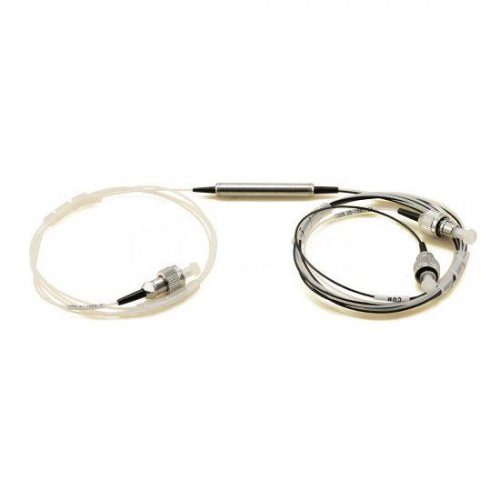

Part Number: WD5565-L-91X
WDM Coupler Singlemode C+U bands 1550/1650nm with 80nm bandwidth 1510~1580nm & 1600~1680nm 1500mW, 900um loose tube, 1m fiber length
WDM - Wavelength Division Multiplexing, a technology that simultaneously transmits multiple channels (wavelength) through a single optical fiber. Three different kinds of wavelength coupling combination are available for CATV systems, EDFA as well as Hi speed optical transmission systems.
F-tone provides WDM for EDFA, WDM for Communication System, Custom-made WDM, 1480/1550nm WDM & 1480/1590nm WDM, 980/1550nm WDM & 980/1590nm WDM, 1310/1550nm WDM, 1310/1550nm HWDM & 1310/1550nm SWDM.
Specification
| Types Items |
1480/1550nm WDM |
1480/1590nm WDM |
980/1550nm WDM |
980/1590nm WDM |
|---|---|---|---|---|
| Operating Wavelength (nm) | 1480 & 1550 | 1480 & 1590 | 980 & 1550 | 980 & 1590 |
| Bandwidth (nm) | ±5 | ±15 | ||
| Insertion Loss (dB) | ≤0.25 (0.20 typical) | ≤0.35 (0.20 typical) | ≤0.15 (0.06 typical) | |
| Isolation (dB) | ≥16 | ≥13 | ≥20 | |
| Polarization Dependent Loss (dB) |
≤0.1 |
|||
| Operating Temperature (°C) | -40 to +85 | |||
| Thermal Stability (dB/°C) | ≤0.002 | |||
| Directivity (dB) | ≥60 | |||
| Configuration | 1x2 or 2x2 | |||
Packaging Information:
For 1480/1550nm WDM & 1480/1590nm WDM:
| Lead Length | 1 meter | |
|---|---|---|
| Lead Type | 250µm bare fiber | 900µm fiber |
|
Package Dimensions (mm) |
Tube 3.0 x 55 |
Tube 3.0 x 70 Module 190.5 x 114.3 x 25.4mm |
For 980/1550nm WDM & 980/1590nm WDM:
| Lead Length | 1 meter | |
|---|---|---|
| Lead Type | 250µm bare fiber | 900µm fiber |
|
Package Dimensions (mm) |
Tube 3.0 x 40 |
Tube 3.0 x 54 Module 190.5 x 114.3 x 25.4mm |
Ordering Information:
For 1480/1550nm WDM & 1480/1590nm WDM:
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
