8K CCTV Tester, H.265 HD IP camera tester

Part Number: WL-IPC-1910

Multi-functions CCTV Tester, IPC-1910 8K H.265 HD Camera Tester

4 inch ALL IN ONE CCTV Tester

● 4 inch IPS touch screen, 800 x 480 resolution

● H.265/H.264, 8K video display via mainstream

● 8MP CVI/ TVI/ AHD camera test*(Optional)

● Auto HD, auto recognize HD coax camera type and resolution*(Optional)

● Analog camera test, PAL/NTSC auto adapt*(Optional)

● DC12V 3A, 48V PoE 25.5W power output

● Rapid ONVIF, create the test report and modify IP address

● High brightness LED light

● UTP cable test, detect the near-end, mid-end and far-end fault point

of the RJ45 cable plug

● RJ45 TDR cable test, cable quality test

The 4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 800*480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

— CCTV system installation and maintenance

— Network cabling project installation and maintenance

— Dome camera, IP TVI CVI AHD 4K H.265 camera testing

— Video transmission channel testing

— PTZ controller

Camera test:

● 4 inch IPS touch screen, 800*480 resolution

● H.265 & H .264 IP, 8K video display via mainstream

● Analog camera test, PAL/NTSC auto adapt*(Optional)

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu*(Optional)

● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(Optional)

● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu*(Optional)

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu. (Optional)

● Rapid ONVIF, Auto log in and display image, create testing report

● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. Support reset password and set video occlusion alarm of HIKVISION cameras.

● Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name.

● IP and analog display image at the same time

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

● DC12V/3A power output, camera can be powered from DC 12 Voltage.

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time *(Optional)

Other Functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● TesterPlay: Tester, android version mobile phone and PC display at the same time

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Customers self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● SD card slot, support up to 32G, to save video, picture and other files

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V / 2600mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 9 hours

Note: “*” sign mean functions are customizable

The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to contact us

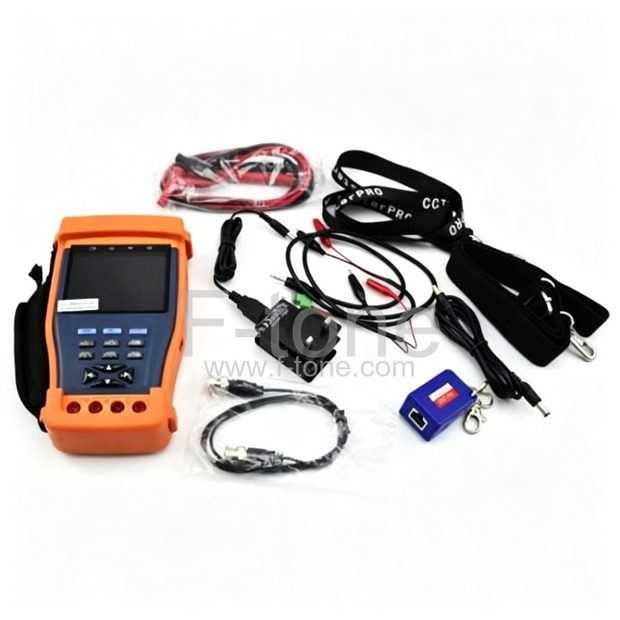

1) Tester

2) Network cable tester

3) Adaptor DC12V 1A

4) lithium ion battery (7.4 V / 2600mAh)

5) Tool bag / DC Power cable/BNC cable/ RS485 cable/ Audio cable/ Safety cord

6) Wrist belt
