Part Number: WP-SX-SM-IP67SC-E20A
Waterproof Fiber Patch Cable, IP67 SC to E2000/APC, Simplex, Singlemode， 1M
Waterproof fiber optic patch cables are designed to fit for outdoor applications. The strong PU jacket and armored structure can resist high temperature and suit to use in harsh environment. F-tone provides wide degree flexibility on Waterproof fiber optical cables, including duplex, simplex, 12 fibers and 24 fibers various kinds of connect interfaces optional such as LC/SC/FC/ST/MPO connectors and so on.
IP67 SC to standard LC/SC/ST/FC simplex singlmode waterproof fiber patch cable with IP-SC on one end of the cable and standard LC/SC/FC/ST connector on the other end. The connector is designed to exceed the requiremnets of ODVA, and meet IP66/67 environmental sealing ratings and are the ideal choice for a low cost and easy to use solution in industrial, fiber to the Antenna, or any other harsh environmental applications. The IP-SC connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. IP67 SC - LC/SC/FC/ST singlemode simplex waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh environment.
| Product Type | Waterproof Cable | Fiber Type | Singlemode OS2 9/125 |
|---|---|---|---|
| Connector1 | IP67 SC | Connector2 | LC/SC/ST/FC |
| Trunk Diameter | 4.0mm | Branch Diameter | 3.0mm |
| Insertion Loss | 0.20dB | Return Loss | 50dB |
| Storage Temperature | -55C-85C | Operating Temperature | -40C-70C |
International Protection (IP) Rating
Features
The Application of Waterproof Fiber Optic Patch Cable
IP67 SC Connectors: socket & plug

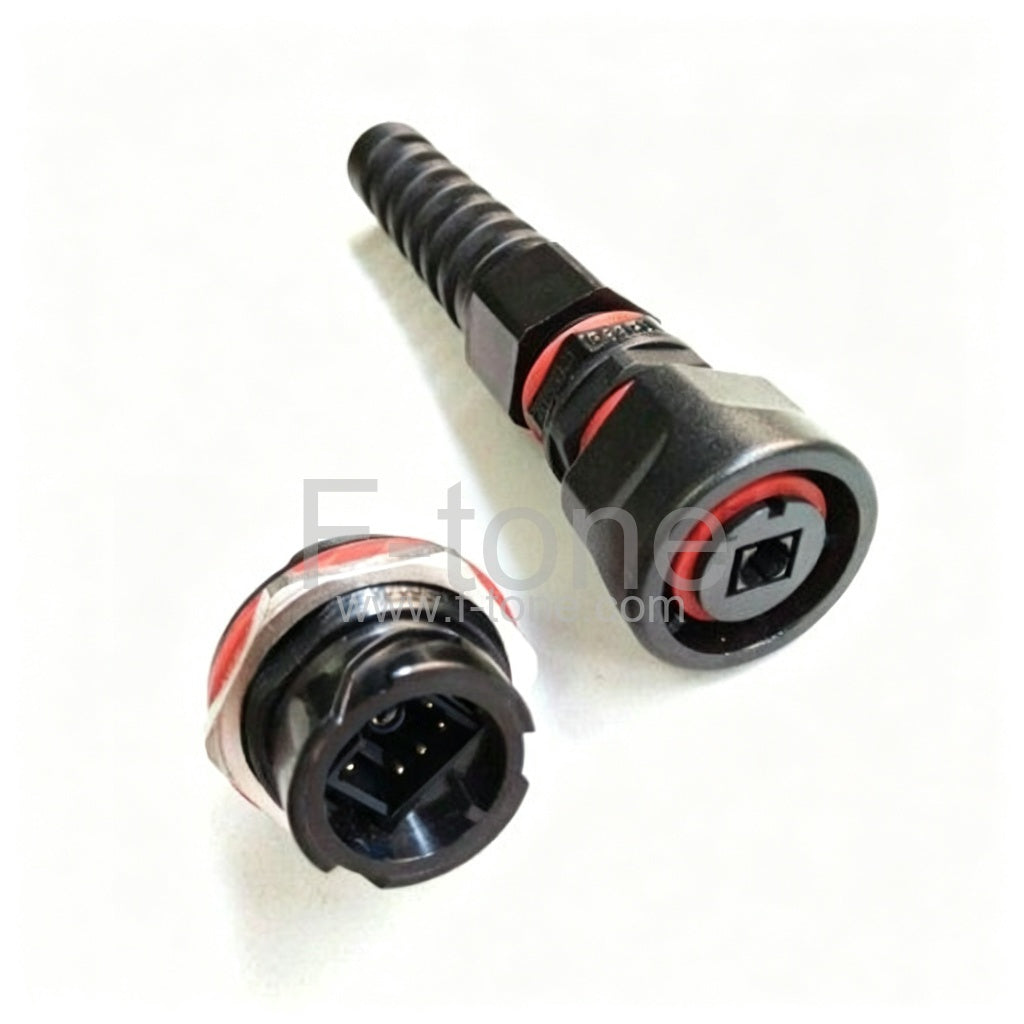

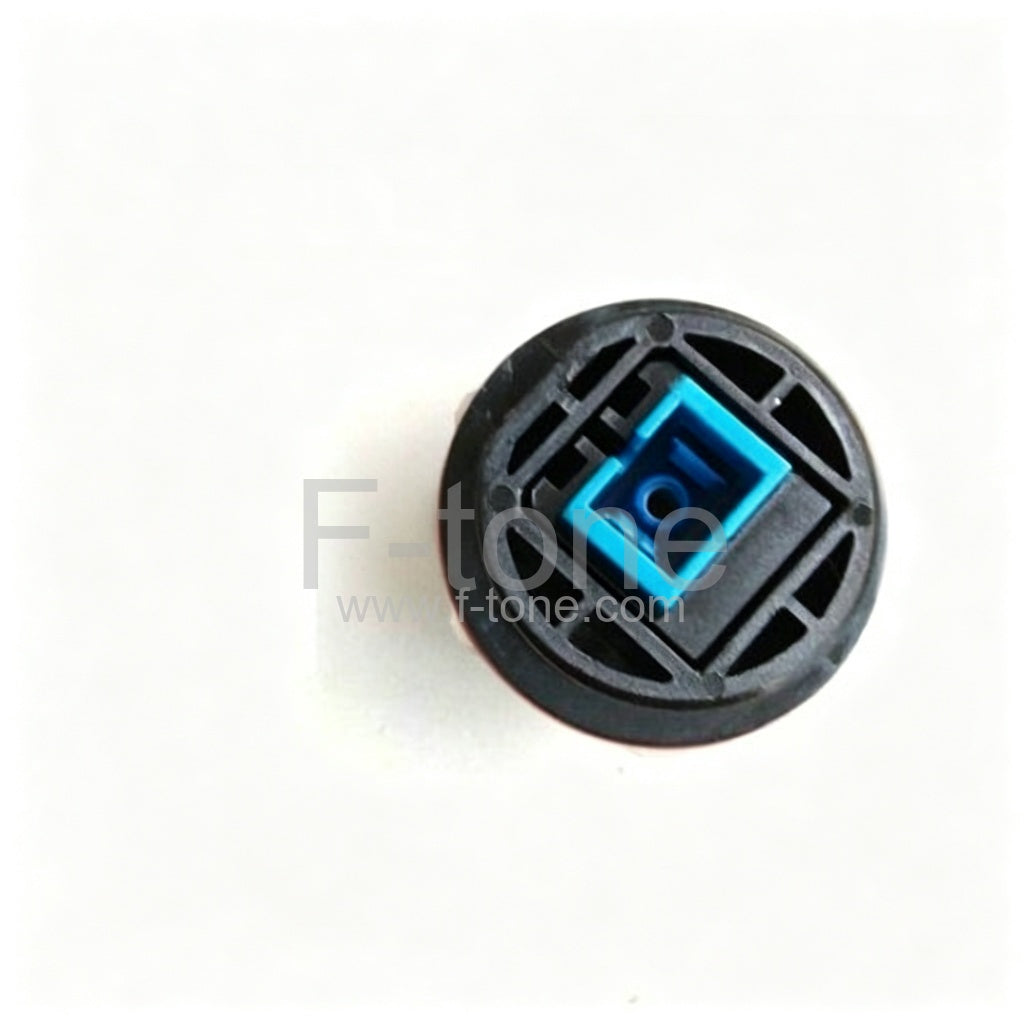

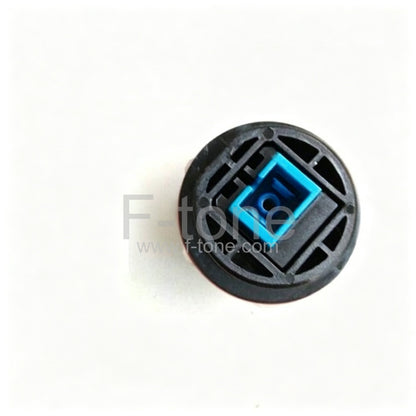

There are two types of IP67SC waterproof connector: IP67SC plug (with standard SC connectors) and IP67SC Socket (with SC slot), the plug of one cable and the socket of the other cable can be connected to extend the cable length.
IP67 SC Component Details
In F-tone, IP67SC cable connector is the SC connector whose optical channels are based on the convention with simplex, singlemode APC. The aluminum frame has a spring-loaded push-pull locking mechanism and possesses the excellent cable retention because of an aramid yarn within the cable. When there is no connection by the automatically operated sealing-cover, both chassis and connector can protect against dirt and dust. In addition to the automatic sealing shutters, rubber outer sheath and steel, the automatic protective cap is fitted for using when unconnected. When connected or capped, the sealing connection environment amounts to IP67.
Waterproof Optic Patch Cable Performance
| Fiber Type | Singlemode | Multimode |
|---|---|---|
| Insertion Loss | 0.20dB | 0.30dB |
| Return Loss | 50dB | 35dB |
| Storage Temperature | -55C ~85C | -55C ~85C |
| Operating Temperature | -40C ~70C | -40C ~70C |
| Repetition Test(Additional Loss) | 0.1dB | 0.1dB |
| Repetition Test(Return Loss Variability) | <5dB | <5dB |
| Temperature Stability(Additional Loss) | 0.2dB | 0.2dB |
| Temperature Stability(Return Loss Variability) | <5dB | <5dB |
| Bump Resistance | 4000 bumps @ 40g acceleration | 4000 bumps @ 40g acceleration |
| Tensile Strength | Tensile of 1500N-cable dependent | Tensile of 1500N-cable dependent |
| Free Fall Resistance | 500 falls onto concrete from 1.2M height | 500 falls onto concrete from 1.2M height |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
