Part Number: WP-SX-SM-IP67SC-IP67SC
IP67 SC to IP67 SC Simplex Singlmode Waterproof Fiber Patch Cable
Waterproof fiber optic patch cables are designed to fit for outdoor applications. The waterproof fiber optic cables are with strong PU jacket and armored structure, they can resist high temperature and suit to use in harsh environment. F-tone provides wide degree flexibility on Waterproof fiber optical cables, including Duplex, Simplex, 12fibers and 24fibers various kinds of connect interfaces optional such as LC/SC/FC/ST/MPO connectors and so on.
IP67 SC to IP67 SC Simplex Singlmode Waterproof Fiber Patch Cable has the IP-SC connector which is designed to exceed the requiremnets of ODVA, the connector meet IP66/67 environmental sealing ratings and are the ideal choice for a low cost and easy to use solution in industrial, Fiber to the Antenna, or any other harsh environmental applications. The IP-SC connector is designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. IP67SC- IP67SC Singlemode Simplex Waterproof fiber optical cable will not get damage even stepped, and are anti-rodents, and suit to use in harsh environment.
International Protection(IP) Rating
Features & Application

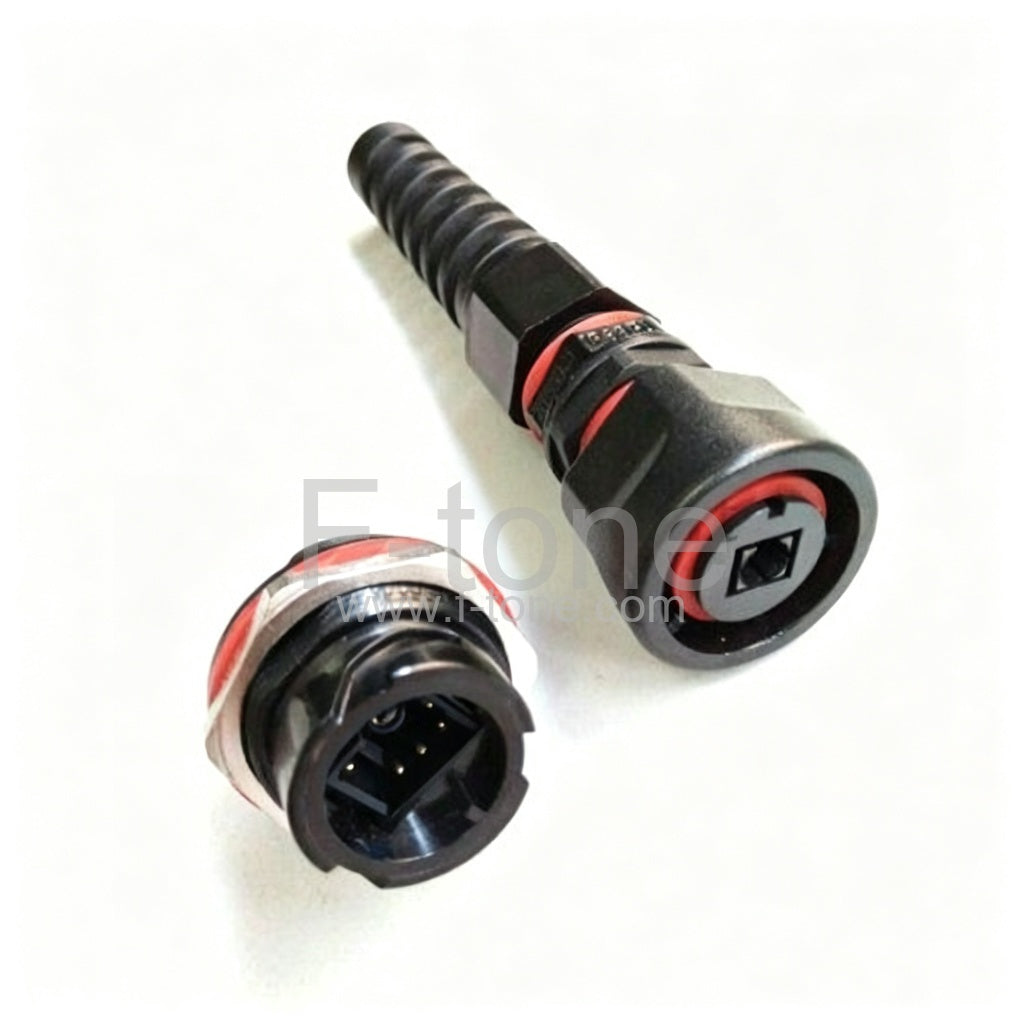

IP67SC Connectors: socket & plug
There are two types of IP67SC weatherproof connector: IP67SC plug (with standard SC connectors) and IP67SC Socket (with SC slot), the plug of one cable and the socket of the other cable can be connected to extend the cable length.

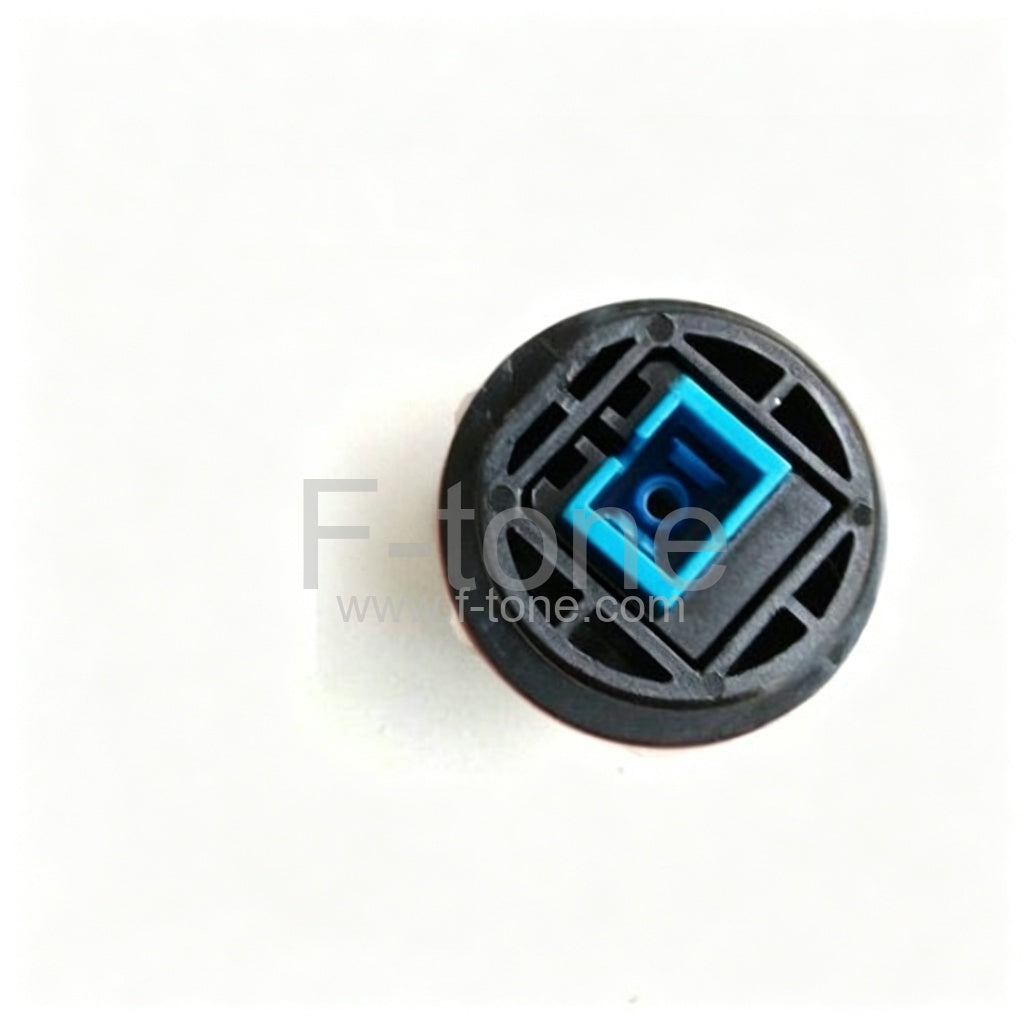

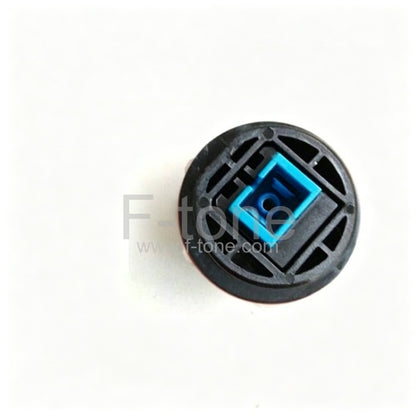

IP67 SC Component Details
F-tone IP67SC cable connector accommodates simplex, singlemode APC, optical channels based on the conventional and proven SC connector. The Aluminum housing, features a spring-loaded push-pull locking mechanism and excellent cable retention utilising an aramid yarn within the cable. Fibres within both chassis and cable connectors are protected against dirt and dust when unmated by an automatically operated sealing-cover. In addition to the automatic sealing shutters, a rubber-coated, steel, latching protective cap is fitted for use when unmated,.When mated or capped, the connection is environmentally sealed up to IP67.
Specification
| Item | Type | Parameter |
|---|---|---|
| Insertion Loss | SM | ≤0.20dB |
| MM | ≤0.30dB | |
| Return Loss | SM | ≥50dB |
| MM | ≥35dB | |
| Repetition Test | Additional Loss≤0.1dB, Reture Loss Variability<5dB | |
| Temperature Stability(-40℃～85℃) | Additional Loss≤0.2dB, Reture Loss Variability<5dB | |
| Free fall resistance | 500 falls onto concrete from 1.2M height | |
| Bump resistance | 4000 bumps @ 40g acceleration | |
| Tensile Strength | Tensile of 1500N, cable dependent | |
| Operating temperature | -40 to +70°C | |
| Storage temperature | -55 to +85°C |
| Item | Type | Parameter |
|---|---|---|
| InsertionLoss | SM | ≤0.20dB |
| MM | ≤0.30dB | |
| ReturnLoss | SM | ≥50dB |
| MM | ≥35dB | |
| RepetitionTest | AdditionalLoss≤0.1dB,RetureLossVariability<5dB | |
| TemperatureStability(-40℃～85℃) | AdditionalLoss≤0.2dB,RetureLossVariability<5dB | |
| Freefallresistance | 500fallsontoconcretefrom1.2Mheight | |
| Bumpresistance | 4000bumps@40gacceleration | |
| TensileStrength | Tensileof1500N,cabledependent | |
| Operatingtemperature | -40to+70°C | |
| Storagetemperature | -55to+85°C |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
